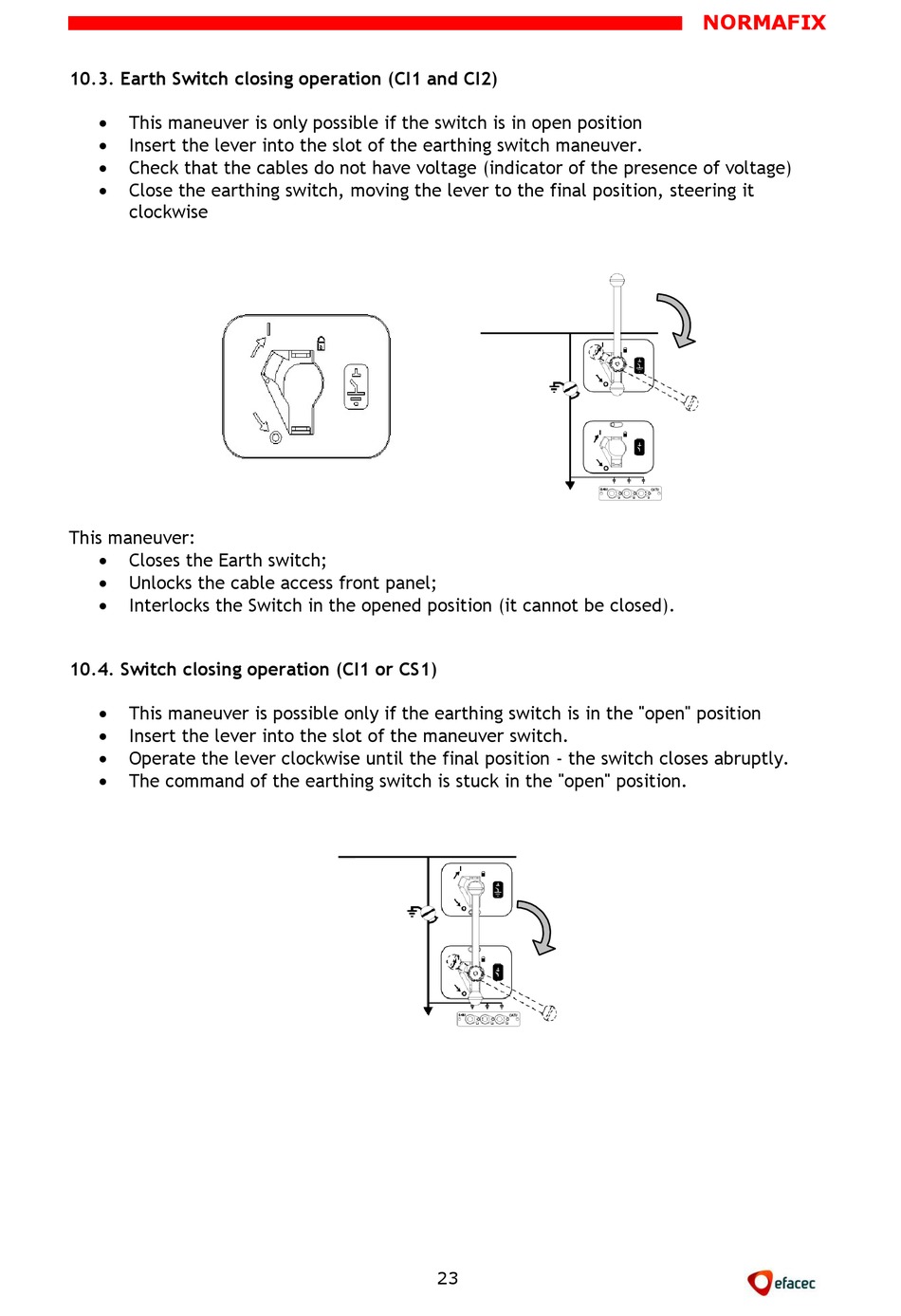

10.3. Earth Switch closing operation (CI1 and CI2)


This maneuver is only possible if the switch is in open position

Insert the lever into the slot of the earthing switch maneuver.

Check that the cables do not have voltage (indicator of the presence of voltage)

Close the earthing switch, moving the lever to the final position, steering it
clockwise
This maneuver:

Closes the Earth switch;

Unlocks the cable access front panel;

Interlocks the Switch in the opened position (it cannot be closed).

10.4. Switch closing operation (CI1 or CS1)


This maneuver is possible only if the earthing switch is in the "open" position

Insert the lever into the slot of the maneuver switch.

Operate the lever clockwise until the final position - the switch closes abruptly.

The command of the earthing switch is stuck in the "open" position.
