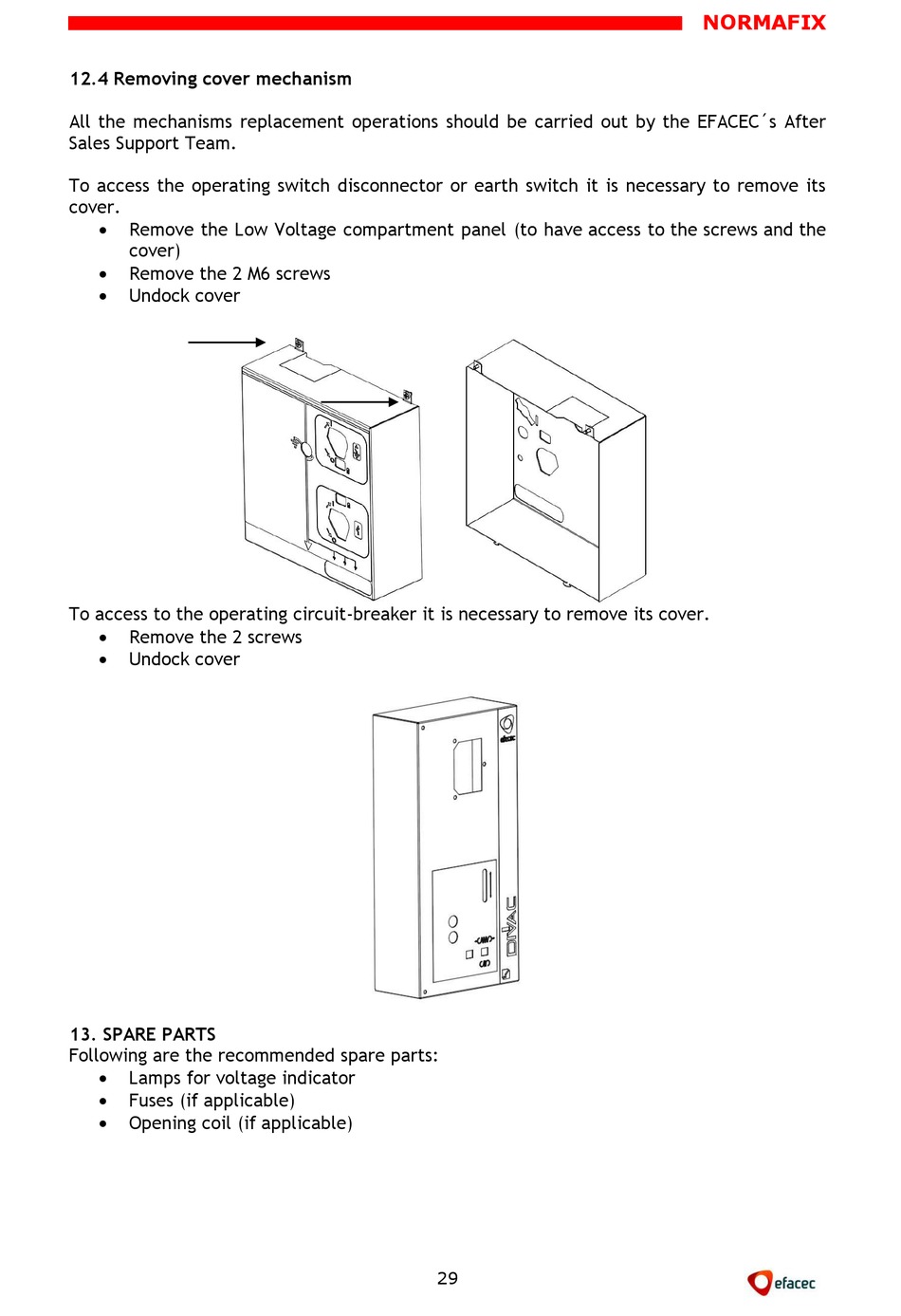

12.4 Removing cover mechanism

All the mechanisms replacement operations should be carried out by the EFACEC´s After
Sales Support Team.
To access the operating switch disconnector or earth switch it is necessary to remove its
cover.

Remove the Low Voltage compartment panel (to have access to the screws and the
cover)

Remove the 2 M6 screws

Undock cover
To access to the operating circuit-breaker it is necessary to remove its cover.

Remove the 2 screws

Undock cover

13. SPARE PARTS

Following are the recommended spare parts:

Lamps for voltage indicator

Fuses (if applicable)

Opening coil (if applicable)
