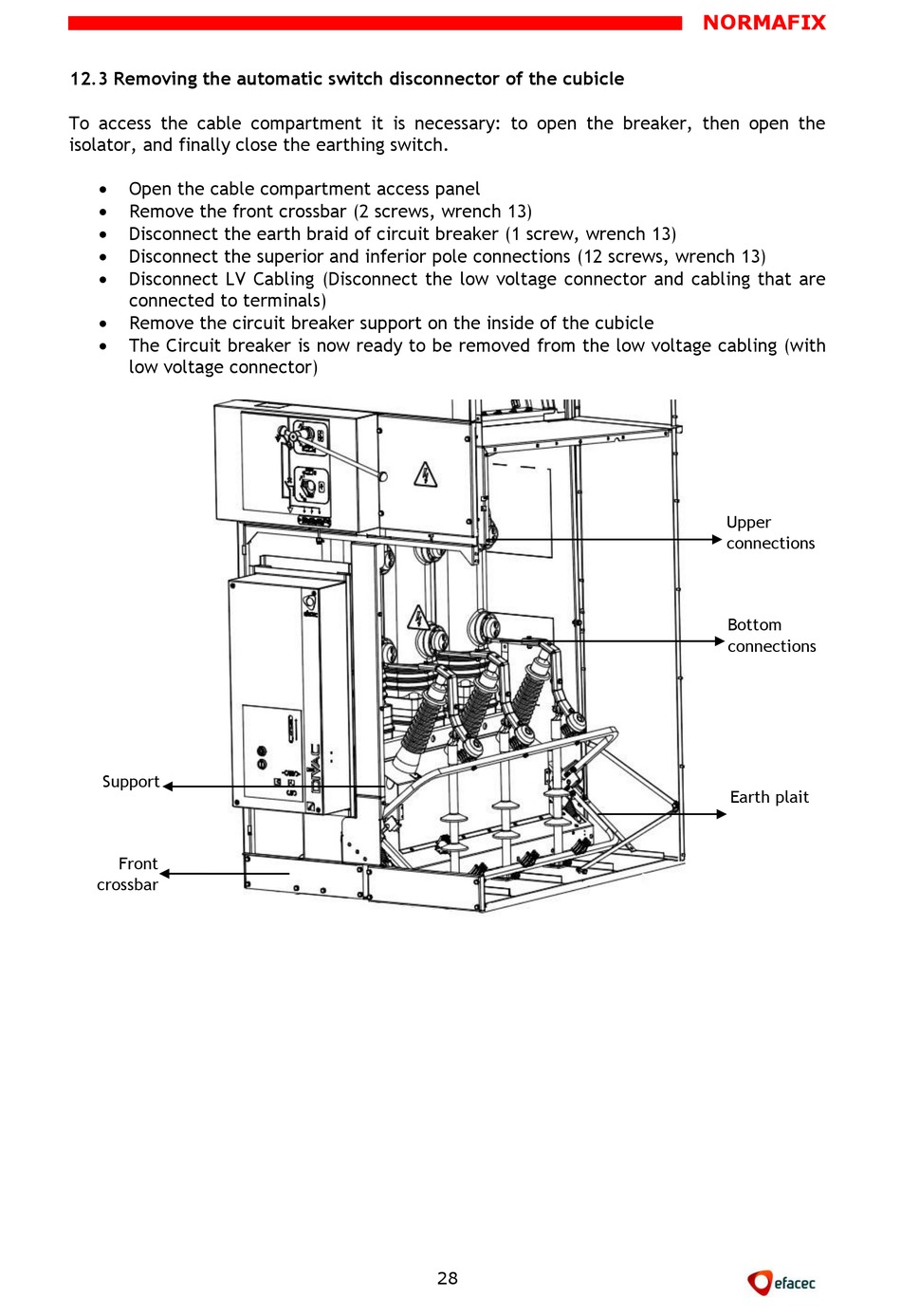

12.3 Removing the automatic switch disconnector of the cubicle

To access the cable compartment it is necessary: to open the breaker, then open the
isolator, and finally close the earthing switch.

Open the cable compartment access panel

Remove the front crossbar (2 screws, wrench 13)

Disconnect the earth braid of circuit breaker (1 screw, wrench 13)

Disconnect the superior and inferior pole connections (12 screws, wrench 13)

Disconnect LV Cabling (Disconnect the low voltage connector and cabling that are
connected to terminals)

Remove the circuit breaker support on the inside of the cubicle

The Circuit breaker is now ready to be removed from the low voltage cabling (with
low voltage connector)
Support
Front
crossbar
28
NORMAFIX
Upper
connections
Bottom
connections
Earth plait
