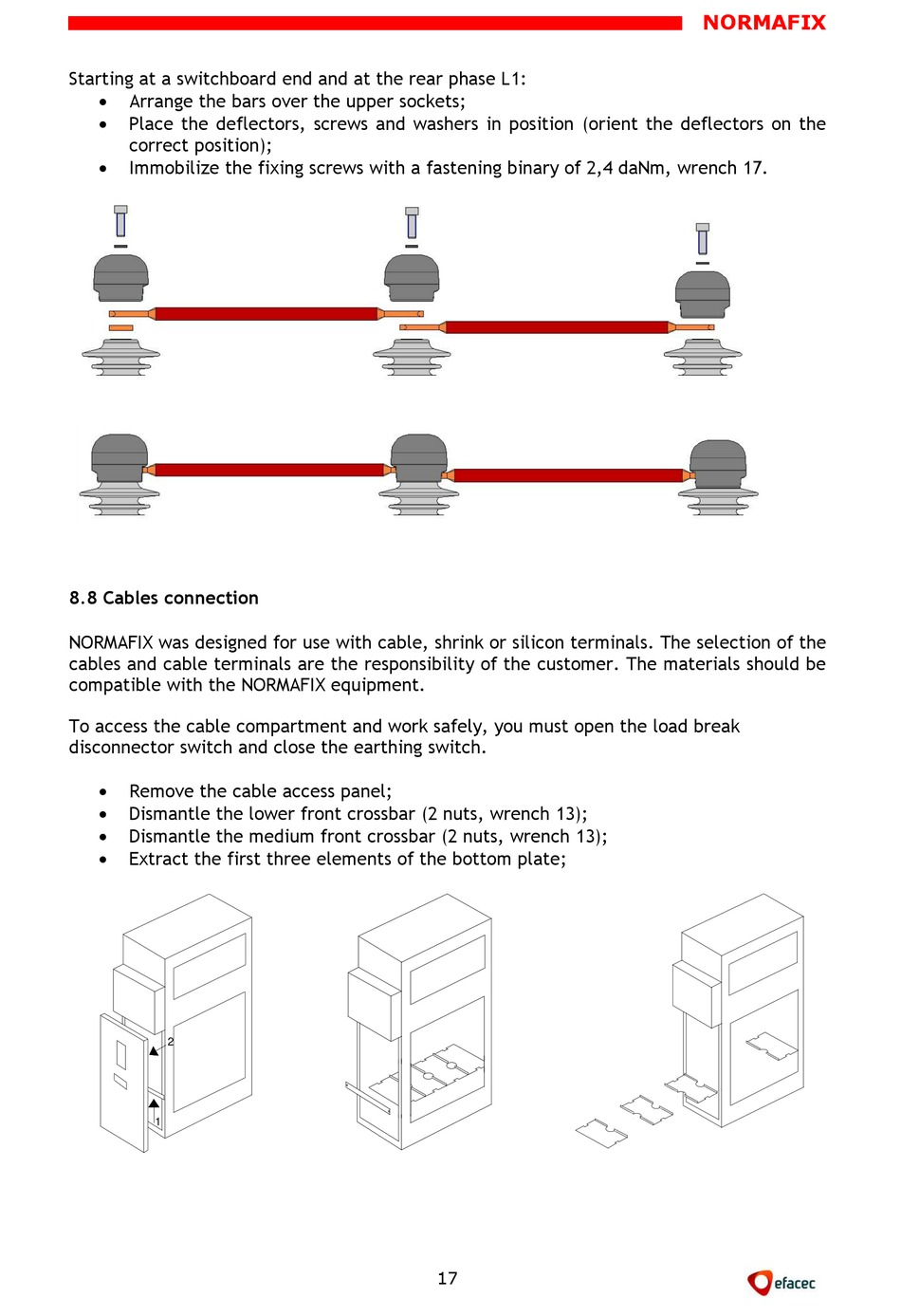

Starting at a switchboard end and at the rear phase L1:

Arrange the bars over the upper sockets;

Place the deflectors, screws and washers in position (orient the deflectors on the
correct position);

Immobilize the fixing screws with a fastening binary of 2,4 daNm, wrench 17.

8.8 Cables connection

NORMAFIX was designed for use with cable, shrink or silicon terminals. The selection of the
cables and cable terminals are the responsibility of the customer. The materials should be
compatible with the NORMAFIX equipment.
To access the cable compartment and work safely, you must open the load break
disconnector switch and close the earthing switch.

Remove the cable access panel;

Dismantle the lower front crossbar (2 nuts, wrench 13);

Dismantle the medium front crossbar (2 nuts, wrench 13);

Extract the first three elements of the bottom plate;
