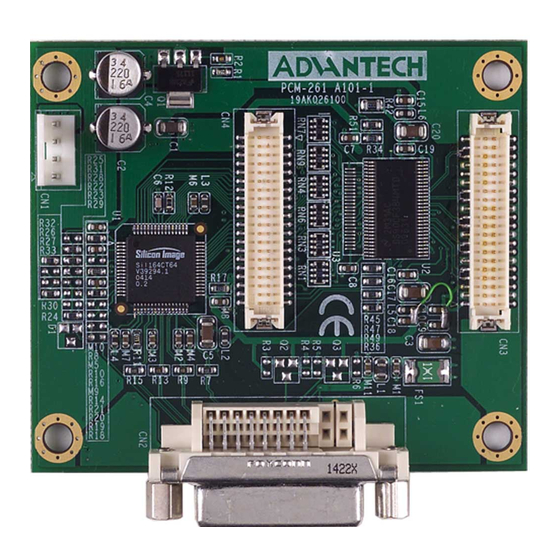

Advantech PCM-261 Startup Manual

PCM-261
Startup Manual
Packing list
Before you begin installing your card, please make sure
that the following materials have been shipped:
• 1 PCM-261
• 1 Startup manual
If any of these items are missing or damaged, contact
your distributor or sales representative immediately.
Note 1: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/read-
step.html(Acrobat is a trademark of Adobe.)
Optional Accessory:
• 1700000851:24bit TTL to 24 bit TTL cable
• 1700000840:18bit LVDS to 18 bit LVDS FOR 855GME
• 1700000853:24 bit LVDS to 24 bit LVDS
• 1700000827:18 bit LVDS T0 18 bit LVDS
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/eservice/
This manual is for the PCM-261 series Rev. A1.
Part No. 2006026101
1 PCM-261Startup Manual
LVDS/TTL to DVI
2nd Edition
Jan. 2005
Module
Specifications
• Chipset: Silicon Image SiI 164
• LVDS Input: 24,18bit LVDS
• Resolution:1024 x 768, 800 x 600, 640 x 480
• TFT Connector:Hirose or Pin Header
• External Power:+5V
• LCD connector Hirose or pin header
Mechanical and Environmental
• Dimensions (L x W): 72 x 62 mm (3.8" x 3.5")
• Weight: 30g
• Operating Temperature: 0 ~ 60°C(32~140°F)
• Storage temperature: -40 ~ 85°C(-40~185°F)
• Operating Humidity: 0%~90% ralative humity,non-con-
densing
• Power Supply Voltage: 5V
• Power Requirements: 5V @100mA
Features
LVDS/TTL to DVI panel transfer module
Suitable for TFT LCD Panel Adapter
P/N:2006026101
