Advantech PCM-233A Startup Manual

PCM-233A SATA to IDE module for SATA Device
Startup Manual

Packing List

Before you begin installing your card, please make sure
that the following materials have been shipped:
1. 1 PCM-233
2. 1 Startup manual
If any of these items are missing or damaged, contact your
distributor or sales representati ve immediately.
Note: Acrobat Reader is required to vi ew any PDF
file. Acrobat Reader can be d ownloaded at:
www.adobe.com/Prodindex/acrobat/read- step.
html(Acrobat is a trademark of Adobe.)

Specifications

• Chipset: ACARD ARC772N
• PATA Connector: 40-pin IDE Connector
• SATA Connector: SATA 7+15P Connector
• Power Connector: 4-pin Power Connector
• External Power: +5 V, +12 V

Mechanical and Environmental

• Dimensions (L x W): 98 x 23 mm (3.8" x 0.9")
• Weight: 30 g
• Operating Temperature: 0 ~ 60° C(32~140° F)
• Storage Temperature: -40 ~ 85° C(-40~185° F)
• Operating Humidity: 0%~90% relative humidity,
non-condensing
• Power Supply Voltage: +5 V, +12 V
• Power Requirements: 3.3 V, max 37 mA
For more information on this and other Ad vantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/epc
For technical support and service, please visit our
support website at:
http://service.advantech.com.tw/eservice/
This manual is for the PCM-233A series Rev. A1.
Part No. 2006233A00
(Digital) 1.8 V, max 150 mA
(Analog) 1.8 V, max 102 mA
1st Edition,
June 2008

Features

• Convert SATA hard drive or storage device to IDE
interface
• Suitable for 3.5"/5.25 SATA Device
• PCM-233A dimension good fit with 3.5" SATA device

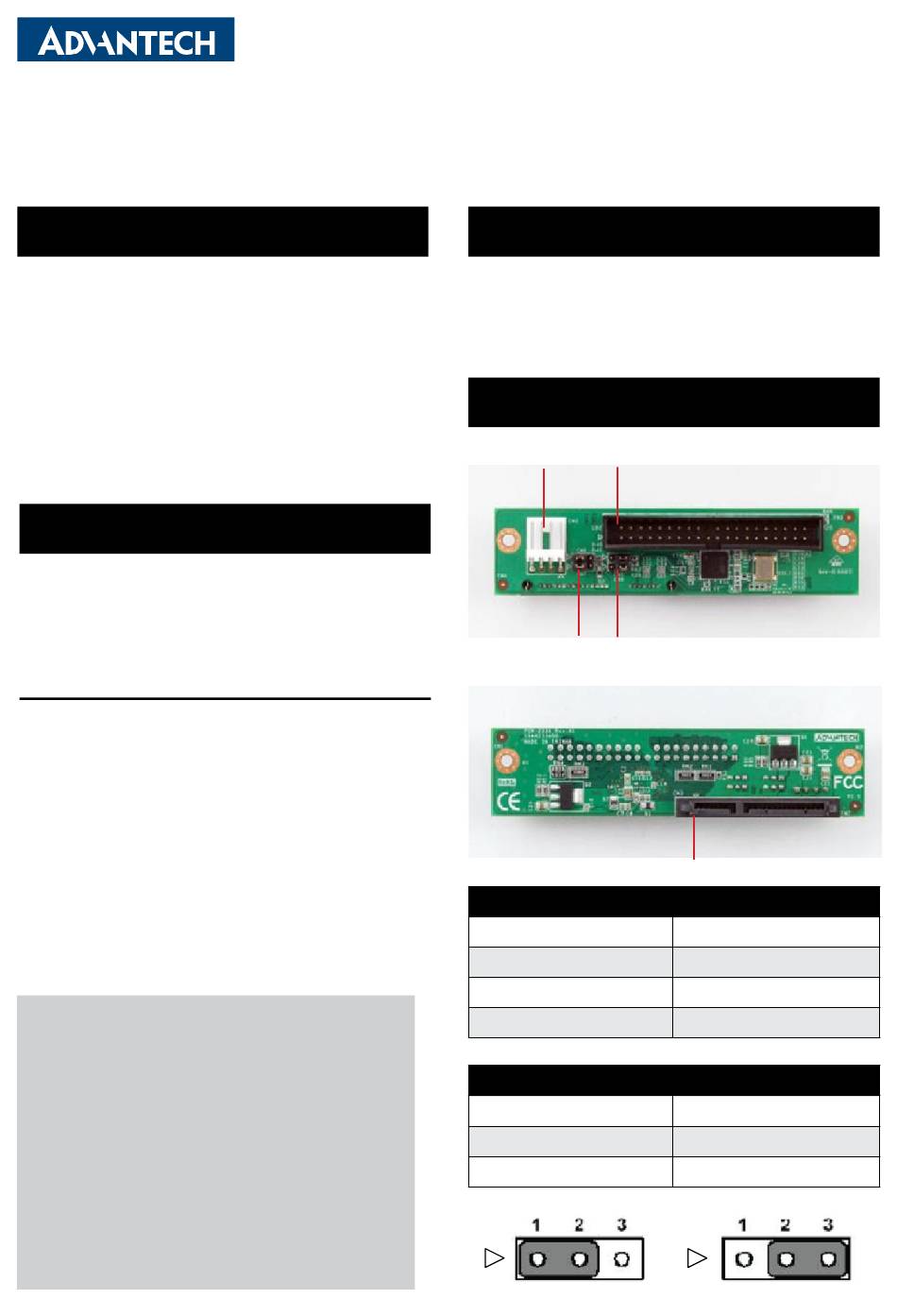

Connectors & Jumpers
CN1
CN2
CN9
CN8
CN7 CN5

Connectors

Label
CN1
CN2
CN3

Jumpers

Label
CN5
CN7~9
PCM-233A Startup Manual
CN3
Function
40-pin IDE Connector
Power Connector
SATA Connector
Function
Master/Slave Select
Ultra DMA Speed
