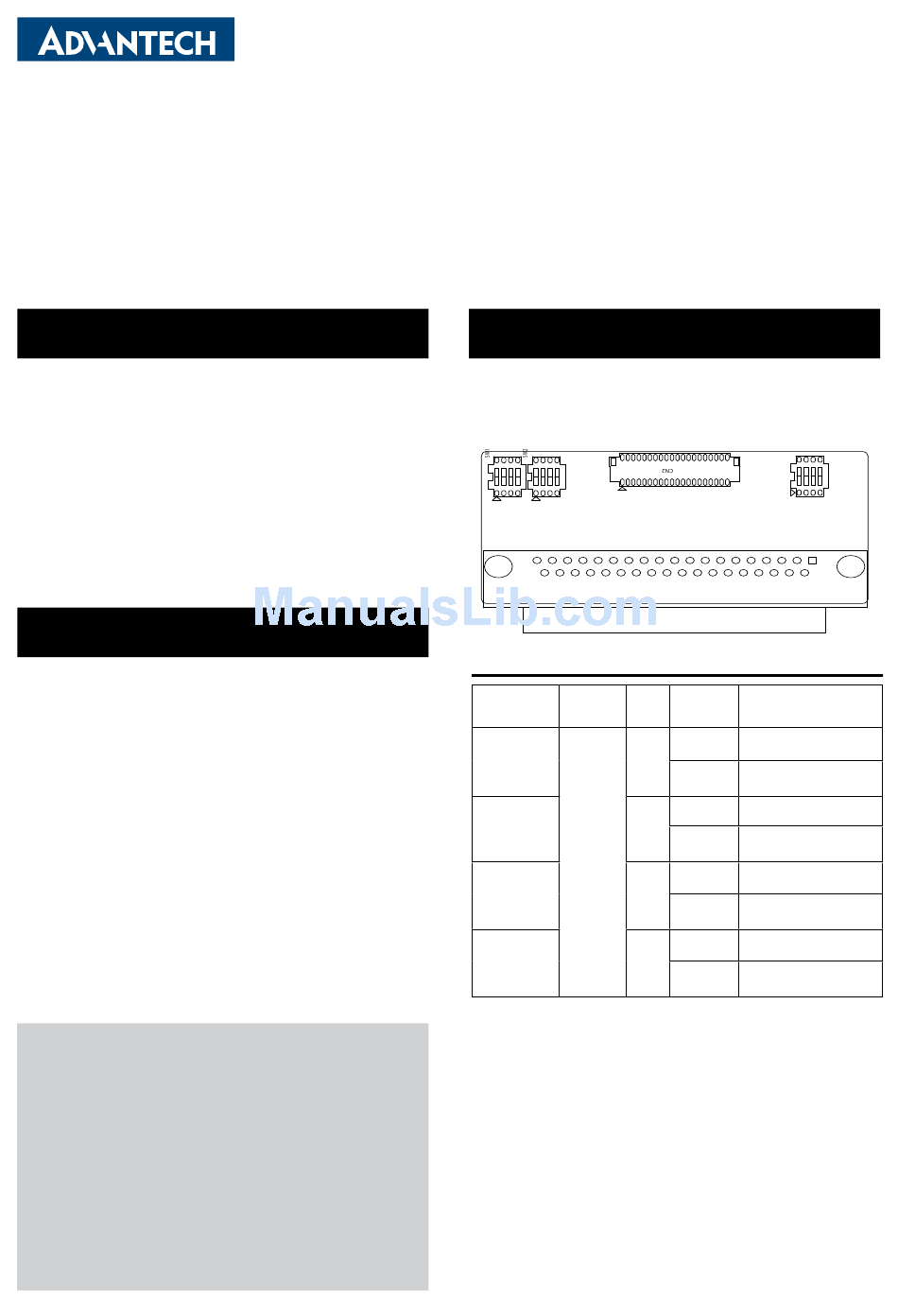

PCM-2610B
PCM-2612B
4-Ports Non-Isolated RS-232 mPCIe, DB37
4-Ports Non-Isolated RS-422/485 mPCIe, DB37
Startup Manual
Packing List
Before installation, please make sure that you have:
1. mPCIe card with controller x 1
2. Wired cable x 1
3. DB37 to DB9(4 ports) cable x 1
4. Startup manual x 1
5. Warranty card x 1
6. DB37 IO plate with bracket x 1
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Documentation/Software Support Guide
The driver can be downloaded from the product website.
* Supports Windows XP/7/8/10, and Linux
For more information on this and other Advantech
products, please visit our website at
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This manual is for PCM-2610B-AE/PCM-2612B-AE.
Part No. 2001261000
Printed in China
Jumper Settings
You can set the terminator resistor via jumper setting if
necessary to match impedance.
PCM-2612B Jumper switch setting as below.
Master/Slave Settings
COM
Port
COM 1
COM 2
COM 3
COM 4
1st Edition
March 2018
Switch
Pin
Setting
ON
1
OFF
ON
2
OFF
SW1
ON
3
OFF
ON
4
OFF
PCM-261X Startup Manual 1
SW3
CN1
Description
RS-422 Master
RS-485/RS-422
Slave (Default)
RS-422 Master
RS-485/RS-422
Slave (Default)
RS-422 Master
RS-485/RS-422
Slave (Default)
RS-422 Master
RS-485/RS-422
Slave (Default)
