Advantech ASMB-820I Startup Manual

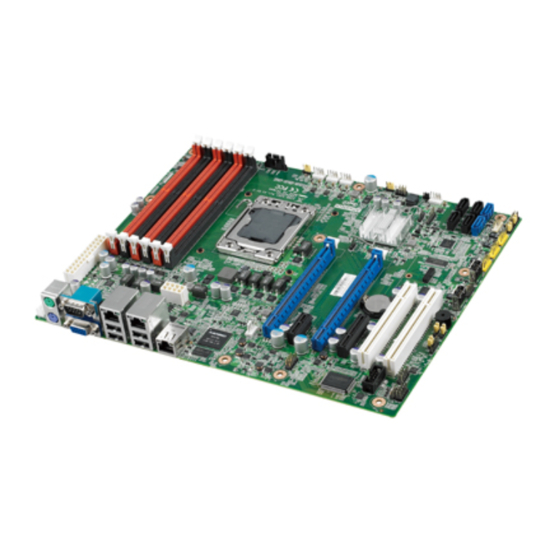

ASMB-820I Intel® Xeon® E5-2400 series LGA 1356 Socket ATX
Server Board with 4 PCIe & 2 PCI Expansion Slots
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 ASMB-820I Startup Manual
• 1 Driver CD (user's manual is included)
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 I/O port bracket
• 1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the ASMB-820I series Rev. A1
Part No. 2006820I10
Print in China
Specifications
Standard SBC Functions
• CPU: LGA1356 Intel ® Xeon® E5-2400 series
• BIOS: AMI 64 Mb SPI BIOS
• Chipset: Intel® C602J
• System memory: 6* DDR3 REG/ECC/Non-ECC
1066/1333/1600 unbuffered DIMM, Max. 96 GB
Note:
• SATA Interface: 4 SATA2 3 Gb/s ports, 2 SATA3 6Gb/s,
supports Intel Matrix Storage (for Windows only) software
RAID 0, 1, 10 & 5.
• Serial ports: Two serial ports, only support RS-232
• Keyboard/mouse connector: Supports standard PS/2
keyboard and mouse
• Watchdog timer: 255 level timer intervals
• USB 2.0: Supports up to eleven USB 2.0 ports (2* Type-
A)
VGA Interface
• Chipset: Aspeed AST2300
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate
Ethernet interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1:Intel 82579LM; LAN2: Intel 82574L;
LAN3: Realtek 8201EL(10/100Mbps for IPMI,ASMB-820I
sku only)
Mechanical and Environmental
• Dmensions (L x W): 304 x 244 mm (12" x 9.6")
• Power supply voltage: +3.3 V, +5 V, ±12 V, +5 Vsb
• Power consumption(Main board only, excluded IO
device): Max. load: +3.3 V @ 24.75 A, +5 V@ 16.77 A,
+12 V @ 13.06 A, +12 V(8P) @ 22 A, +5 Vsb@ 2 A
• Operating temperature: 0 ~ 60° C (depending on CPU)
• Weight: 1 kg (weight of board)
1st Edition,
Feb. 2012
Due to the inherent limitations of PC architecture,
the system may not fully detect 96 GB RAM
when 96 GB RAM is installed.
ASMB-820I Startup Manual 1
