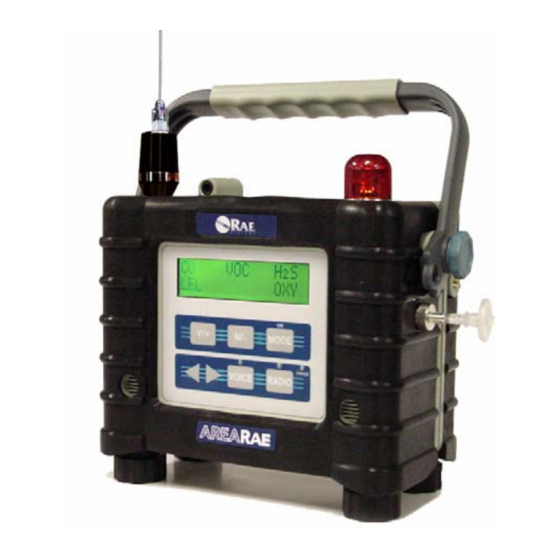

Rae AreaRAE Operation And Maintenance

Wireless multigas monitoring system
Hide thumbs Also See for AreaRAE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Maintenance Manual
Rev 20040413

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AreaRAE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rae AreaRAE

Summary of Contents for Rae AreaRAE

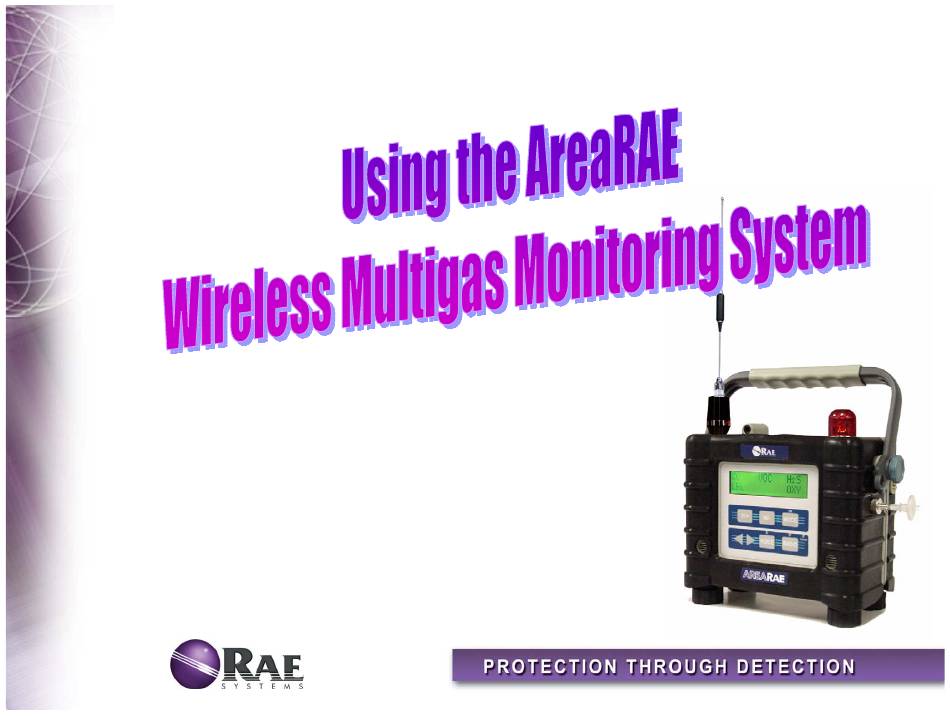

  • Page 1 Rev 20040413...
  • Page 2 Training Agenda: • System Overview • AreaRAE Operation and Maintenance • System Setup • ProRAE Remote Software • ProRAE Suite...
  • Page 3 Training Agenda:...
  • Page 4 Components of a Wireless System ProRAE Remote Host Passive Monitor Controller Detectors Host Controller Passive Monitor...
  • Page 6 Section Agenda • AreaRAE Operation and Maintenance – AreaRAE features – AreaRAE Kits – Turning on the AreaRAE – AreaRAE Startup – Operation Modes (Overview) • Normal Mode • Program Mode – Alarm modes – ProRAE Suite overview...
  • Page 8 AreaRAE Monitor Features • 5 internal sensors – PID – O2, LEL – Gamma – Toxics • Optional GPS • Built-In 902-928 MHz RAELink modem – Frequency hopping, spread spectrum – Up to 2 miles / 3.2 kilometers – North America, Australia, parts of Latin America and other markets •...
  • Page 9 AreaRAE Monitor Features • Large LED display and alarm light • Loud (> 100 dB) Alarm (can be muted) • Strong 500 cc/min Sampling pump • 4-Way power – Li-Ion rechargeable battery – Alkaline battery – 120 / 240 VAC –...
  • Page 10 AreaRAE Monitor Features • Long Run time: – 18 hrs w/Li-ion, 9 hrs with Alkaline – Continuous operation via AC power • Rugged Housing: – IP53 for water and dust proof – Withstands 1 meter drop – Size: 7.25"L x 6.0"W x 4.5"H –...
  • Page 11 AreaRAE Monitor Sensors • Oxygen: 0-30% • Combustibles: 0-100% of LEL • Toxic sensors: – CO, H S, SO , NO, NO , Cl , HCN, NH , PH • VOC monitor: 0-2000 PPM • Gamma Sensor: 1-4000 uR/h ( uSv/h)
  • Page 12 • Pump stall feature: – when moisture is detected or when pump is blocked the pump will shut off, – protecting the AreaRAE from potential damage • ~300cc/min at Low flow, ~550cc/min at High flow • Only use Teflon tubing...
  • Page 14 AreaRAE Kits The AreaRAE (PGM-5020) consists of: • AreaRAE monitor • Up to five sensors • Carbon filters, for monitors equipped with a CO sensor • Calibration adapter • Quick Reference Guide • Operation and Maintenance manual • Shoulder strap...
  • Page 15 AreaRAE Kits • Charger • Spare alkaline battery pack • Ten spare water and dust trap filters • Three-inch inlet probe • Hard transport case with pre-cut foam • Fifteen feet (5 meters) of Teflon® tubing • Tool kit • Lamp cleaning kit, for monitors equipped with a...
  • Page 17 AreaRAE Start-up: Turning On • Hold “MODE” Key to turn on • Alarm will beep once • Watch display screen for messages such as: – Sensors installed & their warranty expiration – Alarm limits – Last calibration date – User/Alarm/Datalog modes •...
  • Page 18 • If this screen appears during the start-up just acknowledge it with the “Y” key and follow the procedure for setting the clock. • The battery has gone dead and the AreaRAE has detected a mismatch between the date code on the sensors and its internal clock.
  • Page 19 • This is a warning screen. As long as the sensor calibrates properly it is valid to continue using it. Acknowledge by pressing the “Y” key to continue warm- • For maximum AreaRAE availability, RAE Systems recommends replacing sensors at the end of their warranty period...
  • Page 20 Start-up: Check Sensor Zero • After 90 sec. warm-up, the AreaRAE should display for all of the installed sensors • If there is no alarm, and the sensor readings are in the range shown above, then the AreaRAE is ready for use.
  • Page 21 Start-up: Check Sensor Zero TOX1 TOX2 20.6-21.2 • If any reading is outside these limits, wait a few minutes then check again. – If readings are in limits use the unit – If readings are still outside these limits perform “Fresh air calibration”...
  • Page 22 • “Lamp” display along with audible alarm indicates that PID lamp has failed to light • Press “Y/+” key to clear alarm, if it clears AreaRAE is ready for use • If alarm does not clear, wait a few minutes and check...
  • Page 23 AreaRAE Start-up: Lamp Alarm • If after a few minutes the “Lamp” message remains, turn off AreaRAE and restart • If after restart “Lamp” message disappears, AreaRAE is ready for use • If after restart “Lamp” message remains, the PID Lamp...
  • Page 24 AreaRAE Start-up: Pump Alarm • Every time the AreaRAE is used it is important to check pump flow • Block the filter on the pump inlet • Reset pump alarm by pressing the “Y” key • If pump does not go into alarm, check for loose/cracked...
  • Page 25 Wireless Mode Display • A small radio antenna displayed in the left center of the AreaRAE screen indicates that the wireless link is established...

  • Page 26: Gps Mode Display

    GPS Mode Display • A small satellite displayed in the left center of the AreaRAE screen indicates that the GPS is communicating. • A minimum of 3 satellites is needed for good signal • The display will show a max of 4 satellites...

  • Page 28: Operation Modes

    Operation Modes There are three operation modes: • Normal – for normal sensing operation and viewing current status of the monitor • Program – for monitor setup, calibration, etc • Diagnostic – troubleshooting tools...
  • Page 30 3 User Modes Normal Mode has different privilege levels or User Modes • Program Mode: 11 screens for most advanced users • Display Mode: 7 screens and has password to get into programming (default mode) • Text Mode: 3 screens and has password to get into programming...
  • Page 31 Comparison of User Modes Program (11) Display (7) Text (3) Sensor ID Sensor ID Sensor ID w/OK PEAK PEAK Battery PC Comm STEL STEL Battery Battery Time/Date/Temp PC Comm Start Datalog* LEL Gas * Will not show VOC Gas if no datalogging Disable GPS? option or auto PC Comm...
  • Page 32 Instantaneous Reading (Main Display) • AreaRAE will return to this screen in 60 seconds if left in any subsequent screen • This screen alternates between the instantaneous reading and the sensor name approximately every 3 seconds...
  • Page 33 Instantaneous Reading (Main Display) • CO: Carbon Monoxide Sensor • VOC: Photo Ionization Detector (PID) • H2S: Hydrogen Sulfide Sensor • LEL: Combustible gas sensor • OXY: Oxygen sensor • Tap “MODE” key to proceed...
  • Page 34 Peak Reading Display This screen is deleted in Text Mode • Holds Highest reading since AreaRAE was turned on • Press “Y” key to clear peak/min – Screen will prompt: “Are you sure?” – Press “Y” to confirm peak clearing...
  • Page 35 Minimum Reading Display This screen is deleted in Text Mode • Holds Lowest reading since AreaRAE was turned on • Tap “MODE” key to proceed to next screen...
  • Page 36 This screen is deleted in Text Mode • Short Term Exposure Limit (average for the past 15 minutes) • Displays “***” until AreaRAE has been on for 15 minutes • STEL only is calculated for VOC & toxics • STEL alarm beeps once a second •...
  • Page 37 • Time Weighted Average is the accumulated reading of gas concentration divided by 8 hours since the AreaRAE was turned on • TWA only is calculated for VOC & toxics • TWA alarm beeps once per second • Tap “MODE” key to...

  • Page 38: Battery Voltage Display

    Battery Voltage Display This screen is deleted in Text Mode • AreaRAE shuts down when battery voltage drops below 6.2 volts • Normal Full Charge is over 7.6 volts • Tap “MODE” key to proceed to next screen...
  • Page 39 This screen is deleted in Display & Text Mode • Date, Time of day • Accumulated time in hours and minutes since the AreaRAE was turned on • Temperature in Centigrade or Fahrenheit (operating range from -20-45oC, -4-113oF) • Tap “MODE” key to proceed...
  • Page 40 • Manual: logs if “Y/+” key is pushed now • Automatic: this screen is deleted and it logs data when as soon as the AreaRAE on • Scheduled: logs data at a preset time • Will datalog 20,000 points (64 hrs of data) •...
  • Page 41 Datalog Mode Display • A small “L” is displayed in the left center of the AreaRAE screen indicates datalogging • Will datalog 20,000 points (64 hrs, 5 channels, 1 min interval) • User can choose one of 4 datalog modes (Manual, Automatic, Periodic &...
  • Page 42 LEL Units Display This screen is deleted in Display & Text Mode • Target Gas for LEL displayed here (AreaRAE is currently measuring LEL in units of methane) • Correction Factor can only be changed in programming mode • Tap “MODE” key to proceed to next screen...
  • Page 43 VOC Units Display This screen is deleted in Display & Text Mode • Target Gas VOC is displayed here (AreaRAE is currently measuring VOC in units of isobutylene) • Correction Factor can only be changed in programming mode • Tap “MODE” key to proceed to next screen...
  • Page 44 Communicate with PC Display • If “Y/+” key is pushed then AreaRAE will display “Monitor will Pause. OK?” • If “Y/+” key is pushed again the AreaRAE will display “Ready...” until it receives a signal from the computer or the “MODE”...
  • Page 45 Communicate with PC Display • When the AreaRAE is in this communication standby mode it stops monitoring gas concentrations and stops datalogging. • Datalogging must be manually restarted when exiting unless automatic datalogging is in use.
  • Page 47 Operation Modes Remember: There are three operation modes: • Normal – for normal sensing operation and viewing current status of the monitor • Program – for monitor setup, calibration, etc • Diagnostic – troubleshooting tools...
  • Page 48 Getting Into Programming • Hold “MODE” and “N/-” keys for 5 sec. to get in Programming Mode • If AreaRAE asks a question “?” – Answer “Y” or “N” • To Accept or Escape – Use “MODE” Key – repeatedly pushing the “MODE” key will...

  • Page 49: Programming Menus

    Programming Menus • Calibrate Monitor? • Change Alarm Limits? • Change Datalog? • Change Monitor Setup? • Change Sensor Configuration? • Choose (Y) to accept or (N) to move on – ref. Appendix A-2 in AreaRAE Manual...

  • Page 50: Calibrate Monitor

    Calibrate Monitor? • Fresh Air Calibration? – Make sure air is clean! • Multiple Sensor Calibration? • Single Sensor Calibration? • Modify Span Gas Value? • Change LEL/VOC Span Gas? – Choose (Y) to accept or (N) to move on, MODE to escape...
  • Page 51 Fresh Air Calibration? Make sure air is clean!

  • Page 52: Multiple Sensor Calibration

    Multiple Sensor Calibration • At “Multiple Sensor Calibration” press “Y/+” key...
  • Page 53 Multiple Sensor Calibration • For CO/H2S/LEL mixed gas calibration the next screen should appear as above...
  • Page 54 • Attach calibration gas regulator to mixed gas cylinder • Turn on calibration gas • Attach calibration hose to AreaRAE • Press “Y/+” key to display “Apply Mixed Gas on screen • After 60 second countdown, follow instructions on screen...
  • Page 55 Multiple Sensor Calibration • If you get this screen check for gas flow, the AreaRAE will not perform span calibrations unless it senses calibration gas...
  • Page 56 Multiple Sensor Calibration • Try again after you have verified that the gas is correct and it is flowing properly • Follow instructions on screen • Disconnect regulator from gas cylinder when complete calibration TOX1 TOX2 Apply gas or hit any key to start...
  • Page 57 Single Sensor Calibration • VOC can only be calibrated individually, other sensors can be calibrated individually if necessary • At “Single Sensor Calibration” press “Y/+” key • Use “MODE” to select...

  • Page 58: Single Sensor Calibration

    Single Sensor Calibration • Attach calibration gas regulator to VOC (Isobutylene) cylinder • Turn on calibration gas • Attach calibration hose to AreaRAE and make sure it is tight • With cursor on VOC press “Y/+” key • Follow instructions on screen •...
  • Page 59 – Allows you to change the calibration gas values to use other cal gases – Do not change if you are using the RAE Systems cal gas supplied with your meter • Change LEL/VOC Span Gas? – Allows you to change the calibration gas from methane (LEL) &...

  • Page 60: Change Alarm Limits

    Change Alarm Limits? • Change High alarm limit? – 3 Beeps per second (“High”) • Change Low alarm limit? – 2 Beeps per second (“Low”) • Change STEL alarm limit? – 1 Beep per second (“STEL”) • Change TWA alarm limit? –...

  • Page 61: Change Datalog

    Change Datalog? • Clear All Data? • Change Datalog Period? • Select Data Type? • Enable/Disable Datalog? Choose (Y) to accept or (N) to move on, MODE to escape...

  • Page 62: Change Monitor Setup

    Change Monitor Setup? • Change Site ID? • Change User ID? • Change Alarm Mode? • Change User Mode? – “Program” – “Display” – “Text” • Change Real Time Clock? • Change Light & Buzzer Mode?
  • Page 63 Change Monitor Setup? • Change Password? • Change Pump Duty Cycle? • Change Pump Speed? • Change Averaging Method? • Change Display Language? (English, Spanish) • Set Temperature Unit? (C Choose (Y) to accept or (N) to move on MODE to escape...

  • Page 64: Change Sensor Configuration

    Change Sensor Configuration? • Change LEL/VOC Gas Selection? • Enable/Disable Sensor? • Change Dilution Ratio? • Change PID Lamp Type? Choose (Y) to accept or (N) to move on, MODE to escape...
  • Page 65 AreaRAE: Power Off • Hold Mode Key for full 5 seconds • Audible alarm will beep and display will read “Power-down in ...5 seconds” • Plug 15V DC charger into AreaRAE charge port when not in use...
  • Page 67 AreaRAE Alarm Signals • The AreaRAE will provide audible and visual alarms to alert users to unsafe states • It is extremely important to note that during the following conditions the alarm signals are disabled: – When entering the “Communicate with PC?” standby mode.
  • Page 68 AreaRAE Alarms: High • “High” display along with 3 beat/second audible/visible alarm and flashing display backlight indicates that the high alarm has exceeded • VOC sensor (PID) has high alarm setpoint 100 ppm default. • Press “Y/+” key to clear if latching alarm...
  • Page 69 AreaRAE Alarms: Low • “Low” display along with 2 beat/second audible/visual alarm and flashing display backlight indicates that Oxygen sensor has gone into low alarm (less than 19.5% Oxygen default) – All other sensors, Low alarm indicates the first warning –...
  • Page 70 • “STEL” display along with a 1 beat/second audible/visual alarm indicates that VOC or Toxic sensor has exceeded STEL alarm setpoint – 25 ppm VOC default • This alarm will only clear after 15 minutes in clean air or the AreaRAE is turned off!
  • Page 71 • “TWA” display along with a 1 beat/second audible/visual alarm indicates that VOC or Toxic sensor has exceeded the TWA alarm setpoint – 10 ppm VOC default • This alarm will only clear after moving to clean air and then turning off the AreaRAE...
  • Page 72 Alarms: LEL OFF • “OFF” display along with a 3 beat/second audible/visual alarm indicates that LEL sensor has been exposed to too much gas and has shut off to protect the sensor. • Move the meter to clean air and press the “Y” key to reset.
  • Page 73 AreaRAE Alarms: Pump • “Pump” display along with 3 beep audible alarm indicates that pump has stopped due to line clog • Pump alarm is a latching alarm • Clear line/filter and press “Y/+” key to clear alarm and restart pump...
  • Page 74 • A flashing “Bat” display along with a 1 beep alarm every 10 seconds indicates that the battery voltage has dropped below 6.2 V and it will shut down in 20-30 minutes • Quickly complete confined space entry and charge AreaRAE or install alkaline battery...
  • Page 75 Alarms: NEG • “NEG” display along with a 1 beat/second audible/visual alarm indicates that a sensor has drifted negative (below zero) because the sensor was zeroed in an area containing gas. • Perform “Fresh Air Calibration” in an area clear of all gases.
  • Page 77 Host Controller Overview ProRAE Remote Host Controller Detectors Host Controller...
  • Page 78 Connecting the RAELink Host Modem • (A) Connect the rs-232 cable to the RAELink Host modem (WDT-5001) • (B) Connect antenna to the RAELink Host Modem • Connect the other end of the serial cable either directly into the computer, or USB-serial adapter (C), as shown •...
  • Page 79 Connecting the RAELink Host Modem • Take note of which ‘com port’ that you are using. You will need to set this in ProRAE Remote • Make sure that ProRAE Remote is installed as per the instructions on the installation...
  • Page 81 • remote sensor readings into user-friendly displays • Allows real-time, two-way wireless communication between AREARAE and base controller – Continuously displays sensor data – Shows alarm status when necessary – Can send alarm to cell phones and pagers –...
  • Page 82 ProRAE-Remote: Panel View • Panel View: Displays status and alarm condition for all detectors in system – Normal (no alarm) = green – Alarm status (flashing red) Normal Green indicator...
  • Page 83 ProRAE-Remote: Panel View • Alarms: Simulated voice audible alarms along with visual alarms Red “Stop Sign” Alarm Indicators...
  • Page 84 ProRAE-Remote: Status Window •Status window: Shows current reading and history of each sensor for a specific AREARAE monitor...
  • Page 85 ProRAE-Remote: Status Window Displays data from remote sensors: every sensor reading is updated at the master polling interval Alarm Command: Can send command to remote monitor to activate audible and visual alarm along with text messages to the display on the remote sensor(s) Alarm Box: red text display shows pump is clogged...
  • Page 86 Safe Area phone and provide a text Hazardous Area (CID2) message of the alarm RF link status. • The AREARAE system can be set up and left running without the Unit 1 requirement for an operator at the host controller at all times.
  • Page 87 Safe Area text message of the Hazardous Area (CID2) alarm status. RF link • The AREARAE system can be set up and left running Unit 1 without the requirement for an operator at the host controller at all times.
  • Page 88 ProRAE Remote:Log View •Can show data history for each remote monitor as text...
  • Page 89 ProRAE Remote:Log View •Also can show data history or each remote monitor as a graph...
  • Page 90 ProRAE Remote: Image View •Place the remote unit on an imported map (bmp, jpg, gif) •Status windows can be shown on this view just like panel...
  • Page 91 ProRAE Remote:GPS Option ProRAE-GPS will automatically place remote unit on the correct map within 10 meters base upon info received from the remote unit Zoom in, zoom out and map manipulation...
  • Page 93 ProRAE Suite ProRAE Suite is used for: • Changing monitor settings • Uploading log data • Upgrading firmware...
