Winmate M700DM4 Standard Operation Procedure

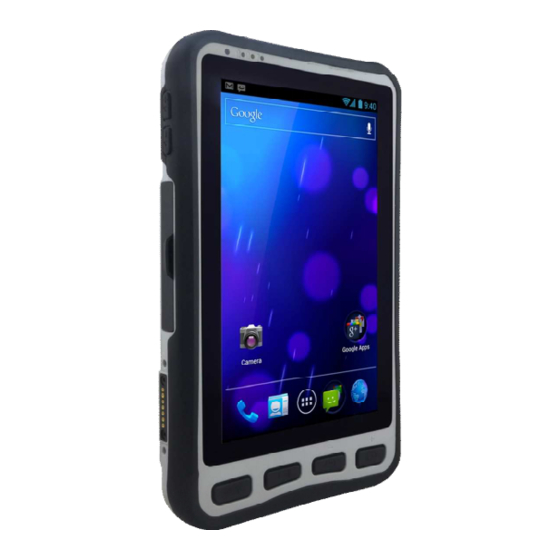

Rugged tablet pc
Hide thumbs Also See for M700DM4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
Part No
Product Name




(DO NOT COPY OR DISTRIBUTE W ITHOUT PERMISSION)
STANDARD OPERATION PROCEDURE
98TF07MA4001
Rugged Tablet PC
Product Name：Rugged Tablet PC
Model Name: M700DM4
Revision
Model Name


1
100
Station
M700DM4

FMRD33B


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M700DM4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate M700DM4

Summary of Contents for Winmate M700DM4

  • Page 1 STANDARD OPERATION PROCEDURE  98TF07MA4001  Part No  Revision  100  Station    Rugged Tablet PC  M700DM4  Product Name  Model Name            Product Name：Rugged Tablet PC    Model Name: M700DM4   (DO NOT COPY OR DISTRIBUTE W ITHOUT PERMISSION) FMRD33B...
  • Page 2 STANDARD OPERATION PROCEDURE  Document History    Item  Date  Revision  Page  Description  2014/11/30  1  100  N/A  New Document Released  2          3          4          5          6          7     ...

  • Page 3: Table Of Contents

    STANDARD OPERATION PROCEDURE  Table of Contents  Block Diagram ............................  4   Notes & Tools ............................  5   Version Control Table  ..........................  6   Panel & Touch Assembly ........................  7   Panel Assembly ............................  8   Middle Plate assembly  ...........................  9   Wi‐Fi antenna Assembly ........................  1 0  CPU Board Assembly  ..........................  1 1  IO Board Assembly  ..........................  1 2  Back Cover Assembly ...........................  1 5  LTE Antenna Assembly ......................... ...

  • Page 4: Block Diagram

    320403704005 Adapter 5V 15W 2.5ψ 9226015W05V1 Wi-Fi Antenna 39700010000I MK8-200 CPU Board 90MBMK802000 GPS Antenna 397000000005 M7T4IC-110 Camera Bridge 90BB7T4IC100 M700DM4-200 M7T4IL-100 LED Board IO Board 94DG12G120A0 90BB7T4IL000 90IOM7DT4102 M7T4IK-100 Key Pad Board 94DG12G120B2 90BB7T4IK000 M7T4IM-100 Machine Pin 90BB7T4IM000 LTE MAIN Antenna...

  • Page 5: Notes & Tools

    STANDARD OPERATION PROCEDURE  98TF07MA4001  Part No  Revision  100  Station    Operation Name  Notes & Tools  Remark        ATTENTION:  Remarks    1. Please put on a pair white ESD glove when working.      2. Please put on the ESD belt when working.      3. Pay attention to the torque of electric screw driver.      4. Make sure all screws are tight without loose.              5. No thread stripped happen.      Tools:  Remarks    1. Electric Screwdriver (refer to MIPD015 Electric Screwdriver Torque     ...

  • Page 6: Version Control Table

    Part No 98TF07MA4001 Revision Station Operation Name Remark Version Control Table  Firmware  Item  Device  Part Number  Model Name  Version  CPU Board  90MBMK802000  MK8  V200  IO Board  90IOM7DT4102  M700DM4  V200  Camera Bridge  90BB7T4IC100  M7T4IC  V110  Board  HW  Key PAD Board  90BB7T4IK000  M7T4IK  V100  LED Board  90BB7T4IL000  M7T4IL  V100  Machine Pin Board  90BB7T4IM000  M7T4IM  V100 ...

  • Page 7: Panel & Touch Assembly

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Panel & Touch Assembly Remark STEP 1 Item Material: 90ME02000039 9117070K8000 TXCP0700MLS3 Step Assembly Description： Remove paper on the adhesive tape then unite the Plastic cover (A) onto the Frame Affixed the Touch(C) onto the Front Cover STEP 2 carefully.
  • Page 8 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Panel Assembly  STEP 1, 2 Item Material： 111H0700EG00 Steps Assembly Description： Using W2xH0.5mm double sided adhesive tape stick the Panel (A) around its four sides. Make sure to protect Panel cable using insulating tape.
  • Page 9 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Middle Plate assembly  Remark STEP 1 Item Material： 90BB7T4IK000 90BB7T4IL000 9156070K9F00 82W70A11T500 9128070K1100 Item Assembly Description： Put on the Dome of the Button(C) into the Key Pad plate(A) STEP 2, 3 Fix the LED plate (B) use Philips pan screw M2 x4mm to lock the front frame.
  • Page 10 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Wi‐Fi antenna Assembly Remark Item Material： STEP 1 39700010000I Steps Assembly Description： Fix the Wi-Fi antenna (A) to the front frame, the copper foil must affixed into the middle plate and follow cable alignment approximately left direction.
  • Page 11 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name CPU Board Assembly  Remark STEP 1 Item Material： 60ZZ60500000 90MBMK802000 Steps Assembly description： Set up to stick on the back, the Absorbing material (A) from the CPU Board(B) On the front part of absorbing material, must temporary not to post on the CPU Board STEP 2...
  • Page 12 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark IO Board Assembly  STEP 1, 2 Item Material： 90IOM7DT4102 9117070K9106 94DG12G120A0 94DG12G120B2 Steps Assembly Description： Use Philips Screw M1.6x3mm(marked in green circle) into CPU Board to lock IO Board(A) Cover up Rubber sponge onto Battery STEP 3, 4 Connector (marked in yellow) The 12 pin point out FFC(C) connect to...

  • Page 13: Io Board Assembly

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name IO Board Assembly (一)  Remark STEP 1, 2 Item Material： 前述半成品 90BB7T4IC100 9163070K9002 Steps Assembly Description： Connect the Touch Cable to the IO board Connect the Panel Cable to the IO board. Use Philip screw M2.5x4mmm (marked in green circle) at the IO lock the middle STEP 3 plate, then Connect FFC Cable and secure...
  • Page 14 STANDARD OPERATION PROCEDURE    Part No 98TF07MA4001 Revision Station Operation Name IO Board Assembly (二)  Remark STEP 1 Items Material： 397000000005 9B000000000H 9B000000000S Steps Assembly Description： Affixed the conductive sponge to GPS ,then the wifi antenna must connect to CPU Board, follow antenna alignment as shown in the figure (marked in red) STEP 2 The Camera(B)Across LED Board(C)must...

  • Page 15: Back Cover Assembly

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Back Cover Assembly  Remark STEP 1 Items Material： 61252000000K 88070T044201 88070T261204 90BB7T4IM000 916211109101 Steps Assembly Description： Back Cover(B) Paste SPK with water proof Fabric E) and fix to IP65 SPK(A) STEP 2, 4 Fix IO cover onto the back cover C) Use black Philip screw M2x4mm (marked in green circle) to put the Machine Pin Use Water proof glue onto the Machine Pin...

  • Page 16: Lte Antenna Assembly

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name LTE Antenna Assembly  Remark STEP 1 Items Material： 39700030001A 39700030001B 88070T164211 9117070K8001 Steps Assembly Description： The LTE Main antenna (A) containing copper foil and conductive foam sticker must attached onto the back Cover then STEP 2 follow illustrated antenna cable alignment and secured with insulating tape.

  • Page 17: Lte Card Assembly

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name LTE Card assembly    Remark STEP 1 Items Material： 9B000000004E Steps Assembly Description： Use Philip pan Screw M2x4mm(marked in red circle)to the LTE Card(A) The LTE AUX antenna guide must attach the conductive foam toward the bottom of the separator as shown in the figure.

  • Page 18: Cover Assembly

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Cover Assembly  Item Material： 88070T161311 Steps Assembly description： The wifi antenna must connect to LTE MAIN (marked in red box) and other wifi antenna must connect to LTE AUX (marked in green box) Connect Machine Pin &...

  • Page 19: Battery Pack

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Battery pack  STEP 1 Item Material： 320403704005 9128070K9100 Items Assembly Description： The Battery Pack(A) affixed the battery water proof ring(B) After performing the testing process, Load the Battery pack. STEP 2 Item Tools： item Note：...

  • Page 20: Test Flow Chart

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Test Flow Chart  M700DM4 Flow Chart Testing process Test Items LED & Button Power Button LED & Button Keypad Volume +/- Brightness Headset Speaker Micro SD Sensor Micro USB (OTG) Touch G-Sensor Gyroscope...

  • Page 21: Led & Button Test

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark LED & Button Test  Steps Testing Description： Check Power & Battery LED Check Power Button Check Keypad Check Volume +/- Power: Single Color  Battery: Dual Color    Items Judgment Standard： Power & Battery LED must function properly. Power Button must function properly Keypad must respond accurately.
  • Page 22 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark LCD & I/O Test  STEP 1~5 Steps Test Description： Evaluate the brightness adjustment. Use Micro SD 32GB or more then test if it functions properly. Insert Micro USB to evaluate into PC test machine. Use Micro USB OTG cable to connect the mouse.
  • Page 23 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark LCD & I/O Test  STEP 1~3 Steps Testing Description： Perform Z-Device Test Select Headset Audio and video output for Audio and Video Output evaluation. Speaker Handset Inspection Headset Detection Item Judgment Standard ： Headset can detect and use properly. Speaker can be used properly STEP 1~3 Item Tools：...

  • Page 24: Sensor Test

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Sensor Test  STEP 1~3 Steps Testing Description： Perform Z-Device Test Gravity Sensor  Test Gravity Sensor <G-Sensor> Gyroscope Measurement Inspection Item Judgment Standard： XYZ axis and movement information must correct. XYZ angle information must correct. Item Tools：...

  • Page 25: Gps Test

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark GPS Test  STEP 1~2 Steps Testing Description： Perform GPS Test APP Record the number of satellite and signal of strength. Item Judgment standard： Position required at least 3 or more -40dB Must attain at least 6 or more satellite position.
  • Page 26 STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark RF Test  STEP 1~3 Steps Testing Description： Select and Evaluate WWAN signal strength in the system. Open Z-Device Test AP, View Wi-Fi signal Network:  strength within 1 meter away. Telecom name:  Use Bluetooth headset to play music file TW Mobile ...

  • Page 27: Battery Test

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Battery Test  STEP 1~2 Steps Testing Description： Perform Z-Device Test Battery Inspection Item Judgment Standard： Battery<must discharge in normal and correct reading.> Item Tools： Z-Device Test Item Note： Battery Condition:        Good ...

  • Page 28: Camera Test

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Camera Test  STEP 1~3 Steps Testing Description： Perform Z-Device Test Main Video Camera  Main video Camera lens Inspection. Flash analysis Item Judgment Standard： Camera <Standard use and in right direction.> Preview Size  Flash<Can open and Close properly> STEP 1~3 Item Tools：...

  • Page 29: Six-Sided Figure

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Six‐Sided Figure  1. Front View 2.Back View 3. Top View 4. Bottom View 5. Left View 6. Right View     (DO NOT COPY OR DISTRIBUTE W ITHOUT PERMISSION) FMRD33B...

  • Page 30: Packing Assembly

    STANDARD OPERATION PROCEDURE  Part No 98TF07MA4001 Revision Station Operation Name Remark Packing Assembly  STEP 1, 2, 3 Item Material： 9111070K2004 9142070K1003 9143070K1003 9226015W05V1 Steps Assembly Description：： Accessories: Include Adapter (D) and Power Plug. Wrap the items in ESD bag , put into EPE Foam(A)Then Place in the box(B) After fitting into the box, affixed the sticker STEP 4...
