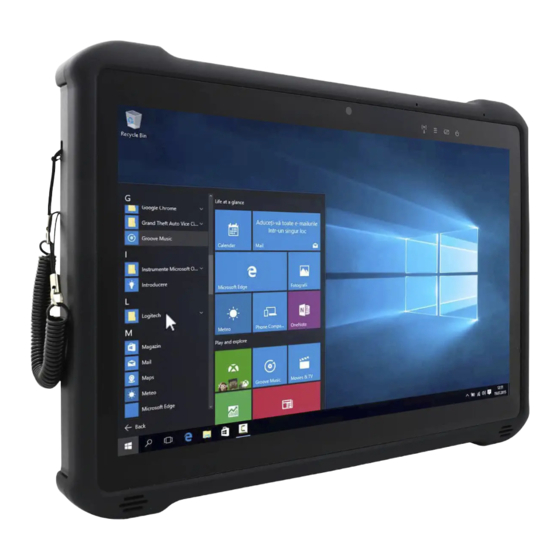

Winmate M116K Quick Start Manual

X86 rugged tablet intel core i5-7300u 2.60ghz windows 10 iot enterprise
Hide thumbs Also See for M116K:
Table of Contents

Advertisement

Quick Links

Download this manual
M116K
x86 Rugged Tablet
Intel® Core™ i5-7300U 2.60GHz
Windows® 10 IoT Enterprise
Quick Start Guide
Version 1.0
Document Part No. 91521110105F
Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M116K and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate M116K

Summary of Contents for Winmate M116K

  • Page 1 M116K x86 Rugged Tablet Intel® Core™ i5-7300U 2.60GHz Windows® 10 IoT Enterprise Quick Start Guide Version 1.0 Document Part No. 91521110105F Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    11.6" Rugged Tablet M116K Quick Start Guide Contents READ ME FIRST DVISORY ONVENTIONS AFETY NFORMATION ANDLING AND AINTENANCE INTRODUCTION VERVIEW NPACKING ESCRIPTION OF ARTS NDICATORS OTKEY FOR PECIFIC UNCTIONS GETTING STARTED NSTALLING ATTERY SD C NSTALLING A ICRO 4G LTE M...

  • Page 3: Read Me First

    Read Me First Read Me First Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. Note: A note is used to emphasize helpful information Important: An important note indicates information that is important for you to know.

  • Page 4: Safety Information

    11.6" Rugged Tablet M116K Quick Start Guide Safety Information Precaution on Battery Pack When the Battery Pack Has Deteriorated, Précaution avec le bloc-pile Replace It with a New Battery. Continued use of a damaged battery pack may result in heat generation, ignition or battery rupture.
  • Page 5 Read Me First General Product Safety  This product should not be used near water Sécurité générale des such as bathtubs, sinks, swimming pools, wet basement, etc. produits [FR] Ce produit ne dois pas être utilisé près de l'eau comme les baignoires, les éviers, les ...

  • Page 6: Handling And Maintenance

    11.6" Rugged Tablet M116K Quick Start Guide Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the product. General Guideline [FR] Essuyer délicatement l'écran avec un Guide Général chiffon doux non pelucheux. Ne pas utiliser d'alcool ou un détergent sur le produit.

  • Page 7: Introduction

    Congratulations on purchasing Winmate® 11.6-inch x86 Rugged Tablet M116K. The M116K platform is a next-generation Windows rugged tablet series designed to boost efficiency in a mobile, versatile form factor. The large 11.6-inch sunlight readable full HD display allows for a premium viewing experience no matter where work takes place.

  • Page 8: Description Of Parts

    11.6" Rugged Tablet M116K Quick Start Guide Description of Parts Dimensions: 300.67 x 201.97 x 22.5 mm Front: Left: Right: Item Description Item Description Use to attach a wrist strap 11.6-inch display with String Hole or other accessories. 11.6” PCAP...
  • Page 9 Introduction Rear: Top: Bottom: Item Description Item Description Fan Intake Intake for waterproof fan. Optional Barcode Scanner for Expansion Slot For optional add-on UHF Barcode reading of 1D/2D (Optional) RFID Reader or Smart barcode. Card Reader. Physical Press power button to Rear Camera 8MP rear camera with Buttons: Power,...

  • Page 10: Indicators

    11.6" Rugged Tablet M116K Quick Start Guide Indicators Icon Indicator Description Power Indicator Blue– Tablet is ON No light– Tablet is OFF Battery Status Orange–AC adapter is plugged in and charging Green–AC adapter is plugged in and battery is full charged Solid Red - Low battery (<10%)

  • Page 11: Installing A Micro Sd Card

    Getting Started 2. Insert the battery with the connector-pins side first, and then lower the battery into the battery compartment. Make sure the battery is completely lowered into the compartment. Once fully inserted, the Battery Release Slider automatically locks. Battery will be flat against the housing once fully inserted.

  • Page 12: Installing 4G Lte Module

    11.6" Rugged Tablet M116K Quick Start Guide Installing 4G LTE Module Notice that 4G LTE feature is optional and may not be supported by your device. Check your order specifications for more details. The Tablet Computer supports 4G LTE data connection and fits a Micro-SIM card. Before installing fits a Micro-SIM card please install the 4G LTE module.

  • Page 13: Installing Sim Card (For 4G/Lte Equipped Devices)

    Getting Started Installing SIM card (For 4G/LTE Equipped Devices) Notice that 4G LTE feature is optional and may not be supported by your device. Check your order specifications for more details. Caution Disconnect any cords connected to the tablet computer before installation or removing battery procedure.

  • Page 14: Charging Your Tablet

    No light – Battery is in use and charged (>10%). Replacing Battery The M116K Tablet supports hot-swap, meaning the tablet doesn’t need to be powered off to replace the main battery. To support hotswap, there is a backup battery inside the tablet that is charged together with the main battery.

  • Page 15: Using Lan Port (Rj45)

    Getting Started 2. If the Backup battery level is “Low”, please charge the tablet with AC Power until the Backup battery level is “Medium” or “High”, and do not remove the main battery. 3. If the Backup battery level is at “Medium” or “High”, you can remove the main battery. 4.

  • Page 16: Using Hottab Utility

    11.6" Rugged Tablet M116K Quick Start Guide Note: The computer will forcibly be powered off if the power button is pressed and held for 6 seconds or longer. Using Hottab Utility Hottab provides quick access to the tablet’s functions and features, such as setting up shortcuts, using camera, powering on/off built-in devices, programming function key, and changing power management.

  • Page 17: Using Camera

    Getting Started Using Camera To take photos or videos: 1. Open the Hottab application. The on-screen Hottab Camera Indicator lights orange. 2. Point the camera at an object. 3. Touch the on-screen shutter button to take a photo or video record button to record a video.

  • Page 18: Scanning Barcodes

    Scan a barcode to check your reader is working properly. Result will be displayed in Hottab. Reading HF RFID Tags Depending upon configuration, the M116K supports reading RFID tags. The RFID antenna is located on the back of the device under the RFID logo.

  • Page 19: Attachment

    Power DETECT- Power GigaLAN Port Definition Notice that GigaLAN port is an optional feature of the M116K Rugged Tablet and may not be present in your device. Please check your order specifications for more details. Pin № Pin № Signal Name...
  • Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2018 Winmate Inc. All rights reserved.
