Winmate M700DM8 Series User Manual

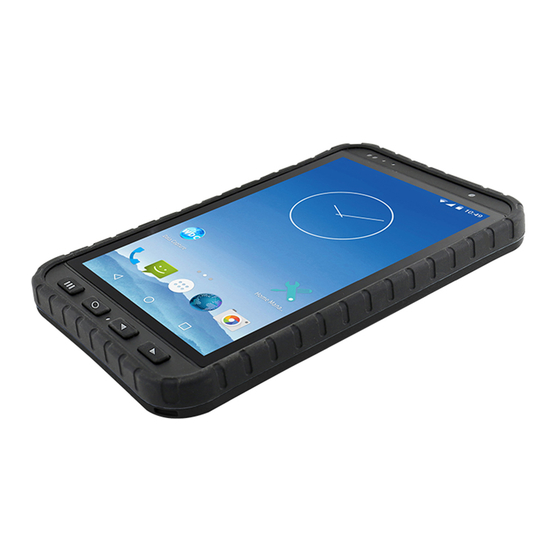

7” industrial tablet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
7" Industrial Tablet
M700DM8 Series

User Guide

Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M700DM8 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate M700DM8 Series

Summary of Contents for Winmate M700DM8 Series

  • Page 1: User Guide

    7” Industrial Tablet M700DM8 Series User Guide Version 1.0...

  • Page 2: Preface

    Preface Copyright Notice Warranty No part of this document may be Our warranty guarantees that each of its reproduced, copied, translated, or products will be free from material and transmitted in any form or by any means, workmanship defects for a period of one electronic or mechanical, for any purpose, year from the invoice date.

  • Page 3: Customer Service

    Advisory Conventions Customer Service Four types of advisories are used throughout the We provide a service guide for any user manual to provide helpful information or to problem by the following steps: First, visit alert you to the potential for hardware damage the website of our distributor to find the or personal injury.

  • Page 4: Read Me First

    Do not disregard the safety that a polarized or Read Me First grounded connection can provide. A polarized connection consists of two plugs, one of which is larger than the other. A grounded connection has two blades and a third one that Safety Information is grounded.
  • Page 5 Unplug this apparatus during lightning storms Do Not Disassemble, Modify, or Insert Sharp or when it is not being used for long periods. Objects Into the Battery Pack. Electrolyte leakage, generation of heat, ignition or rupture Débrancher cet appareil durant les orages ou may result.
  • Page 6 Do Not Charge the Battery Other Than Do Not Use the Battery Pack With Any Other Methods Those Specified In This Manual. If the Products. The battery pack is rechargeable and battery is not charged using one of the is only designed for this specific product. If it is specified methods, electrolyte leakage, used with a product other than the specified generation of heat, ignition or rupture may...

  • Page 7: Exposure To Radio Use

    Exposure to Radio Use RF Exposure Information M700DM8 series is equipped with Bluetooth, This tablet meets the government’s requirement Wi-Fi and Cellular modem radio. In some for exposure to radio waves. This tablet is situations or areas, user may be required to turn designed and manufactured not to exceed the off the radios.

  • Page 8: Electrostatic Discharge

    Do not place heavy objects on top of the Electrostatic Discharge M700DM8 computer as this may damage the display. Please follow proper Ne pas placer d'objets lourds sur le dessus de electrostatic discharge l'ordinateur M700DM8te cela peut precaution to prevent static CAUTION endommager l'écran.
  • Page 9 Gently wipe the display with a soft, lint-free Utiliser un chiffon doux pour enlever la cloth. Do not use alcohol or detergent on the poussière sur l'écran. La surface de l'écran product. tactile a un revêtement protecteur spécial empêchant la saleté de se coller à lui. Ne pas Essuyer délicatement l'écran avec un chiffon utiliser un chiffon doux peut endommager le...

  • Page 10: Important Information

    M700DM8 User Guide Important Information Countries/ Area Symbol This equipment complies with essential requirements of: Electromagnetic Compatibility Directive(2014/30/EU) European Union Low Voltage Directive (2014/35/EU) Radio and Telecommunication Terminal Equipment (R&TTE) Directive (2014/53/EU) FCC Part 15 Subpart B Regulations Class B CANADA ICES-003 —...
  • Page 11 About This User Guide...
  • Page 12 M700DM8 User Guide Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.  This device must accept any interference received including ...

  • Page 13: Table Of Contents

    Adjusting Volume .................................. 25 ..............................26 ANGUAGE AND EYBOARD ETTINGS Changing the Keyboard Language ............................27 ....................................28 BOUT HONE CHAPTER 3 USING WINMATE® HOME MANAGER (WHM) ...................... 29 ................................29 OW TO PPLICATIONS ............................... 31 OW TO NLOCK PPLICATIONS ................................33...
  • Page 14 SING ARCODE EADER Location....................................43 Android Winmate® Data Collection (WDC) ........................... 43 Where To Find WDC? ................................43 How to Turn On/Off the Power of Barcode Reader....................... 44 How to change the symbologies of Barcode ......................... 45 How to add command to my output of the barcode ......................45 How to change the scan type for the Barcode Reader ......................

  • Page 15: About This User Guide

    The documentation set for the M700DM8 provides information for specific user needs, and includes:  M700DM8 Series Quick Start Guide - describes how to get the M700DM8 up and running.  M700DM8 Series User Guide – contains detailed description on how to use the M700DM8, its components and features.

  • Page 16: Chapter 1 Getting Started

    M700DM8 User Guide Chapter 1 Getting Started This chapter tells you information about Winmate® M700DM8 Series tablet, its highlighted features, and provides basic instructions for using the M700DM8, including powering on and resetting the M700DM8. Introduction Thank you for purchasing Winmate® M700DM8 Series Industrial tablet. Winmate® M700DM8 Series Industrial tablet is an enterprise-class tablet with powerful mobile computing solution.

  • Page 17: Unpacking

    Chapter 1 Getting Started Unpacking If any of the following items are missing or damaged, contact us. Standard packing list includes: *Adapter M700DM8 User Manual (Hardcopy) Input: AC 100-240V 50/60 Hz Output : 5V-2A * Adapter socket varies by country and region. M700DM8 will be shipped with the socket according to your order.

  • Page 18: Description Of Parts

    M700DM8 User Guide Description of Parts Front View Description of Parts: Item Description 7” Touch Screen Displays and act as one of the inputs for the tablet Computer Home Button Return to home screen Menu Button Open a list of actions that user can do on the current screen Return Button Return to the previous screen If the device was equipped with scanners, this button can be function...
  • Page 19 Chapter 1 Getting Started Volume Down Decrease the volume of music or radio Audio Jack To connect a set of headphones, external speakers, or an audio device Power Jack DC-IN power input jack USB ports To connect USB flash drive 2.0 / mouse / printer / keyboard, etc MicroSD Card Reader Memory card reader port for MicroSD Card Service window to insert Micro SIM card.
  • Page 20 M700DM8 User Guide Parts Description: Item Description Press and hold the button for 3 seconds to turn on M700DM8 Press to turn on/off the screen Press and hold the button for 3 seconds to select: Power Button  Power Off -- to turn off the M700DM8 press button for 8 Sec to force system power off ...

  • Page 21: Dimensions

    Chapter 1 Getting Started Dimensions *Note: this is a simplified drawing and some components are not marked in detail.

  • Page 22: Turning On And Off The Device

    M700DM8 User Guide Turning On and Off the Device This section describes how to turn on/ off the device. Turning ON 1. Press and hold the power button for 3 seconds, located on the top side of the unit. 2. When the device vibrates, release the power button. The desktop screen is displayed.

  • Page 23: Resetting To Factory Defaults

    Chapter 1 Getting Started Resetting to Factory Defaults To reset the device to factory defaults: 1. Tap Menu , than tap Settings 2. In the Personal tab, tap Backup & Reset. 3. User can select to back up application data, Wi-Fi passwords and other settings to Google servers by tapping Backup My Data.

  • Page 24: Chapter 2 Using The M700Dm8

    M700DM8 User Guide Chapter 2 Using the M700DM8 This chapter explains how to use the buttons, status cons, and controls on M700DM8 tablet running on Android 5.1 Operating System, provides instructions on entering and capturing data. Using the Touch Screen The touchpad supports the core gestures for Android.

  • Page 25: Waking Up The Phone

    Chapter 2 Using the E500RM8 Waking Up the Phone If you do not use the phone for a while, the screen dims and then darkens to conserve the Battery. To wake up the phone: 1. Press the Power button on the right side of the tablet. 2.
  • Page 26 M700DM8 User Guide User can add application icons, shortcuts, widgets, and other items to any part of any Home screen where there is free space. User can also switch the wallpaper. To change wallpaper on the HOME SCREEN: 1. Tap MENU , and then open Settings 2.
  • Page 27 Chapter 2 Using the E500RM8 To move an item on the HOME SCREEN: 1. Tap and hold the item you want to move, until it can be moved. 2. Drag it to a new location on the screen. 3. Place the item where you want to put it and lift your finger. To remove items from the HOME SCREEN: 1.

  • Page 28: Viewing Other Parts Of The Home Screen

    M700DM8 User Guide Viewing other parts of the Home Screen 1. Slide your finger left or right across the Home screen. Extensions to the Home screen provide extra space for APPS, shortcuts, and other items. 2. Tap the launcher icon to view the entire APPS of the device.

  • Page 29: Status And Notification Icons

    Chapter 2 Using the E500RM8 Status and Notification Icons Notification Icons Pull down from the left top of the screen to get the notifications area. The following icons indicate that you have received notification. Status Icons Pull down from the right top of the screen to get the notifications area. The following icons indicate the status of your device, for example if users are connected to a Wi-Fi network that is not connected to the internet, the network icons are appears in white color.

  • Page 30: Using The On-Screen Keyboard

    M700DM8 User Guide Using the On-Screen Keyboard User will be able to enter text using the On-Screen Keyboard. Some applications will launch the keyboard automatically. In others, user needs to touch a text field where user wants to enter text to launch the keyboard.

  • Page 31: Editing Text

    Chapter 2 Using the E500RM8 5. To view additional symbols, tap on the numeric keyboard. 6. To close the On-Screen keyboard, press the back button Editing Text To select text: 1. Double-tap the text you want to select. 2. Tap to select all the sentences in the menu that appears, the selected text is highlighted in blue, with a tab at each end of the selected word.

  • Page 32: Display Settings

    M700DM8 User Guide 3. Tap and hold into the location that you want to paste. Tap PASTE in the menu that opens or user can also tap to replace the existing text with copied text. Display Settings Use the display settings to configure brightness and other screen settings. 1.
  • Page 33 Chapter 2 Using the E500RM8 For the longest battery life between charges, use the shortest Sleep time. NOTE...

  • Page 34: Audio Profile Settings

    M700DM8 User Guide Audio Profile Settings Use the sound settings to configure how and at what volume the phone rings, vibrates or alerts user in other ways when user receive a call, receive a notification or an alarm sounds. Sounds Settings 1.

  • Page 35: Language And Keyboard Settings

    Chapter 2 Using the E500RM8 Language and Keyboard Settings Use the Language & keyboard settings to select the language for the text on your phone and for configuring On-Screen Keyboard, including words that you have added to its dictionary. 1. Tap MENU and then tap Settings 2.

  • Page 36: Changing The Keyboard Language

    M700DM8 User Guide Changing the Keyboard Language The current keyboard language is displayed on the Space key and user can switch languages. 1. Tap and hold the space key 2. Without lifting the finger, slide it to the left or right until the language you want to use appears in the center of the small window above the Space Key.

  • Page 37: About Phone

    Chapter 2 Using the E500RM8 About Phone About Phone includes information about user’s phone.  System Update — provides information regarding the local or online update of your devices.  Status — opens the status screen with a list of information about battery, network, signal strength and other details.

  • Page 38: Chapter 3 Using Winmate® Home Manager (Whm)

    M700DM8 User Guide Chapter 3 Using Winmate® Home Manager (WHM) Every M700DM8 series tablet comes with preinstalled APP named Winmate® Home Manager (WHM). This application lets the device manager to lock the launcher. When the launcher is locked the user can only use one application assigned by the device manager.
  • Page 39 Chapter 3 Using Winmate Home Manager Step 4 Select “Restrict Home”, and then restart the tablet. Step 6 System will ask to select “Just once” or “Always” to use this launcher, please select “Always”.

  • Page 40: How To Unlock Applications

    M700DM8 User Guide The system will automatically start the application which you selected and lock it. Any time you press home key or back key, the system will go back to the same application which you have selected. How to Unlock Applications Step 1 Slide down the top bar and press “Home Manager”...
  • Page 41 Chapter 3 Using Winmate Home Manager Step 2 Go back to “Home Selector” and press “Clear and Reset Default Home”. Step 3 Restart the system and you will go back to the normal Launcher.

  • Page 42: How To Change Password

    M700DM8 User Guide How to Change Password Step 1 Go to Password Manager and set your own password for this APP. Step 2 The default password is “0000”. Enter a new password in New Password field, and then tap Change Password.

  • Page 43: Chapter 4 Connecting To Network And Devices

    Chapter 4 Connecting to Network and Devices Chapter 4 Connecting to Network and Devices This chapter explains how to connect tablet to network and peripheral devices. Connecting to Mobile Networks When users install a SIM card from service provider to the M700DM8, the device is configured to use the provider’s networks for voice calls and for transmitting data.

  • Page 44: Connecting To Wi-Fi Networks

    M700DM8 User Guide Connecting to Wi-Fi Networks Turning ON the Wi-Fi and Connecting to Wi-Fi networks 1. Tap MENU and then tap Settings 2. Tap Wireless & networks and then select Wi-Fi to turn it on 3. Tap Wi-Fi. The device scans for available Wi-Fi networks and displays the list of it. Secured networks are indicated with a lock icon.

  • Page 45: Adding Wi-Fi Network

    Chapter 4 Connecting to Network and Devices Adding Wi-Fi Network 1. Turn on Wi-Fi, in the Wi-Fi settings screen, tap + icon (at the bottom right of the list of discovered networks). 2. Input the SSID (name) of the network, if the network is secured, tap the security menu and then tap the type of security deployed on the network.

  • Page 46: Connecting To Bluetooth Devices

    M700DM8 User Guide Connecting to Bluetooth Devices Turning Bluetooth ON or OFF 1. Tap MENU and then tap System settings 2. Tap Wireless & networks and then select Bluetooth to turn it on. Connecting to Bluetooth Device 1. Go to Settings 2.

  • Page 47: Connecting To Computer Via Usb

    Chapter 4 Connecting to Network and Devices Connecting to Computer via USB User can connect their tablet to a computer with USB cable to transfer files between tablet and computer.  When connecting your tablet to a computer and inserting its USB storage or SD card, user must follow the computer’s instructions for connecting and disconnecting USB device, to avoid damaging or corrupting files.

  • Page 48: Usb Debugging Settings

    M700DM8 User Guide Tap this icon to choose the type of USB connection.  USB storage –let user transfers files between computer and tablet.  Media device (MTP) – let users transfer media files.  Camera (PTP) – let users transfer photos using camera software, and transfer any files on computer that don’t support MTP.
  • Page 49 Chapter 4 Connecting to Network and Devices 5. In the Developer options user can choose the action to perform. Carefully follow your computer’s instructions to un-mount the USB storage or SD card. Disconnect USB device not properly can cause a loss of important data or information. IMPORTANT...

  • Page 50: Chapter 5 Using Camera

    This chapter explains how to use camera to capture photos and videos. Capturing Photos or Video Winmate® M700DM8 equipped with 8 MP on the rear side and 2 MP on the front side, which user can use to capture photos or video.

  • Page 51: Viewing Pictures

    Chapter 5 Using Camera Viewing pictures 1. After taking a photo, a thumbnail of the picture is shown on the corner of the capture screen. Tap the thumbnail to view it. 2. Tap the onscreen button: to share a photo. to delete a photo.

  • Page 52: Chapter 6 Capturing Data

    This chapter explains how to use Barcode Reader and Android Winmate® Data Collection application. Using Barcode Reader Location 1D/2D Barcode Reader is an optional feature for Winmate® M700DM8 and may not be present in your device. Barcode Reader is located on the top side of the tablet. Android Winmate® Data Collection (WDC) The M700DM8 with Barcode Reader comes with pre-installed software made by Winmate®...

  • Page 53: How To Turn On/Off The Power Of Barcode Reader

    Chapter 6 Data Capture How to Turn On/Off the Power of Barcode Reader 1. Go to the WDC application. 2. Tap Barcode Setting 3. Once the user entered the WDC application, the device will automatically turn on the Barcode Reader. And the user can turn off the Barcode Reader by tapping Barcode Power Status: ON.

  • Page 54: How To Change The Symbologies Of Barcode

    M700DM8 User Guide How to change the symbologies of Barcode 1. Go to the WDC application. 2. Tap Barcode Settings 3. Tap Barcode Preference. 4. Users can change the symbologies of the barcode:  1D Symbologies  2DSymbologies  Imager Options ...

  • Page 55: How To Change The Scan Type For The Barcode Reader

    Chapter 6 Data Capture How to change the scan type for the Barcode Reader 1. Go to the “WDC” application. 2. Go to Barcode Settings , tap Trigger Settings. 3. Select the Scan Type or select read time of the Barcode Reader. To start scanning the barcode user has to leave the WDC application.

  • Page 56: Scanning The Barcode

    M700DM8 User Guide 4. Users can reset to the default setting by tapping Reset setting. Scanning the barcode How to scan the barcode? 1. Press the function button to trigger the barcode. 2. Aim the barcode. 3. Ensure the entire barcode is within the rectangular area formed by the brackets in the laser framing.

  • Page 57: Scanning Tips And Considerations

    Chapter 6 Data Capture Scanning Tips and Considerations Distance Scanning device will decode perfectly over a certain working range, there are minimum and maximum distance from the barcode. To specify the appropriate working range per barcode type is through a table as follows.

  • Page 58: Appendix A: Product Specifications

    Appendix A Product Specifications Appendix A: Product Specifications Model Name M700DM8 Size 7" Resolution 1280 x 720 Display Specification Brightness 650 (typ.) Touch Projective Capacitive Multi-touch Processor ARM® Cortex™-A53 Octa-core 1.3GHz System Memory 2GB RAM System Specification Storage 16GB eMMC Operating System Android 5.1 Lollipop WLAN...
  • Page 59 Appendix A Product Specifications -20°C ~ +60°C (AC Mode) Operating Temp. -10°C ~ +50°C (Battery Mode) IP Proof IP65 Shock MIL-STD-810G Method 516.6 Procedure I Mechanical and Vibration MIL-STD-810G Method 514.6 Procedure I Environment MIL-STD-810G Method 516.6, 4 ft, Free to Drop concrete Dimensions...

  • Page 60: Appendix B: Ordering Information

    Appendix B Order Information Appendix B: Ordering Information M700DM8 Series available in the following configurations: Model Number Specifications M700DM8 Standard M700DM8-4BM 1D/2D Barcode Reader M700DM8-4HF HF RFID Reader M700DM8-4NF NFC Reader M700DM8-4NB NFC Reader and 1D/2D Barcode Reader...

  • Page 61: Appendix C: Software Development Kit

    Description General SDK (WDC) Development kit for WDC, including Barcode Reader and Fingerprint Scanner Download SDK from Winmate Download Center or Winmate File Share. 1. Winmate Download Center: http://www.winmate.com > Support > Download Center > Industrial tablet> M700DM8 > Development Kit / Drivers Or follow the link: http://www.winmate.com/DownCenter/DownLoadCenter.asp?DownType=2021&OnlyContent=...

  • Page 62: Appendix D Os Image Update

    OS Image UTablette Appendix D OS Image Update Winmate provide OS Image update tool. Refer to “OS Image Update Tool Guide” for a detailed instruction on how to update OS image. Download OS Image update tool and OS Image Update Tool Guide from Winmate Download Center or Winmate File Share.
  • Page 63 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
