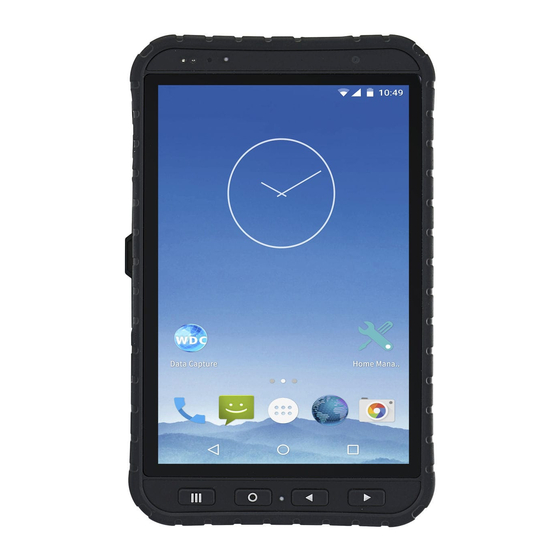

Winmate M700DQ8 Series Quick Start Manual

How to Start your M700DQ8
1) Charge the Battery
Use the bundled AC adapter and USB cable to charge the Tablet
for 4 hours.
DCin
Note: For the very first time using, we recommend you charge
with the AC adapter. Charging from PC's USB port will take
6 hours or longer.
Note: We strongly recommend you always charge your
M700DQ8 Tablet with its original charger. Winmate's
warranty does not cover damage to the mobile device
caused by other batteries and/or chargers.
2) Turn On the Tablet
To turn on your M700DQ8 series Tablet, press and hold the
power button for 3 seconds, located on the top side of the unit.
When the device viebrates, release the power button. The LED Indicator
will be solid blue during the launching process. The desktop screen will
then be displayed once operating system has been launched.
Note: For power saving purpose, please enable Connect to PC in
Accessibility settings. When connected to PC external 4G,
USB and LAN on Docking will be disabled.
How to Scan a Barcode
1) Tear off protective film from the barcode.
2) Press power button located on the top and swipe up from
bottom on the screen to unlock the screen.
3) Open Search application or other which can edit text.
4) Press triggerbutton located on the bottom.
5) Scan the following barcode to check if your reader is working properly.
Result will be displayed in Search application.
Code-39
Optimum scanning
How to Change Scanning Settings
To change scanning settings
1) Open WDC application.
2) Open Barcode Settings , tap Trigger Settings.
3) Choose scan type and read time options.
MODE TRIGGER OPTIONS
Auto Scan – Barcode reader starts auto-scanning once the user leaves
the WDC application.
Multiple Scan – After pressing the trigger button barcode reader starts
continuously scanning and reading multiple codes within the time
duration specified in Read time option.
Continuing Scan (Default) – After pressing the trigger button barcode
reader can scan and read only a single code within the time duration
specified in Read time option.
To change the symbologies of barcode
1) Open WDC application.
2) Tap Barcode Setting .
3) Tap Barcode Preference.
4) Change the symbologies of barcodes.
To add command with the output of barcode
1) Open WDC application.
2) In Barcode Setting stap Prefix/Suffix.
3) Enter special characters at the beginning (prefix) or end (suffix)
of the scanned barcodes.
4) Tap Set to add to the data.
There's more here.
• Keep your M700DQ8 updated, and find the latest
PC software, user manual, online help and more at
Winmate Download Center.
• Find more accessories for your M700DQ8 at
Winmate website www.winmate.com.
M700DQ8 Series
Rugged Tablet
Quick Start Guide
v1.0
For the complete user manual and other helpful resources, go to
www.winmate.com
