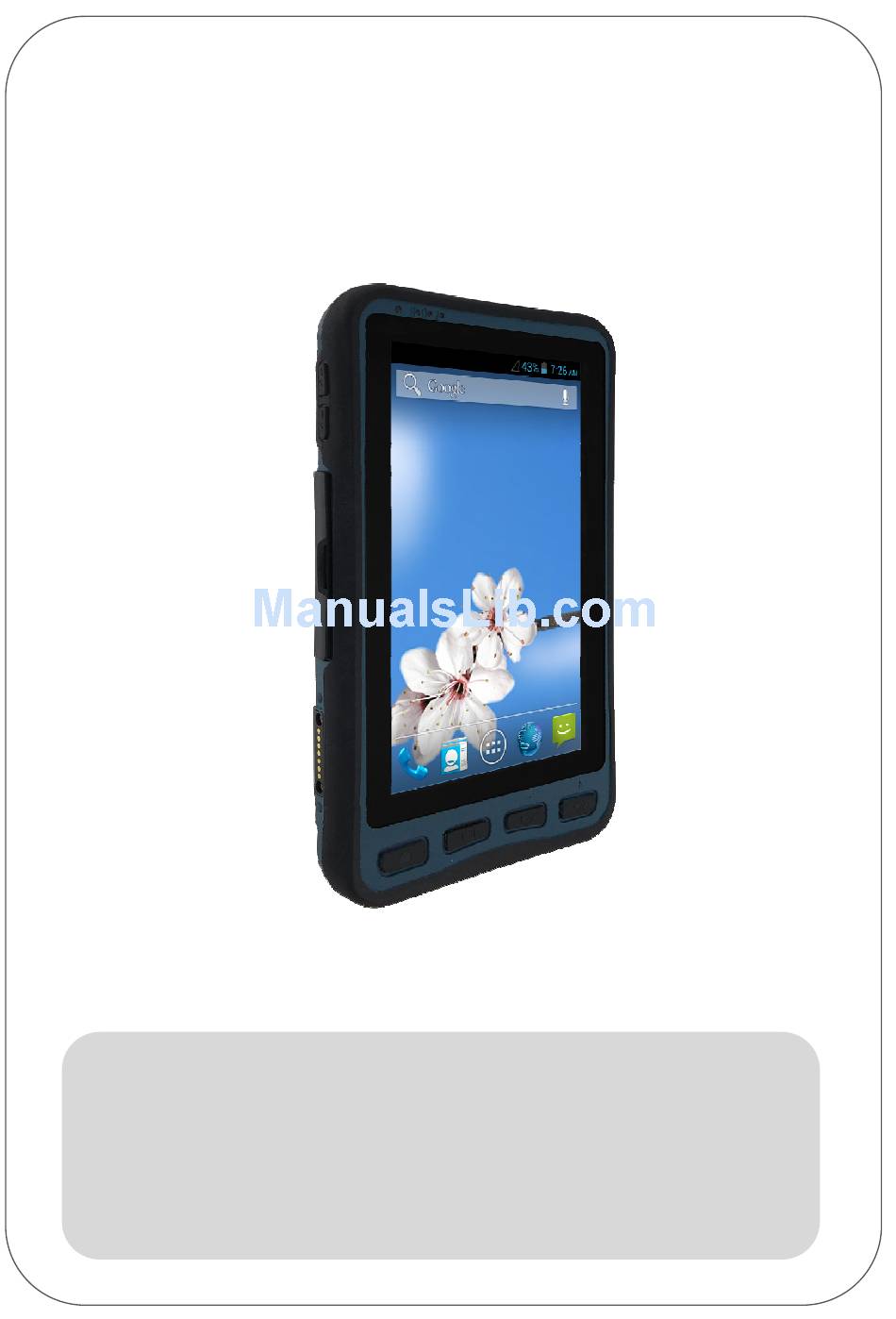

- Page 1 7” Rugged Android Tablet PC Class 1 Division 2 Edition Version 1.0 User’s Manual Nov 2014...
-
Page 2: Revision History
Revision History Version Date Note 2014.11.25 Initial Release 7-inch Rugged Android Tablet PC C1D2 Edition User Guide... - Page 3 Table of Content CHAPTER 1: READ ME FIRST................1 ........................1 AFETY NFORMATION .......................2 ANDLING AND AINTENANCE CHAPTER 2: GETTING STARTED ................4 ..........................4 NPACKING .......................5 ESCRIPTION ARTS .........................7 IRST TIME PERATION ........................11 URNING CHAPTER 3: USING ANDROID 4.2 OPERATING SYSTEM .......12 ........................12 P THE ABLET ......................12...
-
Page 4: Chapter 1: Read Me First
Do Not Use the Battery Pack With Any Chapter 1: Read Me First Other Products. The battery pack is rechargeable and is only designed for this specific product. If it is used with a product other than the specified product, electrolyte Safety Information leakage, generation of heat, ignition or rupture may result. -
Page 5: Aintenance
product. Keep this manual for future Do not place the product near any heat reference. sources such as radiators, warm air intakes, stoves or other heat-generating devices (including amplifiers or other heat General Guideline producing equipment). Do not disregard the safety that a polarized or grounded connection can provide. - Page 6 Use a soft cloth to remove dirt on the display. The touchscreen surface has a special protective coating that prevents dirt from sticking to it. Not using a soft cloth may cause damage to the special protective coating on the touchscreen surface.
-
Page 7: Chapter 2: Getting Started
Chapter 2: Getting Started Congratulations on purchasing this Android rugged Tablet Computer. The rugged design allows you to use it in harsh outdoor environments. This chapter tells you step by step how to get the Tablet Computer up and running. You will find instructions for the following procedures: •... -
Page 8: Part
Description Of Parts Front : Left : (with I/O protection (without I/O protection cover) cover Item Description Item Description 7” Touch Screen Displays and act as one of Power Mode Blue light : indicates the the inputs for the Tablet Status Power On Computer... - Page 9 Front LED Indicators Detail : Item Description MicroSD Card Memory card reader port Reader for MicroSD Card 3G Module/SIM Service window to insert card slot Micro SIM card. Also provide access to 3G Module. Docking Port to docking solutions connector such as vehicle docking to provide power and external antenna...
- Page 10 First-time Operation Insert SIM card (For Optional 3G/4G LTE equipped device) The Tablet Computer supports data connection using 3G/4G LTE SIM cards and fits Micro-SIM card. (Note: 3G/4G LTE feature is optional). Perform the following to install the SIM card to your Tablet Computer: I.
- Page 11 Inserting Battery Pack To insert the included standard battery pack into the Tablet Computer: Caution Please perform this action in the safe zone • 1. Disconnect any cords connected to the tablet computer. 2. Turn the tablet computer over, back facing up. 3.
- Page 12 Connecting to Power Supply The Tablet Computer operates either on external adapter or internal battery power. In this C1D2 version, the I/O connector is only accessible by tooling (screwdriver). To connect the tablet computer to AC Power, user needs to remove the I/O Cover. Removing protective I/O Cover Caution Please remove the I/O cover in the safe zone...
- Page 13 III. Reinstalling protective I/O Cover: Caution Please perform this action in the safe zone • When the LED indicator turns green, this indicates the device is fully charged and User needs to perform the following to reinstall the I/O Cover: 1.
- Page 14 Turning On / Off Turning On 1. Place the device on a flat and stable surface or hold it 2. Make sure the device is either connected to AC power or to the battery pack with power 3. Press and hold the power button for 3 seconds, located on the top part of the unit Note: •...
-
Page 15: Chapter 3: Using Android 4.2 Operating System
Chapter 3: Using Android 4.2 Operating System This section details how to use Android 4.2 operating system on the tablet for the first time. Wake Up the Tablet If you do not use the tablet for a while, the screen dims and then darkens to conserve the battery. To wake up the tablet: 1. -
Page 16: Using The Home Screen
To gain full access of the Android interface is by using your finger to manipulate icons, on screen keyboard, menu items, and other items on the touch screen. • Tap – Simply touch the icon, symbol, or onscreen button using your finger •... - Page 17 To move an item on the Home screen: 1. Tap and hold the item you want to move, until it can be moved. 2. Drag it to a new location on the screen 3. Place the item where you want to put it and lift your finger To move an item on the Home screen: 1.
-
Page 18: Icon
2......................Tap the launcher icon (on the upper right part) to view the entire APPS and Widgets of the device APPS WIDGETS Status and Notification Icons The status bar appears at the top right of every screen, along with the current time and on the bottom left are navigation icons. - Page 19 Notification Icons The following icons indicate that you have received notification Using the On-Screen Keyboard User will be able to enter text using the On-Screen Keyboard. Some applications will launch the keyboard automatically. In others, user needs to touch a text field where user wants to enter text to launch the keyboard.
- Page 20 Enter text by Typing 1. Open a text field, in this example we used Chrome to create a text, The On-Screen Keyboard opens. Tap once to capitalize the alphabet Tap and hold for input options If user taps in a text field which already contains text, the insertion point is set where user tap and the cursor appears.
- Page 21 3. Drag selection tab to expand or reduce the range of the selected text To Cut or Copy Text 1. Select the text to cut or copy, see “to select text” 2. Tap in the Edit text menu 3. If you select , the selected text is removed from the text field;...
-
Page 22: S Etting
Display Setting Use the display settings to configure brightness. 1. Tap and select Settings and then tap Display 2. Tap Brightness: • Tap Automatic Brightness – for adjusting the brightness automatically. • Tap Economical Backlight to save power • Slide the bar to adjust the brightness manually For the longest battery life between charges, use the lowest brightness level Use the display settings to configure Font size. -
Page 23: S Etting
Sound Settings 1. Tap and select Settings and then tap Audio profiles 2. Tap General and then tap the Settings (located on the right side of the screen user can select to disable or adjust the Music, video games & other media as well as notifications and Alarms Adjust Volume 1. - Page 24 Change the Keyboard Language The current keyboard language is displayed on the Settings icon and user can switch languages. 1....................... Tap the keyboard icon located on the top right, there are four input options Hardware-physical keyboard, English (US)- Android Keyboard, and Google voice typing 2.
-
Page 25: S Etting
4....................... Tap android keyboard settings to adjust the settings such as Auto capitalization, auto correction or other options USB Debugging Setting To permit debugging tools on a computer to communicate with User’s Tablet via USB Connection. 1....................... Tap select Settings and then Tap { } Developer options and then tap USB debugging 2. - Page 26 7-inch Rugged Android Tablet PC C1D2 Edition User Guide...
-
Page 27: Chapter 4: Connecting To Network And Devices
Chapter 4: Connecting to Network and Devices Connecting to Mobile Networks When users assemble their PDA with a SIM card from service provider, their phone is configured to use their provider networks for voice calls and for transmitting data. Different locations may have different mobile networks available; user may need to configure their phone to use certain networks. -
Page 28: Connecting To Bluetooth Devices
The device scans for available Wi-Fi networks and displays the list of it. Secured networks are indicated with a lock icon If the phone finds a network that you have connected previously, it connects to it automatically. 4. Tap a network to connect to it; •... - Page 29 Connect to a Bluetooth device 1. Tap and then tap Settings 2. Tap Wireless & networks, and then tap Bluetooth 3. It will automatically scans and displays the IDs of all available Bluetooth devices in range. Tap SEARCH FOR DEVICES to search other Bluetooth devices 4.
- Page 30 4. When the device is connected as USB storage, the screen indicates that USB storage is in use and user will receive a notification Carefully follow your computer’s instructions to un-mount the USB storage or SD card. Disconnect USB device not properly can cause a loss of important data or information. When user finished, simply disconnect the tablet by unplugging the USB cable.
-
Page 31: Chapter 5: Using The Camera
Chapter 5: Using the Camera Winmate M700DM4 equipped with 5 MP on the rear side, which user can use to capture photos or video Open Camera 1....................... Tap the launcher and then tap Camera Camera opens in Portrait mode, ready to take a picture or shoot a video Make sure the protective lens cover is clean before taking pictures. -
Page 32: Viewing Pictures
Viewing Pictures 1....................... After taking a photo, a thumbnail of the picture is shown on the corner of the capture screen. Tap the thumbnail to view it 2....................... Tap the onscreen button to share photo to delete photo to view other photo or video in the galleries Swipe right or left to view more Shoot a Video 1. -
Page 33: Allery
Opening the Gallery 1....................... Tap the launcher and then tap Gallery 2....................... Tap a folder to view the pictures or video inside in full screen mode 3....................... Flick the pictures left or right to view the previous or next picture 7-inch Rugged Android Tablet PC C1D2 Edition User Guide... -
Page 34: Chapter 6: Accessories
