Page 1: User Guide

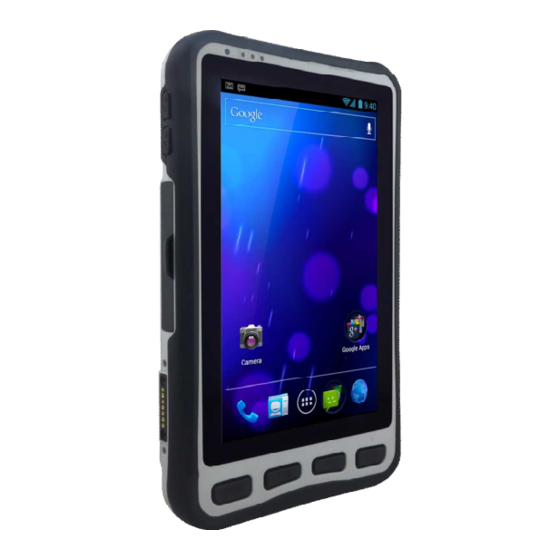

Winmate M700DM4 Tablet PC Android 4.2 User Guide Version 1.00 Revision A August 2013... -
Page 2: Table Of Contents
Exposure to Radio Use ..................3 RF Exposure Information ..................3 Safety Precautions ....................4 Battery Safety Information ..................4 Electrostatic Discharge ..................5 Driving........................5 Chapter 2: About Winmate M700DM4 Series About M700DM4 ....................6 Features .......................7 Getting started.......................7 Sim Card and SD Card Installation ..............8 User Replaceable Battery Installation..............8 Battery Charging .....................9... - Page 3 Take a Picture .....................24 Switch between Front and Back Cameras............24 Shoot a Video......................25 Opening a Gallery ....................25 Chapter 6: Data Capture Scanning Barcode ....................26 Scanning Tips and Considerations ..............27 Chapter 7: Accessories M700DM4 Standard Accessories ...............28 M700DM4 Optional Accessories ................28...
-
Page 4: Chapter 1: Safety Information
Chapter 1: Safety Information Exposure to Radio Use M700DM4 series is equipped with Bluetooth, WI-Fi and Cellular modem radio. In some situation or area, user may be required to turn off the radios. For example; User’s needs to turn the phone OFF when in an area posted “TURN OFF RADIO •... -
Page 5: Safety Precautions
If battery fluid leaks onto the skin or cloth, wash the affected area with • clean water Please contact your current Winmate distributor or local Winmate vendor if you suspect damage to your Tablet PC or battery for inspection and reparation. -
Page 6: Electrostatic Discharge
Winmate M700DT4 Tablet PC User Guide Electrostatic Discharge Please follow proper electrostatic discharge precaution to prevent static damage that can harm electronic components inside your device Driving Using mobile device or accessory while driving may cause distraction and maybe illegal in some areas where you drive. Please obey the laws and regulations on... -
Page 7: About M700Dm4
600 pixel TFT LCD display resolution. Other new era tech includes Built-in WLAN 802.11 a/b/g/n, Bluetooth 4.0, built-in 3G Module or optional Neo-6 GPS module. Features This section provides the features of the M700DM4 and describes how to set this device for the first time Features... -
Page 8: Getting Started
User Guide 7” Touch Screen Projected Capacitive touch screen Press and hold the button for 3 seconds to turn on M700DM4 Press to turn on/off the screen Press and hold the button for 3 seconds to select: • Power Off -- to turn off the M700DM4... -
Page 9: Sim Card And Sd Card Installation
SIM Card and SD Card Installation To Install the SIM Card and SD Card: 1. Place the M700DM4 facing up and then locate the protective rubber bumper 2. Open the protective rubbed bumper 3. Locate the SD and SIM Card as follows 4. -
Page 10: Battery Charging
It is suggested that user use AC Power when charge the Tablet PC for the first time. Please charge the battery before using the Tablet PC for the first time, charge the battery until the LED indicator turns solid green. To charge the M700DM4, use a cable or a docking with appropriate power supply. -
Page 11: Turning The M700Dm4 Off
3. Press and hold the power button for 3 seconds, located on the top part of the unit Turning the M700DM4 Off 1. To turn off the device, press and hold the power button until the phone options menu appears, tap the Power off. -
Page 12: Chapter 3: Using Android 4.2 Operating System
Winmate M700DT4 Tablet PC User Guide Chapter 3: Using Android 4.2 Operating System Wake Up the Phone If you do not use the phone for a while, the screen dims and then darkens to conserve the battery. To wake up the phone: 1. -
Page 13: Using The Touch Screen
Winmate M700DT4 Tablet PC User Guide Using the Touch Screen To gain full access of the Android interface is by using your finger to manipulate icons, on screen keyboard, menu items, and other items on the touch screen. Tap – Simply touch the icon, symbol, or onscreen button using your finger •... -
Page 14: View Other Parts Of The Home Screen
Winmate M700DT4 Tablet PC User Guide To move an item on the Home screen: 1. Tap and hold the item you want to move, until it can be moved. 2. Drag it to a new location on the screen 3. Place the item where you want to put it and lift your finger To remove an item from the Home screen: 1. -
Page 15: Status And Notification Icons
Winmate M700DT4 Tablet PC User Guide 2...........................Tap the launcher icon (on the upper right part) to view the entire APPS and Widgets of the device Status and Navigation Icons The status bar appears at the bottom right of every screen, along with the current time and on the bottom left are navigation icons. -
Page 16: Using The On-Screen Keyboard
Winmate M700DT4 Tablet PC User Guide Notification Icon The following icons indicate that you have received notification Using the On-Screen Keyboard User will be able to enter text using the On-Screen Keyboard. Some applications will launch the keyboard automatically. In others, user needs to touch a text field where user wants to enter text to launch the keyboard. -
Page 17: Editing Text
Winmate M700DT4 Tablet PC User Guide Tap once to capitalize the alphabet Tap once to view Input Options If user taps in a text field which already contains text, the insertion point is set where user tap and the cursor appears. User can drag the cursor to pick exactly where you want to add more text. -
Page 18: Display Setting
Winmate M700DT4 Tablet PC User Guide 2. Tap SELECT ALL to select all the sentences in the menu that appears, the selected text is highlighted in blue, with a tab at each end of the selected word 3. Drag selection tab to expand or reduce the range of the selected text To Cut or Copy Text 1. -
Page 19: Audio Profile Setting
Winmate M700DT4 Tablet PC User Guide Use the display settings to configure Font size. 1. Tap Font Size to adjust the size, there are several options such as: Small, Normal , Large, or Huge Audio Profile Setting Use the sound settings to configure how and at what volume the phone rings, vibrates or alerts user in other ways when user receive a call, receive a notification or an alarm sounds. -
Page 20: Language & Keyboard Setting
Winmate M700DT4 Tablet PC User Guide 1. Press the volume keys to change the ring volume (On Home screen) or earpiece volume (during a call) Language & Keyboard Setting Use the Language & keyboard settings to select the language for the text on your phone and for configuring On-Screen Keyboard, including words that you have added to its dictionary 1. -
Page 21: Usb Debugging Setting
Winmate M700DT4 Tablet PC User Guide 2..........................Tap input languages and in the Active input methods, user can select the languages 3..........................Tap android keyboard settings to adjust the settings such as Auto capitalization, auto correction or other options USB Debugging Setting To permit debugging tools on a computer to communicate with User’s Tablet via USB... -
Page 22: Turning On Data Service
Winmate M700DT4 Tablet PC User Guide 1. Tap and then tap Settings 2. Tap More… in the Wireless & networks, and then tap Mobile networks 3. Tap Network operators to choose a network operator Do not change the parameters of the access point to prevent user... -
Page 23: Add A Wi-Fi Networks
Winmate M700DT4 Tablet PC User Guide Add a Wi-Fi Network 1. Turn on Wi-Fi, in the Wi-Fi settings screen, tap icon (at the top right of the list of discovered networks) 2. Input the SSID (name) of the network, if the network is secured, tap the security menu and then tap the type of security deployed on the network. -
Page 24: Disconnect From A Bluetooth Device
Winmate M700DT4 Tablet PC User Guide 3. It will automatically scans and displays the IDs of all available Bluetooth devices in range. Tap SEARCH FOR DEVICES to search other Bluetooth devices 4. Tap the ID of the other device in the list in Settings to pair them Disconnect from a Bluetooth device 1. -
Page 25: Chapter 5: Using The Camera
SD card. Disconnect USB device not properly can cause a loss of important data or information. When user finished, simply disconnect the tablet by unplugging the USB cable. Chapter 5: Using the Camera Winmate M700DM4 equipped with 5 MP on the rear side, which user can use to capture photos or video... -
Page 26: Open Camera
Winmate M700DT4 Tablet PC User Guide Open Camera 1..........................Tap the launcher and then tap Camera Camera opens in Portrait mode, ready to take a picture or shoot a video Make sure the protective lens cover is clean before taking pictures. A... -
Page 27: Shoot A Video
Winmate M700DT4 Tablet PC User Guide to view other photo or video in the galleries Swipe right or left to view more Shoot a video 1..........................Tap to switch from camera to video mode 2..........................Point the lens to record the scene where you want to start 3..........................Tap... -
Page 28: Chapter 6: Data Capture
With an integrated laser scanner user will be able to have easy point, aim and shoot operation. Our M700DM4-B2 scan engine comes in compact size that attached on the top right of the devices Scanning Barcodes 1..........................Ensur... -
Page 29: Scanning Tips And Considerations
Winmate M700DT4 Tablet PC User Guide 2..........................Aim the Barcode 3..........................Press the trigger to scan, in M700DM4-B2, Search button is the trigger button. 4..........................Ensur e the entire barcode is within the rectangular area formed by the brackets in the laser framing Correct framing Wrong framing 5..........................Relea... -
Page 30: Chapter 7: Accessories
Adapter with Standard Power Cord Input : AC 100-240V 50/60 Hz (Euro / US standard type, 1.8 m) Output : 5V DC M700DM4 Manual & Driver CD Allows user to make an update Recovery CD Allows users to make a recovery M700DM4 Optional Accessories... - Page 31 Winmate M700DT4 Tablet PC User Guide Capacitive to use it as a mouse or as a finger to perform regular touch functions and to write in Touch application where applicable Stylus Vehicle Input 5V DC cigarette lighter socket Adapter USB car charger...
