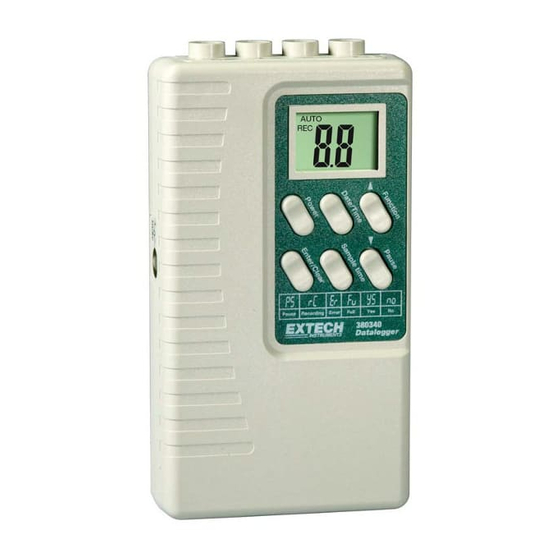

Extech Instruments 380340 User Manual

Heavy futy datalogger module
Hide thumbs Also See for 380340:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

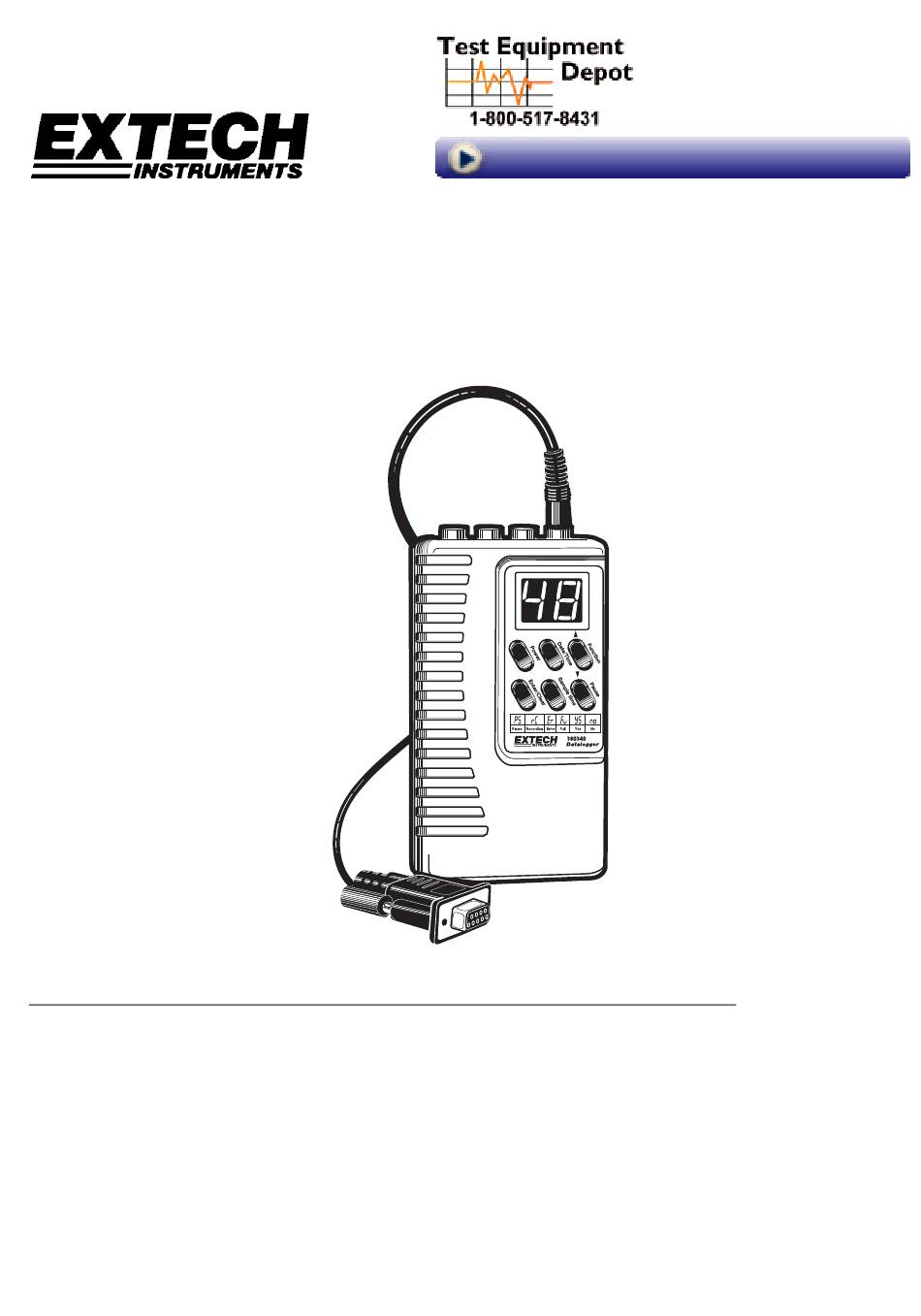

User's Guide
Heavy Duty Datalogger Module
Model 380340
Introduction
Congratulations on your purchase of Extech's 380340 Datalogger Module. The
Datalogger connects to and records data from Extech Heavy Duty Series Meters. The
sample rate at which data is recorded is user selectable. Readings stored in the
Datalogger can later be transferred to a PC using the supplied software and
communication cables. This device is shipped fully tested and, with proper use, will
provide years of reliable service.
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 380340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extech Instruments 380340

Summary of Contents for Extech Instruments 380340

  • Page 1 Model 380340 Introduction Congratulations on your purchase of Extech’s 380340 Datalogger Module. The Datalogger connects to and records data from Extech Heavy Duty Series Meters. The sample rate at which data is recorded is user selectable. Readings stored in the Datalogger can later be transferred to a PC using the supplied software and communication cables.

  • Page 2: Meter Description

    Meter Description FRONT PANEL VIEW AUTO MANUAL % Input / Output terminals LCD Display Buttons Battery compartment (on rear) AC adaptor input TOP VIEW Optically isolated INPUT jack Optically isolated OUTPUT jack TOP VIEW Non-isolated INPUT jack ISOLATE DIRECT Non-isolated OUTPUT jack BUTTON DESCRIPTION Power switch Date/Time...
  • Page 3 Compatible Meters Model No. Meter Type Display In/Out Port COM Cable 407026 Light Meter Single Direct UPCB-01 407112 Vane Anemometer Dual Direct UPCB-01 407113 Vane Anemometer Dual Direct UPCB-01 407114 CFM Thermo-Anemometer Dual Direct UPCB-01 407117 Mini Vane Thermo-Anemometer Dual Direct UPCB-01 407119...

  • Page 4: Operation

    Operation Note: The Heavy Duty Meters have an Auto-Shutoff feature that automatically turns off the meter (after 10 to 30 minutes depending on the model). This feature must be disabled during a datalogging session. Press the ‘RECORD’ button on the meter to disable the Auto-Shutoff feature.
  • Page 5 Clearing Logger Memory Press and hold Clear button until CLR appears and display begins to flash. The number displayed shows the % of memory used. ↑↓ Press to select YS (Yes) Press Enter. Display will flash 00. Memory is now clear. NOTE: Data will remain in memory until the Datalogger memory is cleared (see previous section) or until the batteries are removed.

  • Page 6: Transferring Data To A Pc

    Transferring Data to a PC Once data is collected, the next step is to connect the Datalogger to a PC and transfer the collected readings. Hardware Connection Connect the Datalogger’s OUT port to the PC COM port AUTO MANUAL % (as shown) via the supplied 3.5mm phono to DB-9 cable.
  • Page 7 Data Transfer To transfer data from a Heavy Duty meter to a PC. Connect appropriate cable to PC and the logger. (See Compatible Meter List) Power the Datalogger. Select your com port. Type a file name in the Data File Name field on the software screen. Click on the START key in the software window Press the Function button until LCD displays OUT Press the PAUSE button on the Datalogger to begin the data transfer.

  • Page 8: Specifications

    Specifications Input type RS-232 data stream Data storage 8000 readings (16 bits each) Display Adjustable Sample Rate 1 second to 8hrs 59 minutes 59 seconds Software compatibility Windows 98, 2000, Me, and XP Operating Systems Internal Clock Crystal oscillator Memory Non-volatile;...

  • Page 9: Warranty

    Warranty EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext.
