Transferring Data to a PC

Once data is collected, the next step is to connect the Datalogger to a PC and transfer the
collected readings.
Hardware Connection
Connect the Datalogger's OUT port to the PC COM port
(as shown) via the supplied 3.5mm phono to DB-9 cable.
Refer to the compatible meter list for the correct cable and
"OUT" port for your meter..
TM
Windows Datalogger Software
Install the supplied software from the Windows
provided on the CD-ROM. The following software screen will appear.

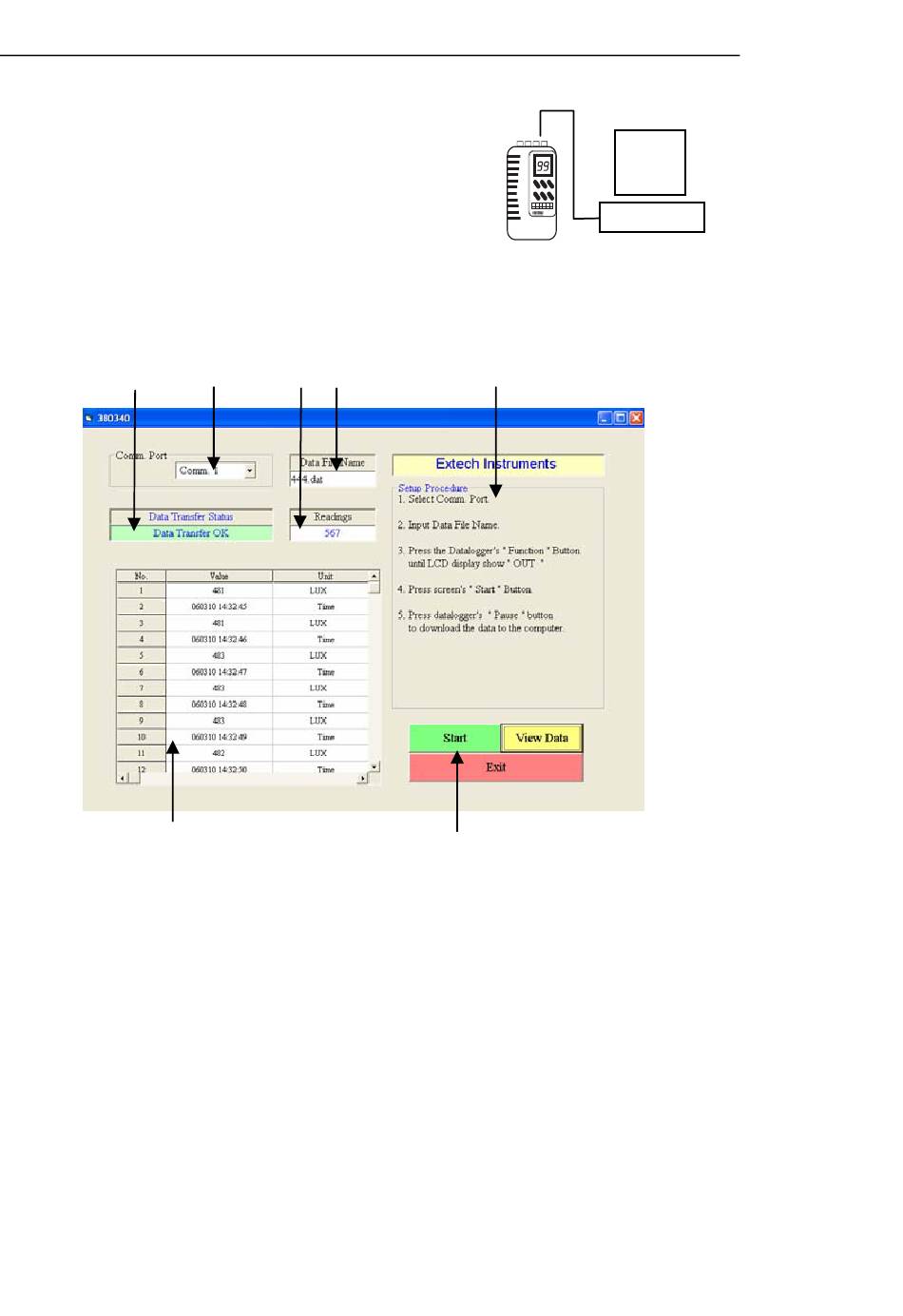

Software Screen Description
2
3
1. COM Port Selection (Use pull down menu to select port)
2. Data Transfer Status
3. Transferred Data View
4. Data File Name (type desired filename)
5. Number of readings
6. Instructional steps describing the data transfer process (additional steps are listed
in the next section).
7. Function buttons: START (click to begin data transfer); VIEW DATA (click to see all
transferred data as shown in item 3 above), and EXIT (click to close program)
1 5 4
6
AUTO MANUAL %
REC
OUT
TM
program CD-ROM using the instructions
6
7
