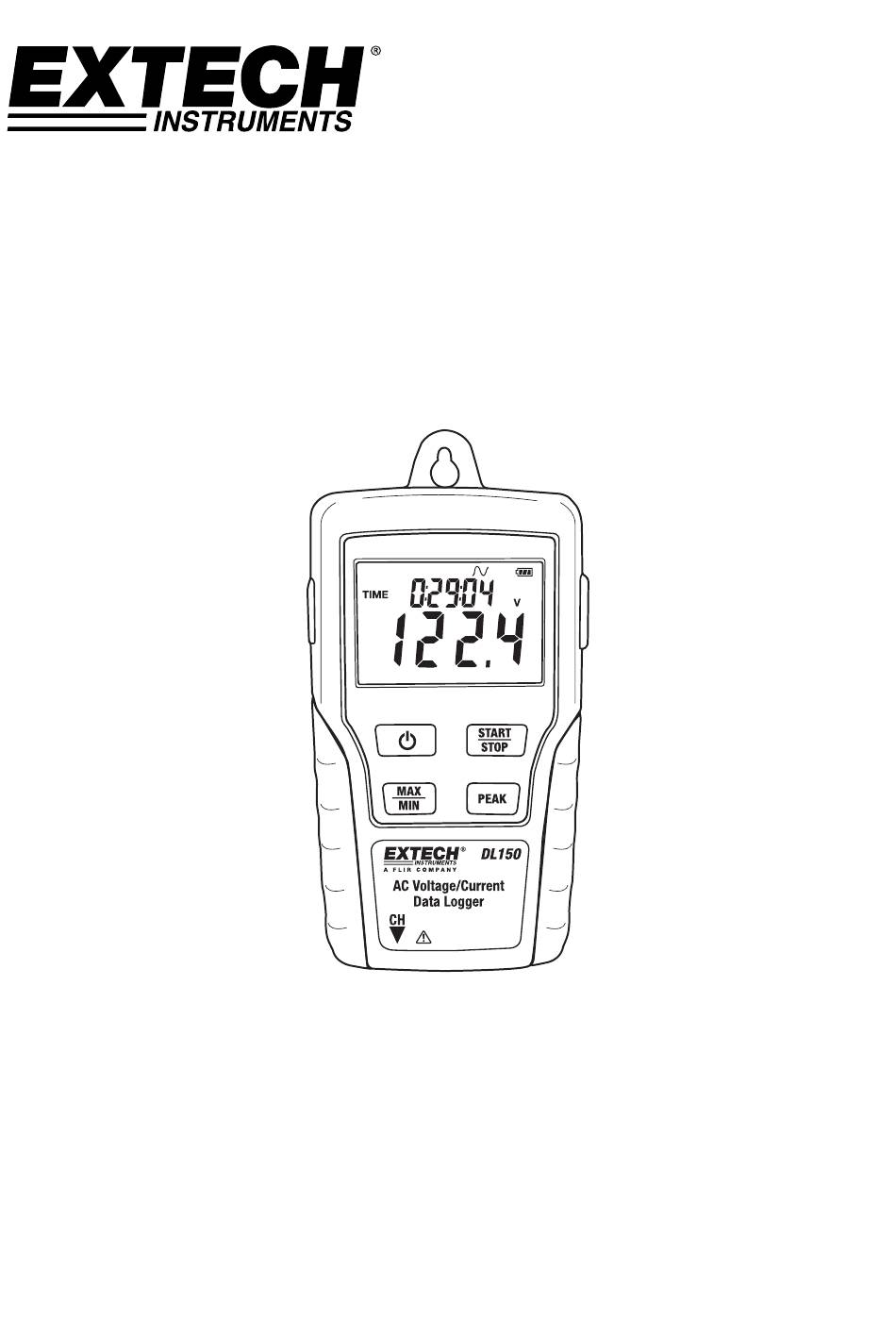

- Page 1 User's Guide True RMS AC Voltage/Current Datalogger Model DL150...
- Page 2 Switch off the meter after use. Remove the AAA batteries when the meter will be stored for a period of time.. When cleaning, do not use abrasives or solvents on the meter, use a damp cloth and mild detergent only. DL150-EU-EN V2.5 5/13...
- Page 3 Memory full and recording has stopped. Battery sign, when display completely the battery power is full. When there is only a frame icon displayed, the battery is exhausted and should be replaced with a new one. DL150-EU-EN V2.5 5/13...
- Page 4 9. AC Current Clamp Jaw: Clamp the jaws around a single conductor for AC current measurements to 200A 10. Jaw Opening Trigger: 11. CH Plug: 12. AC Voltage Probes or Alligator clips 13. Voltage module 14. CH Plug DL150-EU-EN V2.5 5/13...
-
Page 5: Operation
At least 7 MB hard disk space available to install Datalogger USB software Recommended display resolution 1024 x 768 with High Color (16 bit) Software Operation The Software operation is described in the HELP file located on the software disk. DL150-EU-EN V2.5 5/13... -
Page 6: Specifications
114 x 63 x 34mm (4.5 x 2.5 x 1.3”) Weight 248g (8.7oz.) Range Accuracy Voltage 10VAC to 600.0VAC ±2.0%±1V 40Hz to 1kHz Current 10A to 200.0A ±2.0%±1A 50/60Hz Peak Measurement 8.0 to 850.0V ±5.0% Copyright © 2013 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified www.extech.com DL150-EU-EN V2.5 5/13...
