- Page 1 SM-CAL1 Sound Meter Calibrator Users Manual • Mode d’emploi • Bedienungshandbuch • Manuale d’Uso • Manual de uso 99 Washington Street • Användarhandbok Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
- Page 2 SM-CAL1 Sound Meter Calibrator Users Manual SMCAL1_Rev001 © 2008 Amprobe Test Tools. All rights reserved.

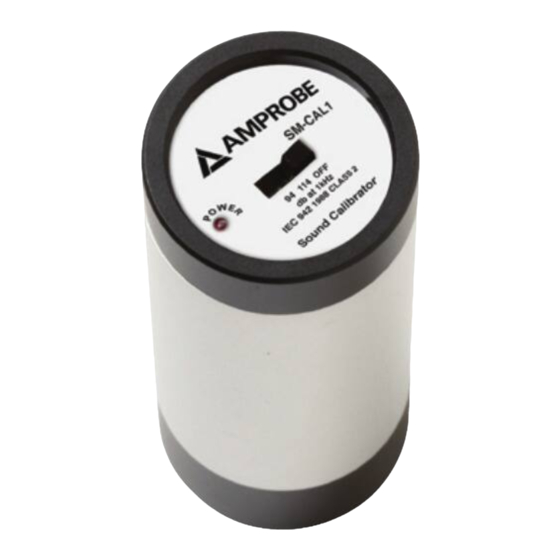

- Page 3 POWER 94 114 OFF SM-CAL1 ➊ Low battery indicator ➋ power and output level select switch. ➌ Battery cover ➍ Sound-Level Calibrator. ➎ 1/2” adapter.
- Page 4 SM-CAL1 Sound Meter Calibrator CoNtENtS Symbols ......................... 5 Unpacking and inspection ................... 5 introduction ......................5 operation ......................5 Specifications ......................6 Maintenance and Repair ..................6 Battery Replacement ................... 7...
- Page 5 INtRodUCtIoN The SM-CAL1 generates a fixed sound level signals for calibration of sound level meters. The Amprobe SM-CAL1 will work with any sound meter. oPERAtIoN Turn on sound level meter and configure for 94 dB or 114 dB operation.
- Page 6 SPECIfICAtIoNS general Battery: 9V, 006p or ieC 6f22 or nedA 1604. Low Battery indicator: Led will not be on when switched on. Battery Life: Approx 20 hours. (Alkaline battery) enviromental: indoor operation; Altitude up to 2000 meters; Atmospheric pressure: 1013 mbar.
- Page 7 REPLACEMENt Turn off the meter and unscrew the switch cap. Replace the battery with a nedA type 1604 or equivalent 9V alkaline battery. Replace the cover. Remove battery when the SM-CAL1 is not used for extended period. Battery Replacement POWER...
