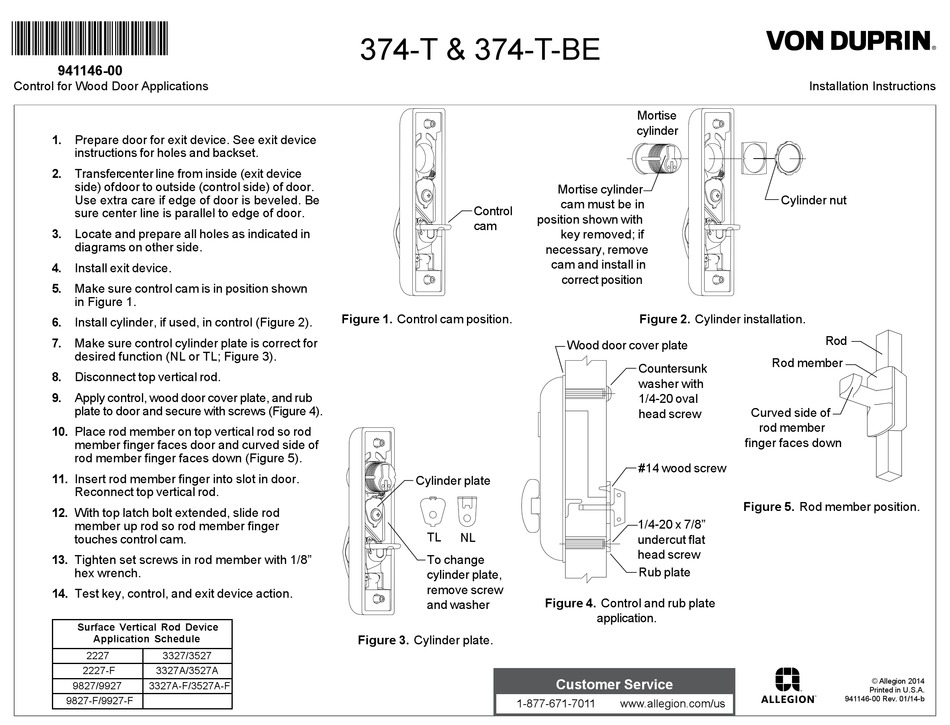

*941146-00*
941146-00
Control for Wood Door Applications
1. Prepare door for exit device. See exit device
instructions for holes and backset.
2. Transfercenter line from inside (exit device
side) of door to outside (control side) of door.
Use extra care if edge of door is beveled. Be
sure center line is parallel to edge of door.
3. Locate and prepare all holes as indicated in
diagrams on other side.
4. Install exit device.
5. Make sure control cam is in position shown
in Figure 1.
6. Install cylinder, if used, in control (Figure 2).
7. Make sure control cylinder plate is correct for
desired function (NL or TL; Figure 3).
8. Disconnect top vertical rod.
9. Apply control, wood door cover plate, and rub
plate to door and secure with screws (Figure 4).
10. Place rod member on top vertical rod so rod
member finger faces door and curved side of
rod member finger faces down (Figure 5).
11. Insert rod member finger into slot in door.
Reconnect top vertical rod.
12. With top latch bolt extended, slide rod
member up rod so rod member finger
touches control cam.
13. Tighten set screws in rod member with 1/8"
hex wrench.
14. Test key, control, and exit device action.
Surface Vertical Rod Device
Application Schedule
2227
3327/3527
2227-F
3327A/3527A
9827/9927
3327A-F/3527A-F
9827-F/9927-F
374-T & 374-T-BE
Control
cam
Figure 1. Control cam position.
Cylinder plate
TL
NL
To change
cylinder plate,
remove screw
and washer
Figure 3. Cylinder plate.
1-877-671-7011
Mortise
cylinder
Mortise cylinder
cam must be in
position shown with
key removed; if
necessary, remove
cam and install in
correct position
Figure 2. Cylinder installation.
Wood door cover plate
Countersunk
washer with
1/4-20 oval
head screw
#14 wood screw
1/4-20 x 7/8"
undercut flat
head screw
Rub plate
Figure 4. Control and rub plate
application.
Customer Service
www.allegion.com/us
Installation Instructions
Cylinder nut
Rod
Rod member
Curved side of
rod member
finger faces down
Figure 5. Rod member position.
© Allegion 2014
Printed in U.S.A.
941146-00 Rev. 01/14-b
