- Page 1 Opendor IF-271 Door Handle OF-271-0xxx...
-
Page 2: Table Of Contents
Table of contents General information......................Short description....................... Scope of delivery ...................... Target group ......................Intended use ......................Notes on safety......................Installation and configuration..................... Installation......................... Configuration ......................Operation ..........................Opening a door ......................Activating/deactivating the permanently open mode ..........Maintenance, cleaning, and disinfection ................10 Battery replacement.................... -
Page 3: General Information

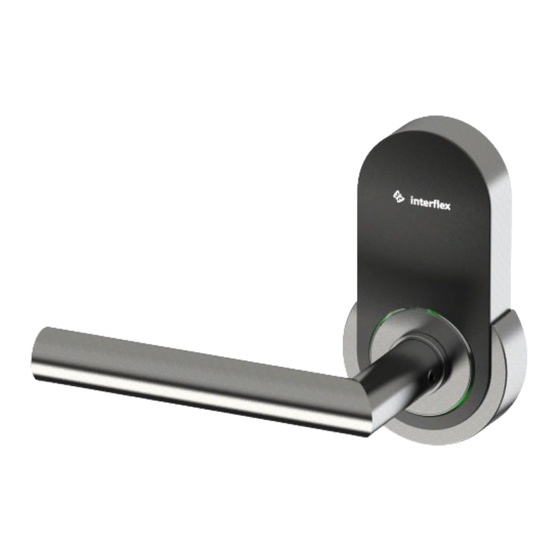

1 General information 1 General information 1.1 Short description The electronic door handle is the ideal solution for cost-effective, uncomplicated and wireless compliance with current security standards for a wide range of applications. IF-271 Door Handle offers stability through precisely manufactured mechanics and electronics as well as highest data security through the integrated Secure Element. - Page 4 1 General information Door Handle A0/B0 Installation using pre-drilled rosette holes Suitable for Euro profile (A0) and Swiss round (B0) cylinders Code Door thickness [mm] 38-60 59-80 79-100 100-200 © 2022 Interflex Datensysteme GmbH | IF-271 Door Handle | 06.22...
- Page 5 1 General information Door Handle A3 Installation on prepared tubular frame doors Code Door thickness [mm] 38-57 58-77 78-97 97-196 © 2022 Interflex Datensysteme GmbH | IF-271 Door Handle | 06.22...
-
Page 6: Scope Of Delivery
1 General information Door Handle A1 Installation on prepared glass doors 70 -79 Code Door thickness [mm] 38-60 59-80 79-100 100-200 1.2 Scope of delivery The package contains: IF-271 Door Handle 4 lithium batteries, CR2450, 3 V Assembly tool for battery change 95-10437 product info ©... -
Page 7: Target Group
1 General information Check the completeness and condition of the goods upon receipt and report any damage caused during transport immediately. 1.3 Target group This document is solely intended for experts and people trained in electrical engineering. Only perform the actions described in this document if you belong to this target group. Interflex Datensysteme GmbH is not liable for any damages caused by improper installation or initial operation. -
Page 8: Installation And Configuration
2 Installation and configuration NOTICE Damage due to electrostatic discharge (ESD) Electrical components and modules can be damaged by only slight, hardly noticeable electrostatic discharge (ESD) without this becoming immediately obvious. ESD damages result in malfunctions and even failure of the device. Make sure that effective protective measures against electrostatic discharge are in place when working on the open device. -
Page 9: Operation
3 Operation The technical manuals can be found on our website: https://interflex.com/de-de/services/wissenszentrum/ 3 Operation 3.1 Opening a door To open a door that is secured with, hold the credential in the read area of the component. Depending on the configuration, the lock is automatically locked after the closing time has elapsed or it remains unlocked until a new booking is made. -
Page 10: Maintenance, Cleaning, And Disinfection
4 Maintenance, cleaning, and disinfection IF-271 Door Handle indicates the Permanently open On log file entry: 3 x green Standard + Permanently open Green Permanently open Deactivating the permanently open mode Hold the credential up to the reader unit for more than three seconds IF-271 Door Handle indicates the Permanently open Off: Green/green/red Standard + Permanently open... -
Page 11: Battery Replacement
4 Maintenance, cleaning, and disinfection 4.1 Battery replacement NOTICE Damage due to improper handling of the batteries Improper handling of the batteries may damage the components and shorten the battery life. Batteries may only be changed by qualified personnel When changing batteries, wear grease-free, clean cloth gloves to prevent fingerprints from contaminating the batteries. -
Page 12: Reset (Cold Boot)
4 Maintenance, cleaning, and disinfection The battery clip is plugged in. If both ends of the clamp are pressed inwards and released from the holder at the same time, the battery clamp may fall out. Change the battery on one side first, then on the other. Do not open both ends of the clamp at the same time. -
Page 13: Technical Specifications
5 Technical specifications Procedure Click the cold start button The LED lights up in purple for 12 seconds, then orange for 10 seconds, and finally red for 2 seconds. Initiate a reset manually on the component 1. Dismount the component so that the reset button is accessible 2. -
Page 14: Disposal
6 Disposal General data Degree of protection IP40 Ambient temperature +4°C to +40°C Humidity Max. 95%, non-condensing Standards DIN EN 1634, DIN EN 179, DIN EN 1906 (class 4), DIN EN 1125 Variants Round rosette: A1 Euro profile cylinder, suspended mounting Round rosette: A0 Euro profile cylinder, B0: Swiss round, stationary mounting Oval rosette: A3 Euro profile cylinder for metal frame doors,... -
Page 15: Declarations Of Conformity
The original manual is in German. Other languages are translations of the original manual. Version: 06.22 Interflex Datensysteme GmbH +49 711 1322 - 0 Epplestraße 225 (Haus 3) interflex.info@allegion.com 70567 Stuttgart, Germany www.interflex.com © 2022 Interflex Datensysteme GmbH | All specifications are subject to change without notice.
