Connection Schematic; Zigbee Module - GE Arize Element Series Installation Manual

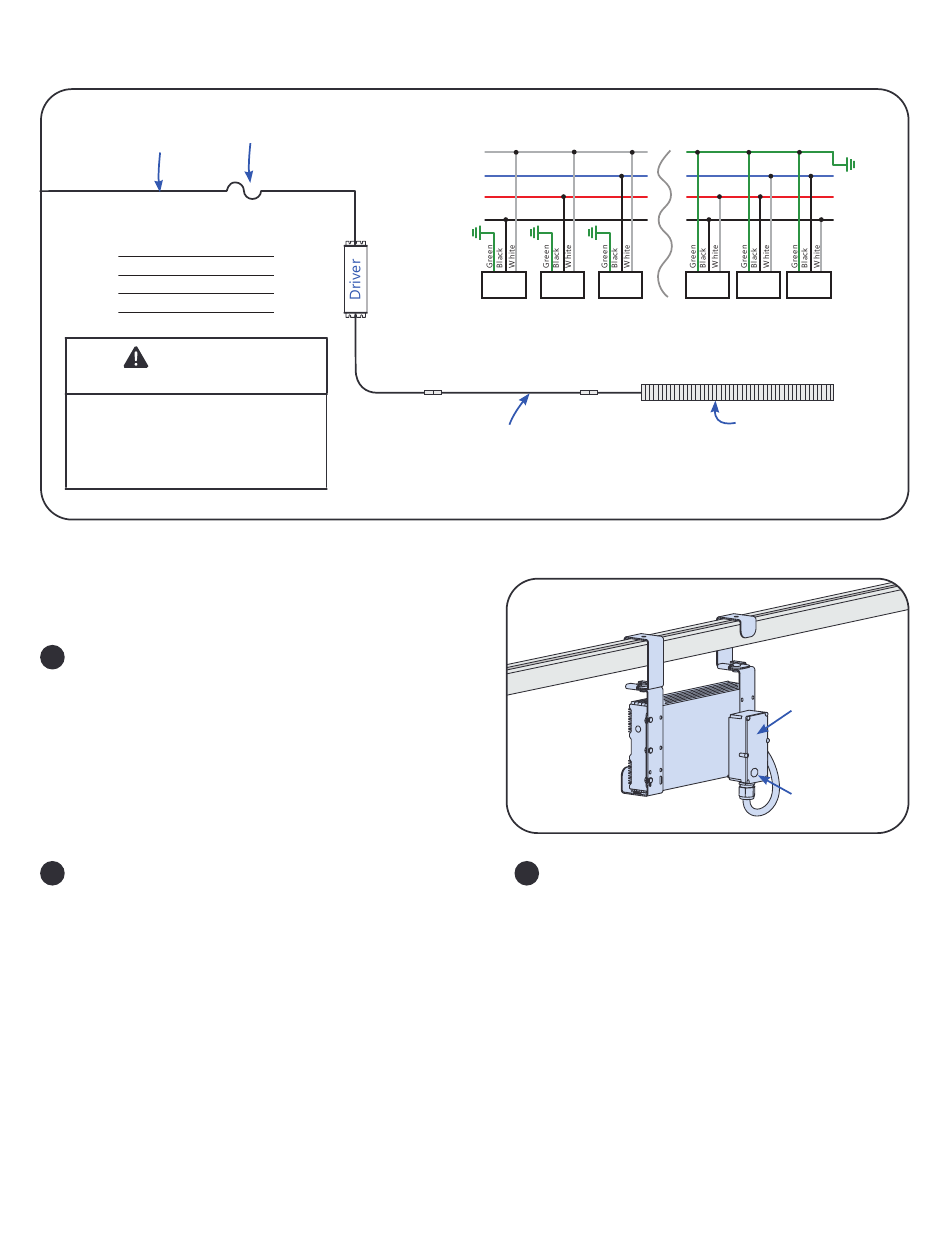

Connection Schematic

Use proper circuit
protection level
AC line
Driver Input Wire
Colors
Black = Line 1
White = Neutral or Line 2
Yellow/Green = Ground
WARNING /
AVERTISSEMENT
Ambient temperature surrounding each
driver must be lower than 113°F (45°C).
/ La température ambiante autour de
chaque module d'alimentation ne doit pas
excéder 113°F (45°C).

Zigbee Module

1
Record IEEE Addresses
Record each Zigbee module's IEEE address
(last 4 or 5 digits) with their physical locations.
This information will be useful during the
commissioning process for a marked-up copy
of the facility floor plan showing the identity
and location of each Zigbee module.
2
Initialize the ZigBee module
A) If not already powered up, energize the Zigbee
module by applying power to the driver input.
NOTE: If the Zigbee module has never join a network
(e.g. for new devices), go directly to section "Adding
the Zigbee modules to the Control Scope Manager."
Otherwise, perform step 2B.
B) Press and hold the RESET button for a minimum
of 10 seconds to reset the unit.
3-Phase Y
*
N
L3
L2
L1
Driver Driver
REPEAT FOR ENTIRE CIRCUIT BALANCING OUT EACH PHASE
*White = Neutral or Line 2
Optional 3', 6' or 12' inter-connection cable
NOTE: Maximum cumulative length of inter-connection cable is 12 feet.
3
Adding the Zigbee modules to the Control
Scope Manager
For new devices, the Zigbee module must first
be energized by applying power to the driver
input and joined to a network and configured
by following the instructions and online help
provided with the "Control Scope Manager"
(CSM) application.
5
3-Phase ∆
* *
Driver Driver Driver Driver
Light engine
IEEE Address
Reset Button
