GE Arize Element Series Installation Manual page 4

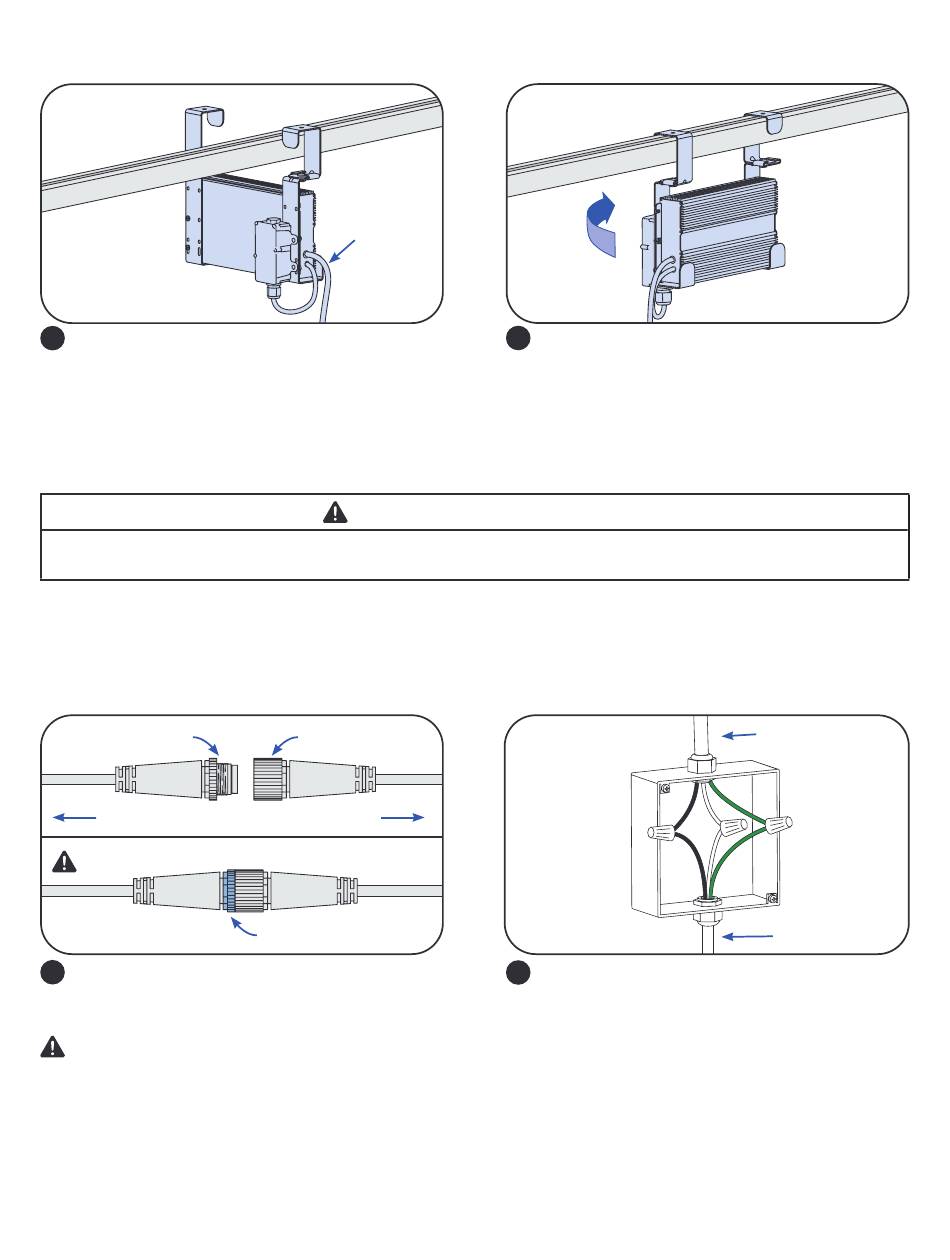

Hanging the Driver
3
Lift driver so that the structural member is
between the brackets.
NOTE: The base driver mounting kit is for a 1 5/8'' square structural member. For other structural
members, see accessories or contact your account manager.
RISK OF ELECTRICAL SHOCK: Turn power OFF before inspection, installation or removal.
RISQUE DE CHOC ELECTRIQUE: Coupez l'alimentation avant l'inspection, l'installation ou la désinstallation.
Driver Output
Electrical Connections
Male
Light module
5
Connect light module to driver output
Mate male connector from module with female
connector from DC output of driver.
Secure blue lock nut by turning
counterclockwise until tight ensuring water
tight seal and good connection.
Driver output
WARNING / AVERTISSMENT
Female
Driver
Secure locknut
4
Rotate driver so that the brackets can engage with
the structural member. Lower driver into position.
Driver Input
Electrical Connections
6
Connect driver input to AC line
Connect the green wire to the incoming ground
conductor. Connect the black wire to Line 1 and
white wires to Neutral or Line 2 of the incoming
AC line.
4
AC line
To driver input
