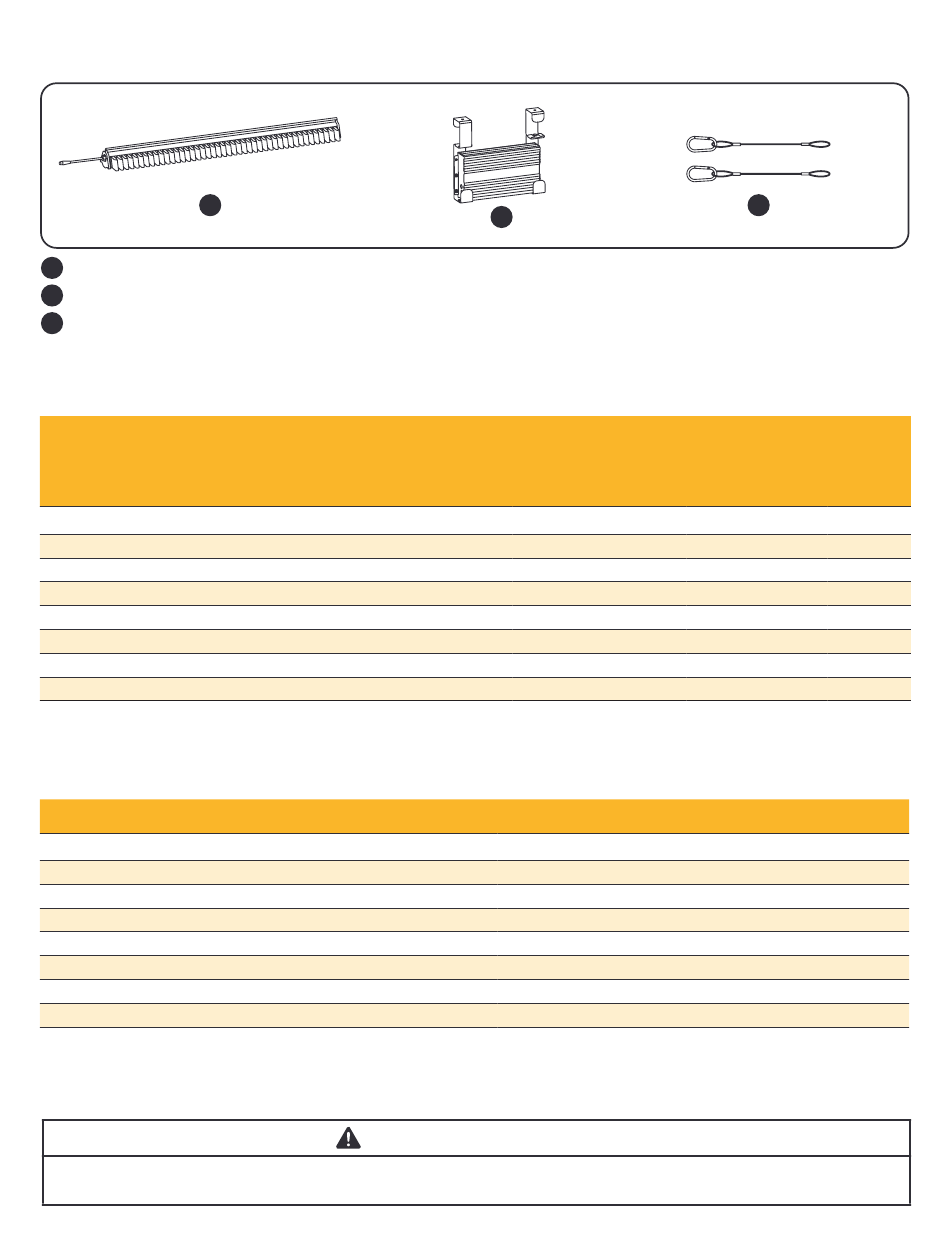

Specifications - GE Arize Element Series Installation Manual

Base Kit Components Supplied
1
1
Top Light module
2
Driver with brackets
3
2 x 0.8 ft. support cables with carabiners

Specifications

Description Detailed Description
GEHTL-HPPR4-2NZ1 Top light 4 ft purple reproductive, 641W
GEHTL-HPPB4-2NZ1 Top light 4 ft purple balanced, 641W
GEHTL-MPPR4-2NZ1 Top light 4 ft purple reproductive, 345W
GEHTL-MPPB4-2NZ1 Top light 4 ft purple balanced, 345W
GEHTL-HPPR4-3NZ1 Top light 4 ft purple reproductive, 627W
GEHTL-HPPB4-3NZ1 Top light 4 ft purple balanced, 627W
GEHTL-MPPR4-3NZ1 Top light 4 ft purple reproductive, 337W
GEHTL-MPPB4-3NZ1 Top light 4 ft purple balanced, 337W
Accessories
Description Detailed Description
GEHAK-NN-EB-N0 Light module 2' UL remote mount kit
GEHAK-NN-AC-N0 Light module 5' UL remote mount kit
GEHAK-NN-BD-N0 Light module 10' UL remote mount kit
GEHAK-DN-NN-N0 Driver 2¾" square member bracket
GEHAK-BN-NN-N0 Driver 2¾" pipe member bracket
GEHAK-AN-NN-N0 Driver 1 3/8" pipe member bracket
GEHAK-NN-NE-N0 Driver universal wire mount kit
*WAC 60 Wireless area controller
*A single WAC60 supports up to 200 fixtures. Customer needs to purchase WAC60 accordingly.
• Installation instructions and specifications for
accessories can be found in the accessory package.
2
Typical Operating
Voltages at 50/60Hz
120/208/240/277
120/208/240/277
120/208/240/277
120/208/240/277
Components
2 X 2 ft support cable + 3 ft UL DC cable + 2 Carabiners
2 X 5 ft support cable + 6 ft UL DC cable+ 2 Carabiners
2 X 10 ft support cable + 12 ft UL DC cable+ 2 Carabiners
2 X 2¾" square brackets
2 X 2¾" pipe brackets
2 X 1 3/8" pipe brackets
2 X 1ft driver support cables
1 Router
ATTENTION / ATTENTION
• Les instructions d'installation et spécifications pour les accessoires
se retrouvent dans le kit d'accessoires.
2
Driver Input Ratings
Maximum
(VAC) Current (A)
5.3/3.1/2.7/2.3
5.3/3.1/2.7/2.3
2.9/1.7/1.4/1.2
2.9/1.7/1.4/1.2
277/347/480 2.3/1.8/1.3
277/347/480 2.3/1.8/1.3
277/347/480 1.2/1.0/0.7
277/347/480 1.2/1.0/0.7
3
Power
Factor
> 0.9
> 0.9
> 0.9
> 0.9
> 0.9
> 0.9
> 0.9
> 0.9
