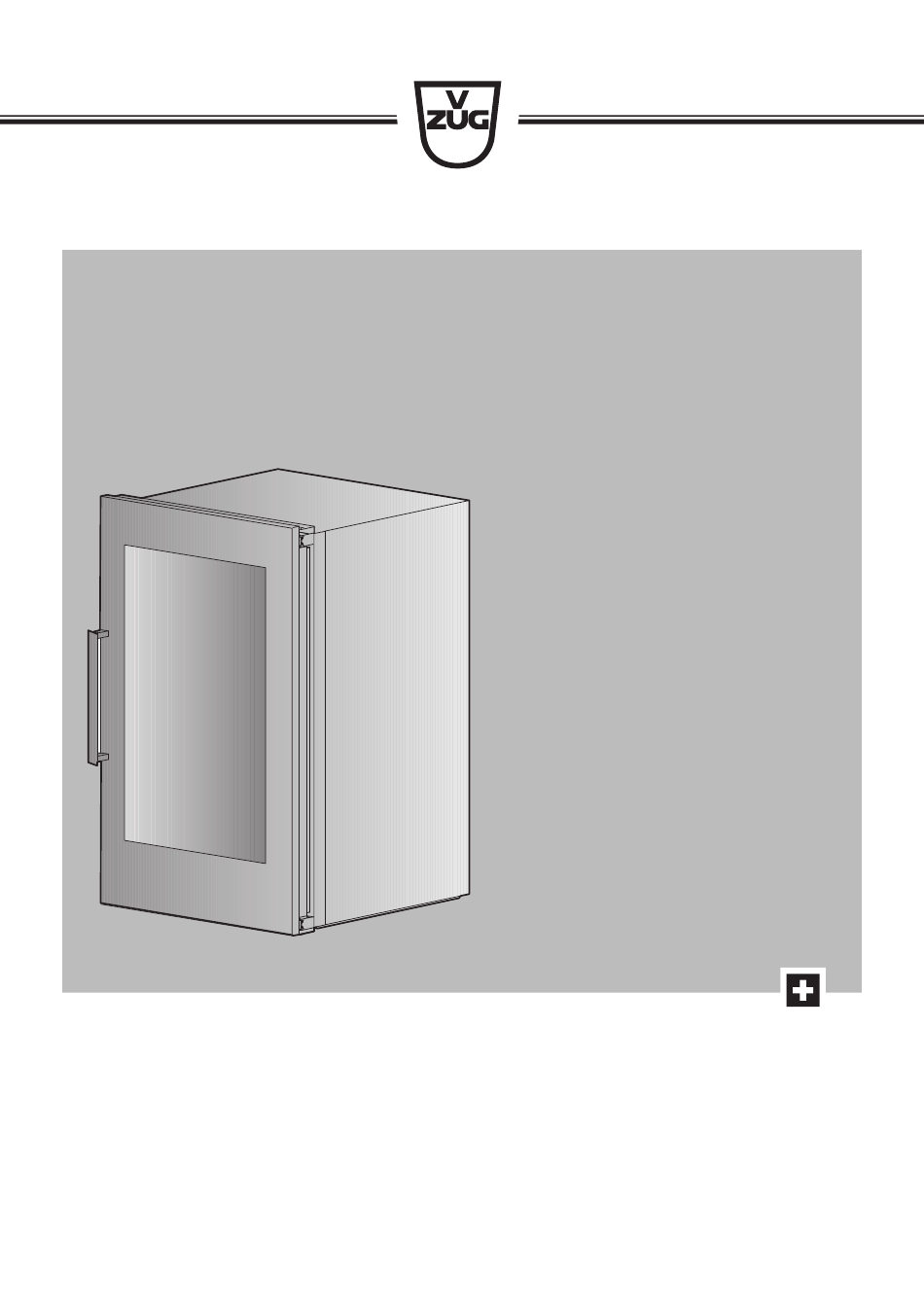

- Page 1 Operating instructions Winecooler SL/60 | Winecooler 90 SL 60 Refrigerating appliance...
- Page 2 Model designation Model number Size system Winecooler 90 SL 60 51082 Euro 60 Winecooler SL 60 51075 Euro 60 Winecooler SL 51074 SMS 55 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Service & Support 19 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Using for the first time 7 Appliance description 7 Structure .............. 7 Operating and display elements...... 8 Operation 8 Switching the appliance on ......... -
Page 4: Safety Precautions
Safety precautions Symbols used and have understood the haz- ards involved. Children shall Denotes important safety precau- tions. not play with the appliance. Failure to observe said precautions Cleaning and user mainten- can result in injury or in damage to ance shall not be undertaken the appliance or fittings! by children without supervi-... -
Page 5: Instructions For Use
1 Safety precautions ▪ This appliance is intended for use in the Instructions for use home and similar settings such as: in Before using for the first time staff kitchens in shops, offices and other commercial establishments; in ag- ▪ The appliance must be installed and ricultural establishments;... - Page 6 1 Safety precautions ▪ This appliance is CFC- and FC-free and contains small quantities of the environ- mentally friendly, but flammable refriger- ant isobutane (R600a). When handling the appliance take care not to damage the cooling circuit. Any refrigerant that escapes can ignite.
-
Page 7: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly. -
Page 8: Operating And Display Elements
4 Operation Operating and display elements Displays Buttons A Temperature display top ON/OFF B Status light top, green (white wine) Permanent illumination C Fast cooling top, yellow Temperature setting top D Status light bottom, green (red wine) Fast cooling top Temperature display bottom Temperature setting bottom Operation... -
Page 9: Fast Cooling
4 Operation Fast cooling Use the fast cooling function to chill a large number of bottles in the upper zone. It lowers the temperature in the upper cooling zone to 5 °C for 24 hours. ▸ Hold the button depressed for 3 seconds. –... -
Page 10: Shelves And Divider Shelf
5 Shelves and divider shelf Shelves and divider shelf Shelves Bottles can be stored on the shelves. Shelves with bottles stored on them must not be pulled out. (Not pull-out shelves) ▸ If there are any bottles on the shelf, re- move them. -
Page 11: Tips And Tricks
6 Tips and tricks Tips and tricks General information on using the appliance ▪ When closing the appliance door, make sure that it closes properly. The self-closing hinges help keep it closed: The appliance doors close automatically if the opening angle is between 20–30°. -
Page 12: Care And Maintenance
7 Care and maintenance Care and maintenance Cleaning Do not use any abrasive cleaning agents or scouring cloths. If the appliance has wooden shelves, simply clean them with a slightly damp cloth without any deter- gent. Risk of damage to the appliance. ▸... -
Page 13: Noises And Alarms
8 Noises and alarms Noises and alarms Operating noise The appliance can make various noises during operation. Although the appliance is noise-optimized, some noise cannot be eliminated completely. This noise depends on the size of the appliance, how it is installed and the cooling requirements (e.g. fast cool- ing), the ambient temperature and the installation conditions. -
Page 14: Trouble-Shooting
9 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please contact Customer Services. Before contacting Cus- tomer Services: ▸ please note down the serial number (SN), which is shown on the identification plate, as well as ▸... -
Page 15: Food Safety Contact
10 Technical data 10.1 Food safety contact PTFE Rubber, sil- PS, PPS, Glass Stainless PP, PBT, steel Material GB 4806.1-2016 GB 4806.5-2016 GB 4806.6-2016 GB 4806.7-2016 10.2 Note for testing institutes Arrangement of bottles Storage of 36 standard bottles of wine ac- cording to standard EN 62552 and IEC 62552. -
Page 16: Disposal
11 Disposal Disposal 11.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 11.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸... -
Page 17: Index
Index Correct use ............ 5 Service & Support..........19 Alarm ..............13 Setting the temperature ........8 Appliance disposal .......... 16 Shelves .............. 10 Arrangement of bottles ........15 Switching on ............8 Switching the appliance on....... 8 Symbols ..............4 Care.............. - Page 18 Notes...
- Page 19 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
- Page 20 B Status light top, green (white wine) Permanent illumination C Fast cooling top, yellow Temperature setting top D Status light bottom, green (red wine) Fast cooling top Temperature display bottom Temperature setting bottom 10180135 1030046-R03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
