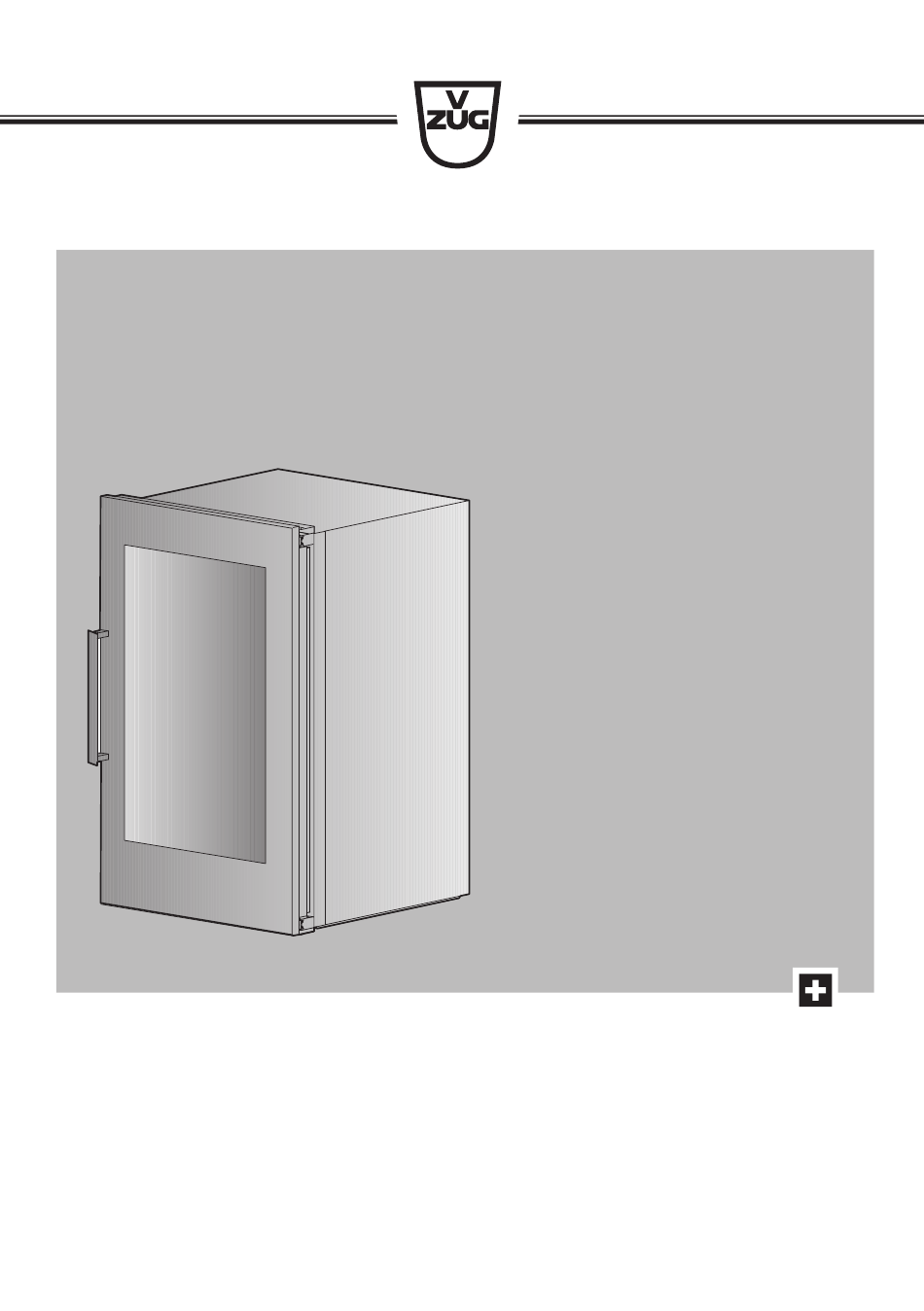

  • Page 1 Operating instructions Winecooler SL/60 | Winecooler 90 SL 60 Refrigerator...
  • Page 2 These operating instructions apply to: Model Product family Size system Winecooler 90 SL 60 51082 Euro 60 Winecooler SL 60 51075 Euro 60 Winecooler SL 51074 SMS 55 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2017...

  • Page 3: Table Of Contents

    Contents  2 1 Safety precautions  5 Symbols used ...................... 5 General safety precautions .................  6 Instructions for use .................... 7 2 Disposal  9 3 Using for the first time  10 4 Appliance description  11 Structure ....................... 11 Operating and display elements .............. 12 5 Operation  13 Switching the appliance on................ 13...
  • Page 4 11.3 Product fiche...................... 24 12 Index  25 13 Notes  26 14 Service & Support  27...

  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...

  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.

  • Page 7: Instructions For Use

    1 Safety precautions Instructions for use Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪...
  • Page 8 1 Safety precautions Note on use ▪ Do not operate any electrical devices inside the appliance. ▪ High-proof alcohol should only be stored tightly sealed and standing up- right. Do not store explosive materials in the appliance. Danger of explo- sion! ▪...

  • Page 9: Disposal

    Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪...

  • Page 10: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport material, as well as protective film, if any, from the interior. ▸ Clean the interior and accessories with lukewarm water or a mild alkaline solution, and dry completely.

  • Page 11: Appliance Description

    Appliance description Structure The appliance door cannot be reversed for technical reasons. Operating and display ele- ments Ventilation opening Position slider for divider shelf Shelves Divider shelf Ventilation slit LED light Appliance door Identification plate with serial number (FN)

  • Page 12: Operating And Display Elements

    4 Appliance description Operating and display elements Displays Temperature display top Status light top, green (white wine) Fast cooling top, yellow Status light bottom, green (red wine) Temperature display bottom Buttons ON/OFF Permanent illumination Temperature setting top Fast cooling top Temperature setting bottom...

  • Page 13: Operation

    Operation Switching the appliance on ▸ Plug in the appliance at the mains. – The status lights illuminate for 10 seconds. ▸ Hold the button depressed for 3 seconds. – The appliance is switched on. – The average temperature for the last 2 hours is shown in the corres- ponding temperature display.

  • Page 14: Fast Cooling

    5 Operation Fast cooling Use the fast cooling function to chill a large number of bottles in the upper zone. It lowers the temperature in the upper cooling zone to 5 °C for 24 hours. ▸ Hold the button depressed for 3 seconds. –...

  • Page 15: Button Lock

    5 Operation Button lock The button lock prevents a temperature setting or any other function from be- ing adjusted unintentionally. To override the button lock: ▸ Hold the desired button depressed for 3 seconds until the corresponding display or symbol flashes. ▸...

  • Page 16: Shelves And Divider Shelf

    Shelves and divider shelf Shelves Bottles can be stored on the shelves. Shelves with bottles stored on them must not be pulled out. (Not pull-out shelves) ▸ If there are any bottles on the shelf, remove them. ▸ Pull the shelf forwards, lift on the appliance door side and remove.

  • Page 17: Tips And Tricks

    Tips and tricks General information on using the appliance ▪ When closing the appliance door, make sure that it closes properly. The self-closing hinges help keep it closed: The appliance door closes automat- ically from an opening angle of 20–30°. ▪...

  • Page 18: Notes On Saving Energy

    7 Tips and tricks Notes on saving energy ▪ Only open the appliance door when necessary and keep it open for as short a time as possible. The sooner the appliance door is closed, the less cold air escapes. ▪ Make sure the appliance door is closed correctly. The door seal must align properly with the appliance frame.

  • Page 19: Care And Maintenance

    Care and maintenance Cleaning Do not use any abrasive cleaning agents or scouring cloths. If the appliance has wooden shelves, simply clean them with a slightly damp cloth (no detergent necessary). This may damage the appliance. ▸ Clean the interior, as required, with a mild soapy solution and wipe dry thor- oughly.

  • Page 20: Noises And Alarms

    Noises and alarms Operating noise The compressor and the cooling circuit make various noises while the appli- ance is running. Although the appliance is fitted with a quiet compressor and a noise-optimized cooling circuit, certain noises cannot be completely avoided and their volume depends on how it is installed and on the cooling require- ments (e.g.

  • Page 21: Warning Signal And Alarm

    9 Noises and alarms Warning signal and alarm An acoustic signal is emitted to alert the user to a problem in the following in- stances: ▪ If the appliance door is left open for longer than 5 minutes. ▪ If the cooling temperature rises 10 °C above the set temperature. ▸...

  • Page 22: Trouble-Shooting

    Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If another fault is displayed or the fault cannot be remedied, please call Customer Services. Before calling Customer Services: ▸ Please note down the serial number (FN; see «Technical data» for the iden- tification plate) and the error message in full, e.g.

  • Page 23: Technical Data

    Technical data External dimensions ▸ See installation instructions Electrical connection ▸ See identification plate 11.1 Note for testing institutes Arrangement of bottles Storage of 36 standard bottles of wine according to standard EN 62552 and IEC 62552. 11.2 Temperature measurement The cooling temperatures in the appliance are measured according to an inter- nationally accepted standard.
  • Page 24 11 Technical data 11.3 Product fiche In accordance with EU Regulation No. 1060/2010 Brand – V-ZUG Ltd Model name Winecooler SL/60 Winecooler 90 SL Category – 2 (wine storage appliance) Energy Efficiency Class – Annual Energy Consumption AEC kWh per...
  • Page 25 Index Alarm ............... 21 Packaging ............9 Appliance, switching on....... 13 Product family..........2 Arrangement of bottles ........ 23 Product fiche..........24 Button lock ............. 15 Queries ............27 Care..............19 Safety ..............9 Cleaning............19 Safety precautions Construction........... 11 Correct use.......... 7 General........... 6 Service &...
  • Page 26 Notes...
  • Page 27 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progress- ive service agreements.
  • Page 28 1030043-R01 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
