convenience concepts NORTHFIELD HALL CONSOLE Series Assembly Instructions

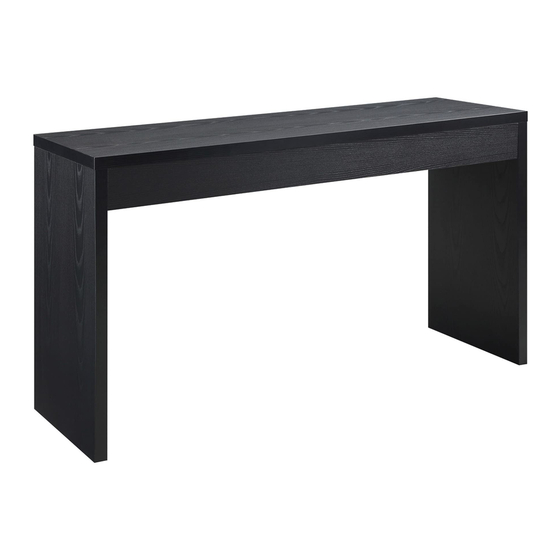

NORTHFIELD HALL CONSOLE

111091WW

111091WGY 111091BL 111091A

ASSEMBLY INSTRUCTIONS

We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,

step by step instructions will guide you through the project from start to finish .

Feel confident that this will be a fun and rewarding project . The final product will be a quality

piece of furniture that will go together smoothly and give years of enjoyment .

Please do not return to the store

STOP

Broken or missing parts?

Need help with assembly?

If you have any questions just call 1-800-468-6447 or email us at

parts@convenience-concepts.com

111091CH 111091W

Table of Contents

Need help?

Do you have a question about the NORTHFIELD HALL CONSOLE Series and is the answer not in the manual?

Page 1 NORTHFIELD HALL CONSOLE 111091WW 111091CH 111091W 111091WGY 111091BL 111091A ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish . Feel confident that this will be a fun and rewarding project .
Page 2 Hardware List Cam bolt ( 14pcs ) Glue ( 1pc ) Camlock ( 14pcs ) Wood dowel ( 4pcs ) Panel List Front support panel (1pc) Back support panel (1pc) Left side panel (1pc) Right side panel (1pc) Top panel (1pc) Assembling the unit with camlocks and wood dowels.
Page 3 Step 1 1.Screw cam bolts (A) into left side panel and right side panel 2.Insert camlocks (B) into front support panel and back support panel 3.Connect side panels to support panels as shown , by gently tightening camlocks. Step 2 1.Place top panel upside down on carpet or another soft surface .
