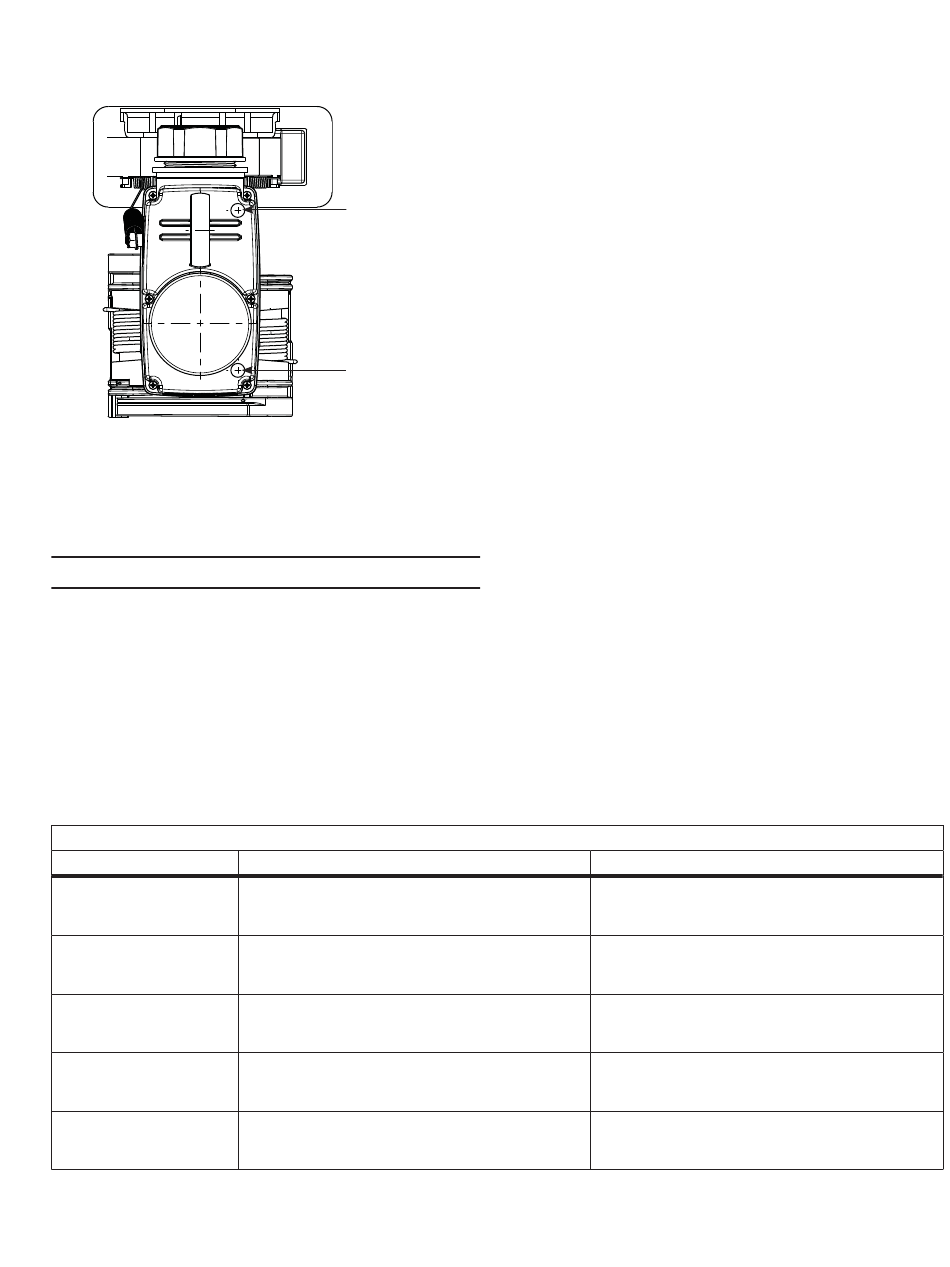

Figure 7.
Smart Sensor LED designations.
Installation of smart sensor – overhead application
IMPORTANT
Install the sensor a minimum of ten (10) feet from any struc-
ture on the conductor, including any poles.
1.
Arm the FCI clamping mechanism by carefully grasping
both clamping arms, pulling them apart until the trigger
mechanism drops into place. Stops have been built into
the clamping arms such that they can only be opened
to the point where the trigger will latch (Figure 5).
Table 1. LED annunciation during cellular activation
Sequence step (in order)
Initialization
Initialization Failure
Initialization Complete
Successful Cellular Activation
Failed Cellular Activation
Load LED
Source LED
Source LED
A single pulse green LED.
®
Bluetooth
and cellular modules are unavailable and device
will not respond to reed switch.
LED will blink red continuously.
Contact Factory for assistance after attempting to force an
OTASP or inserting a new SIM card.
A double pulse green LED.
®
Bluetooth
module is available for programming sensor by
reed switching device.
Three yellow LED flashes in succession ten times.
Indicates sensor has received IP address from
network
Three (3) red LED flashes in succession ten (10) times.
Contact utility network administrator to verify proper
configuration of cellular account.
GridAdvisor Series II smart sensor
2.
For applications where the cable diameter is less than
1" , leave the clamp pads attached to the clamp arms.
On installations where the cable diameter exceeds 1" ,
remove the pads that are attached to each clamping
arm. Removing the pads will allow the clamping
mechanism to properly attach to larger diameter cables
(Figure 4, Figure 6).
3.
Attach the sensor to a hotstick using the pulling eye.
4.
Push the sensor onto the cable conductor. Ensure
that the CT is around the conductor and good contact
is made between the ends of the CT. The triggering
mechanism will release the clamping arms from the
latched position, to securely attach the device to the
cable.
Sensor display operation
The GridAdvisor Series II smart sensor has two multicolor
light emitting diodes (LEDs) used for annunciating functional
tasks and the status of the smart sensor. Each LED will be
referred to as Source and Load LED in the context of the
labels found on sensor per Figure 7 .
Device activation
The LEDs provided on the GridAdvisor Series II smart
sensor provide annunciation during the activation process of
the sensor onto the cellular network at time the battery is
installed.
Load LED
A single pulse green LED.
®
Bluetooth
and cellular modules are unavailable and device
will not respond to reed switch.
LED will blink red continuously.
Contact Factory for assistance after attempting to force an
OTASP or inserting a new SIM card.
A double pulse green LED.
®
Bluetooth
module is available for programming sensor by
reed switching device.
Three yellow LED flashes in succession ten times.
Indicates sensor has received IP address from network
Three (3) red LED flashes in succession ten (10) times.
Contact utility network administrator to verify proper
configuration of cellular account.
Installation Instructions MN915001EN June 2016
5
