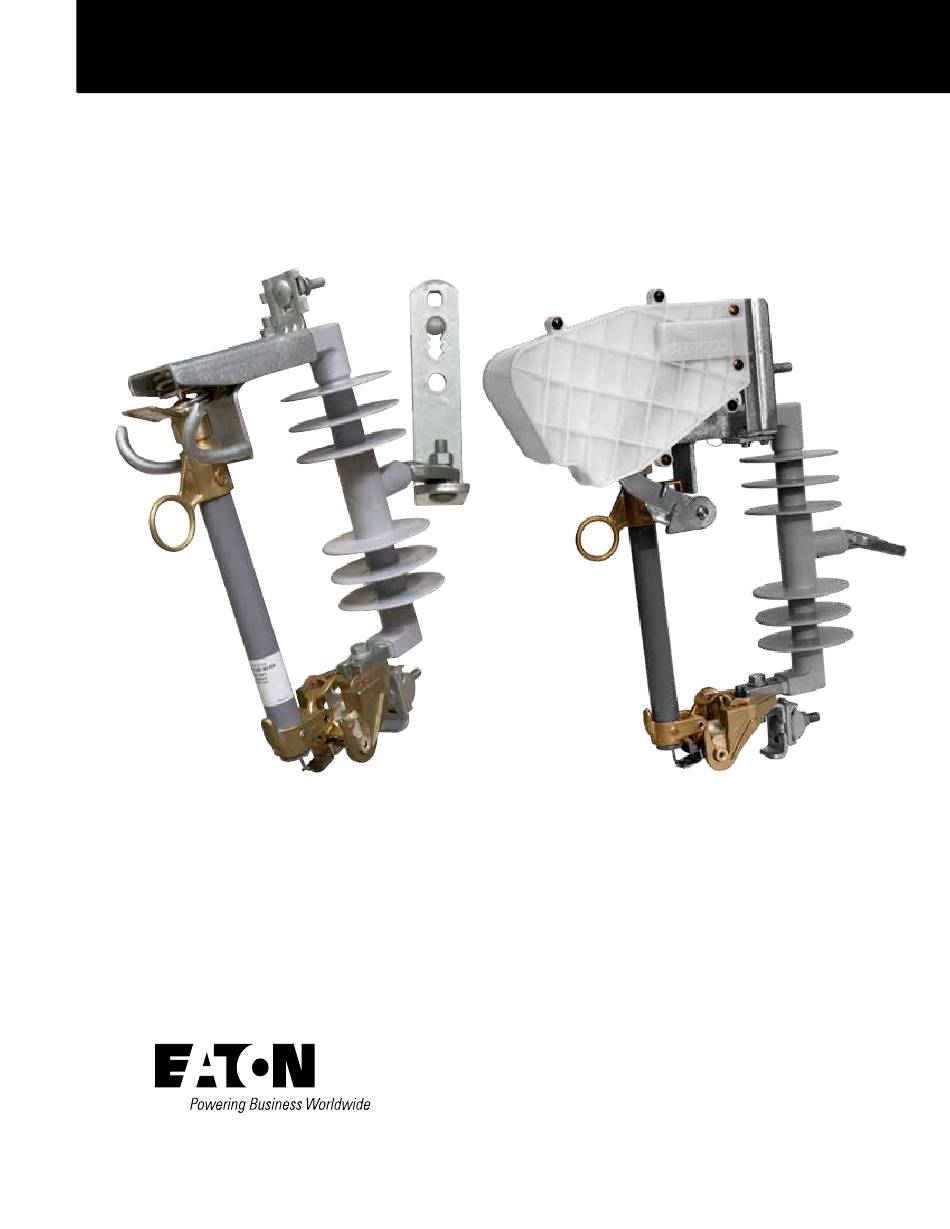

COOPER POWER Cutouts and Fuse Links SERIES Effective January 2016 MN132007EN Supersedes November 2015 ® UltraSIL polymer-insulated and porcelain Types L and LB open distribution cutout installation instructions...
Page 2
CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other- wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to damage or...
FOR LIFE FOR LIFE Eaton meets or exceeds all applicable industry standards relating to product safety in its Cooper Power™ series products. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing, and service.
Product information UPPER CONNECTOR Introduction SLEETHOOD Eaton's Cooper Power™ series UltraSIL™ Polymer- MOUNTING insulated and Porcelain Types L and LB interchangeable UPPER BRACKET CONTACT cutout will accept expulsion fuseholders and disconnect ASSEMBLY blades (refer to Figure 1). The cutout’s primary function...
Installation procedure Connecting electrical leads Loosen upper and lower connectors (See Figure 1). The Type L cutout must be properly selected for each When using aluminum conductors, wire brush installation with consideration to recovery voltage, conductors and apply a coating of oxidation continuous current, basic impulse insulation level (BIL), and inhibitor before inserting conductor into connector.
Page 7
Holding the lower end of the fuseholder, rotate the flipper fully about its pivot until it reaches its stop. Hold the flipper in this position and feed the fuse link cable through the flipper channel and feed the cable around the fuse link clamping bolt in a clock- ARC SHORTENING ROD wise direction.
Operation Remove the hook stick from the pull ring carefully to avoid opening the fuseholder. When the fuseholder clears a fault, the dropout mechanism WARNING should allow it to drop open in the cutout. Do not attempt to interrupt load current by pulling CAUTION on the fuseholder pull ring to open the cutout.
Dimensional information 5.00" (127 mm) 4.13" (105 mm) 5.16" (131 mm) 2.63" (67 mm) (standard bracket) 5.88" (149 mm) (extended bracket) Figure 9. UltraSIL polymer-insulated Type L cutout assembly shown. Dimensions apply to both UltraSIL polymer-insulated and porcelain Type L cutouts. Table 3.
Page 10
Figure 10. Polymer-insulated Type LB cutout assembly shown. Dimensions apply to both polymer-insulated and porcelain Type LB cutouts. Table 4. Polymer-Insulated and Porcelain Type LB Cutouts Dimensional Data (refer to Figure 10) Creepage Distance Dimensions inches (mm) inches (mm) Voltage Rating Polymer Porcelain...
Page 11
This page is intentionally left blank. TYPES L AND LB CUTOUT INSTALLATION INSTRUCTIONS MN132007EN...
