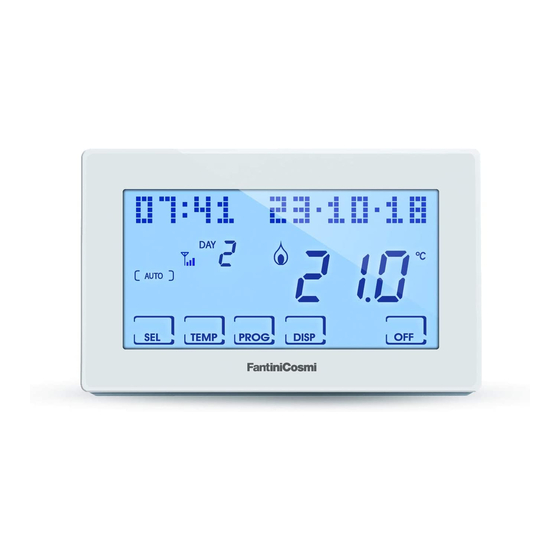

Intellicomfort CH180
Weekly programmable thermostat touch screen,
with batteries
Electronic programmable thermostat with microprocessor, white positive backlight LCD touch screen, and weekly
program to control the heating and air-conditioning systems.
Temperature
range
CH180
2 ÷ 40 °C
ELECTRICAL CHARACTERISTICS
Power supply without connection to the electric circuit with two 1,5 V AA alkaline batteries
Insulation class: II
Pulse voltage: 4000V
Connection: 3 screw terminals (contact switching NC and NO)
Type of action: 1BU (micro disconnection)
Software: A class
HOMOLOGATION AND STANDARDS
Complies with EN 60730-2-9 standards.
ErP Class IV; 2% (Reg. EU 811/2013 - 813/2013)
72
Preset
Displayed
differential*
temperature
0,3 K
-35 ÷ 50 °C
Adjustable
Power supply
antifreeze
temperature range
0 ÷ 7 °C
2 batteries AA 1,5V
* Differential values are related to a thermal gradient of 4K/h
127
24
Contact
rating
5(3)A 250Vac
Advertisement
Table of Contents
Related Manuals for Fantini Cosmi Intellicomfort CH180
Summary of Contents for Fantini Cosmi Intellicomfort CH180
- Page 1 Intellicomfort CH180 Weekly programmable thermostat touch screen, with batteries Electronic programmable thermostat with microprocessor, white positive backlight LCD touch screen, and weekly program to control the heating and air-conditioning systems. Temperature Preset Displayed Adjustable Power supply Contact range differential* temperature...
- Page 2 INSTALLATION Intellicomfort CH180 has to be installed on the wall or in a 3 modules or round flush mounting box, at about 1,5 meters above the floor. OPERATION Intellicomfort CH180 has 6 touch-keys, which function depends on the situation and is described by the symbol that appears on the display.
-
Page 3: Special Functions
In the Auto mode it is possible to set 3 temperature levels (T1-T2-T3). 8 11.30 22.30 24h JOLLY Intellicomfort CH180 programmable thermostat manage the system using 1 °C JOLLY back to the AUTO mode temperature that can be set on a variable period between 1 and 240 hours. - Page 4 FANTINI COSMI SYSTEM Separate probe 2-wire connection EC18 External probe EC19 Floor probe EC20 Ambient probe...
