Elektrischer Stellantrieb
Electric actuator
Siłownik elektryczny

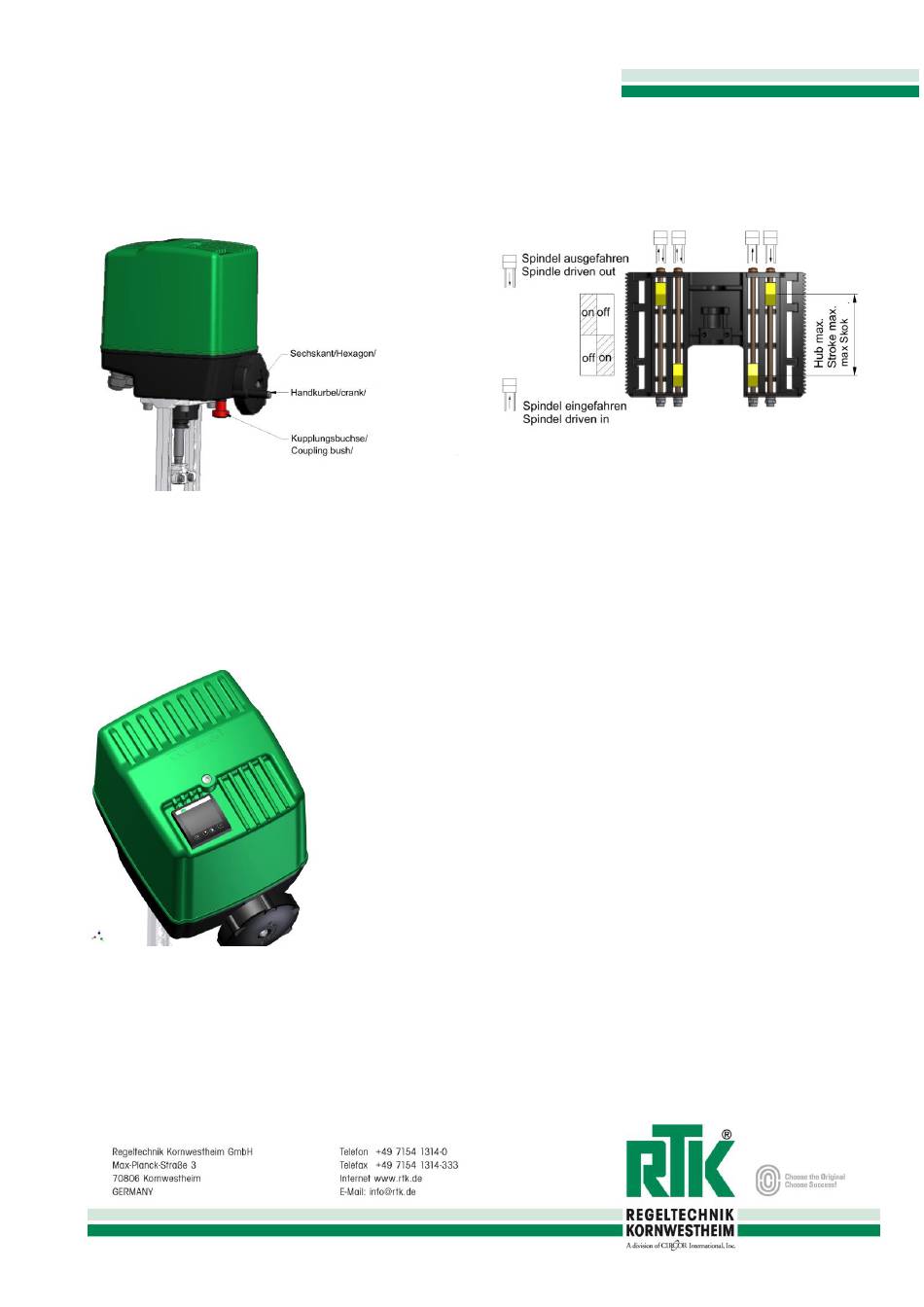

Rys / Fig. 01: Betätigung der Handverstellung/
Activation of manual operation / Przejście do trybu
ręcznego
Rys / Fig. 03: Qube, 1 Kanal PID Prozessregler / 1-channel PID
process controller / 1-kanałowy regulator PID
07/2016
Trzpień się wysuwa
klucz sześciokątny
kółko ręczne
Trzpień się chowa
Sprzęgło
Rys / Fig. 02 : Einstellung der Wegschalter und des Endlagenschalters /
REact 30DC-7050
Adjustment of intermediate position switches and end
limit switches / Nastawy wyłączników krańcowych oraz
dodatkowych końcówek pośrednich
