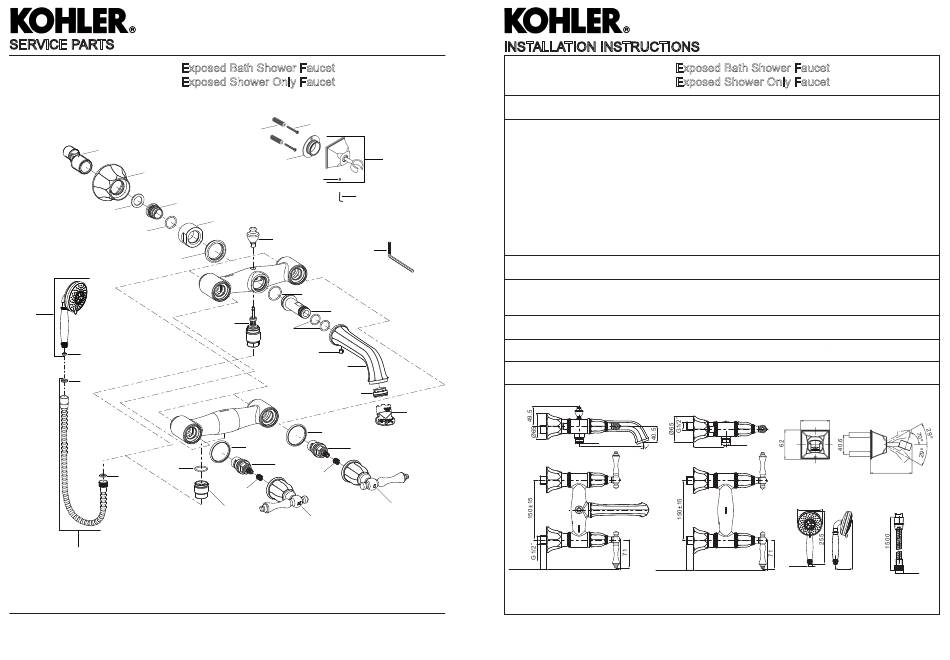

SERVICE PARTS
99030T-4

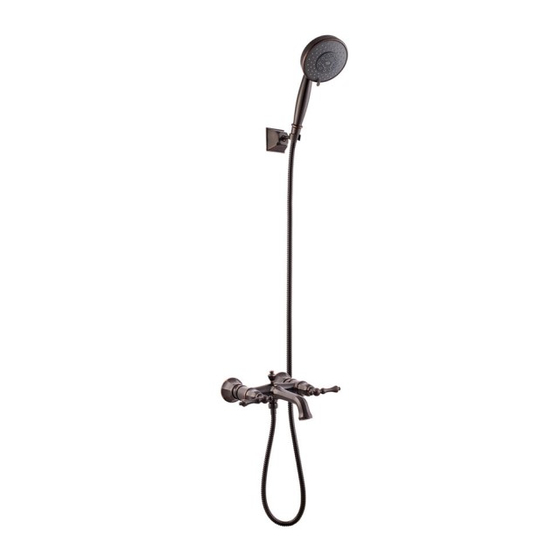

Exposed Bath Shower Faucet
99031T-4
Exposed Shower Only Faucet
1170944**
1213393**
864471
1218659
870992
1213391**
1189866**
1030624
880010
870721
880010
99030T/99031T-4-RGD:831727**
99030T/99031T-4-2BZ:1202014**
99030T/99031T-4-CP:1248781**
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1213402-2A-E
KELSTON
1119427
1120988
1045299**
1032149**
56283
77434
865225**
1213392**
834638
77954
1213399
1214971**
870944
3002768
1213400**
3005148
1213390**
1213390**
837207
837206
78125
78125
1214821**
864922**
1214820**
Installation INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
3. The highest working pressure for handspray & showerhead is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handspray,
showerhead and the shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Left handle opens with turning counter-clockwise, right handle opens with turning clockwise. Lift the diverter button
gently, handspray works.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
3006148
G1/2˝
MAX 15.7
185.3
99030T-4
4
1213402-2A-E
99030T-4
Exposed Bath Shower Faucet
99031T-4
Exposed Shower Only Faucet
G1/2˝
160
82.3
20º
185.3
MAX 15.7
99031T-4
KELSTON
62
89
Multi-function Handspray
Hose
Ø122
G1/2˝
G1/2˝
79
G1/2˝
1
