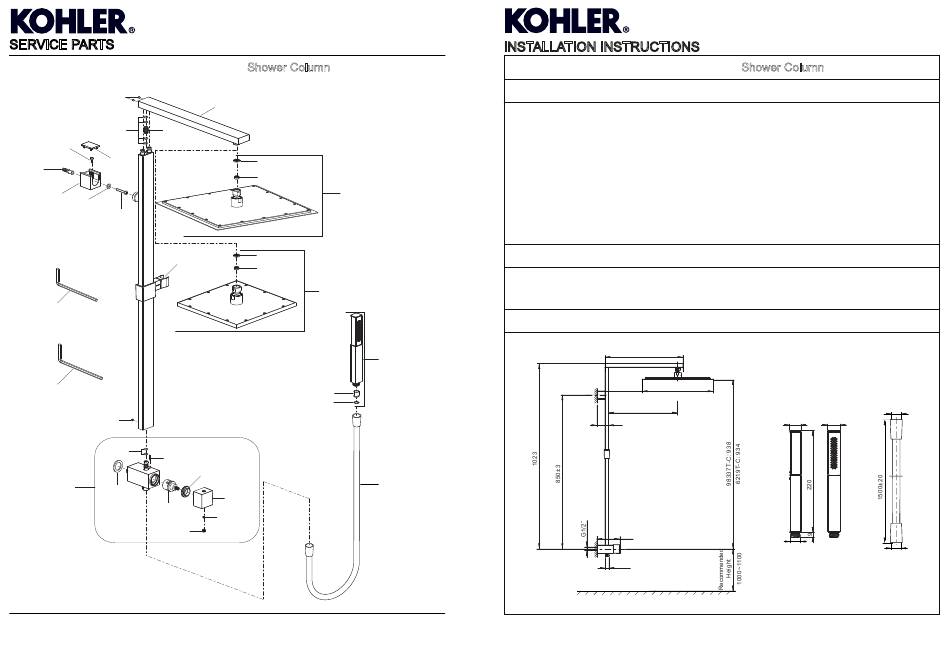

SERVICE PARTS
98337T-C
3013706
42045
1158490
3010643
1159770
1082904
1148983**
1092935
1109469
1148979**
833730
3010849
3013706
42045
833548
1137478**
1167535**
1109613
1173737
1162076**
**Color code must be specified when ordering
1268045-2A-A
6219T-C
Shower Column
1153546**
77420
1030624
98337T-C:1260900**
77420
1030624
6219T-C:1261848**
79680
85549
1148976**
3013706
LOURE
Installation INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Shut off the water supplies to the fitting.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. Recommended minimum working pressure is 0.2MPa(2bar).
5. The highest working pressure for shower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer is
needed. The highest water and environment temperature is 60ºC. Please keep showerhead, handshower and
shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Turn the diverter handle upwards to the side with handshower logo, the handshower will work; turn it upwards
to the side without any logo, both showerhead and handshower will work; turn it upwards to the side with
showerhead logo, the showerhead will work.
ROUGH-IN DIMENSIONS
1101257**
1248781**
Finished Floor
4
1268045-2A-A
98337T-C
6219T-C
Shower Column
430
98337T-C: 384×384
6219T-C: 254×254
380
65
24
126
G1/2˝
G1/2˝
LOURE
G1/2˝
28
G1/2˝
1
