Kohler AVID 97345T-4 Installation Instructions

SERVICE PARTS

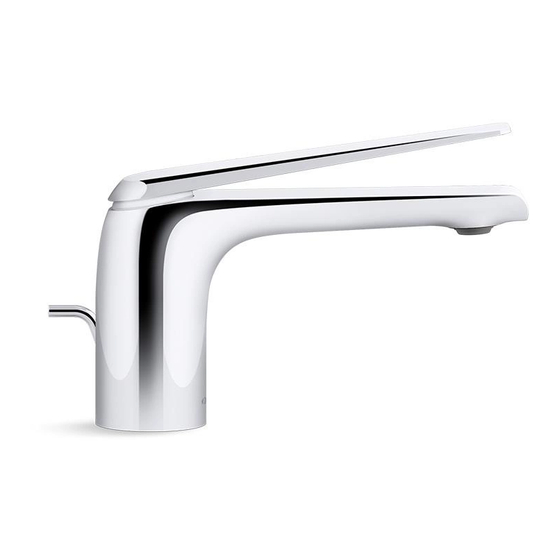

97345T-4 Single Handle Lavatory Faucet
97347T-4 Tall Single Handle Lavatory Faucet
97348T-4 Super Tall Single Handle Lavatory Faucet
1244428**
1344636**
46023
1331655
1343774
1343773
1310075
1080817
1231664
1231664
834704
1176997
1228834
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1248990-2A-B
1249005
3022101**
1149430-A**
833730
3006148
1146748
1231664
1167767**
1080817
880406
1167771
1167770
AVID
INSTALLATION INSTRUCTIONS
97345T-4
97347T-4
97348T-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. If possible, install this faucet before installing the lavatory.
3. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
Lift handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
Ø51
Ø32~Ø38
G1/2˝
4 1248990-2A-B
Single Handle Lavatory Faucet
Tall Single Handle Lavatory Faucet
Super Tall Single Handle Lavatory Faucet
173
148
3.5°
Ø68
27
Ø43
Ø38
Ø58
Ø36.5
135
176.5
Ø31.75
97345T-4
AVID
173
148
3.5°
Ø68
Ø51
27
Ø32~Ø38
Ø43
Ø38
Ø58
Ø36.5
G1/2˝ 135
176.5
Ø31.75 97347T-4
1
