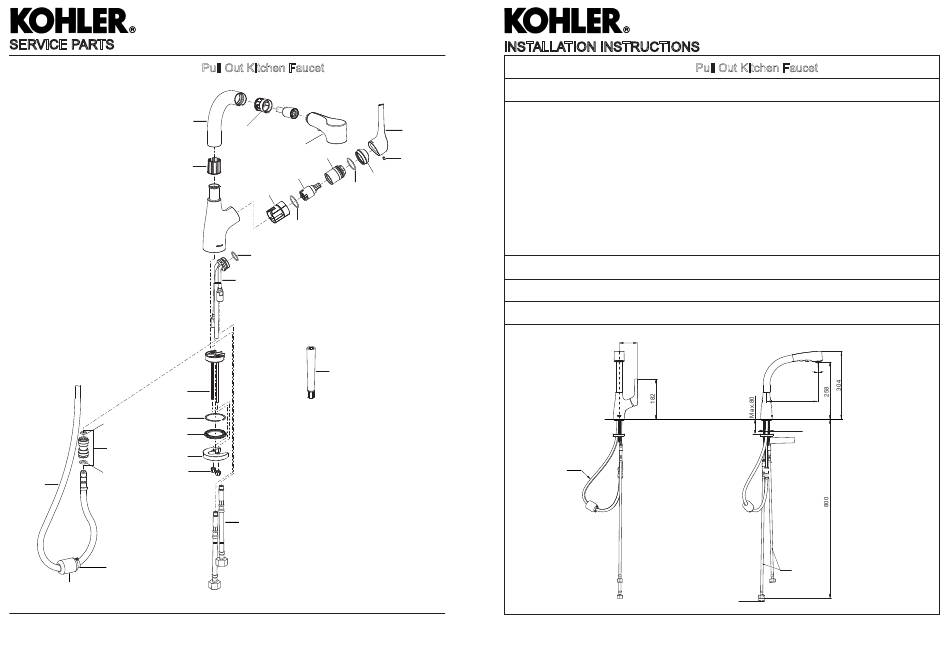

SERVICE PARTS
13963T-B4
1105827**
1106464
1153263
1102621
1036389
1106466
1104495
1106107
1128042
29296
1153137**
101131
1046153
**Color code must be specified when ordering
1230981-2A-C

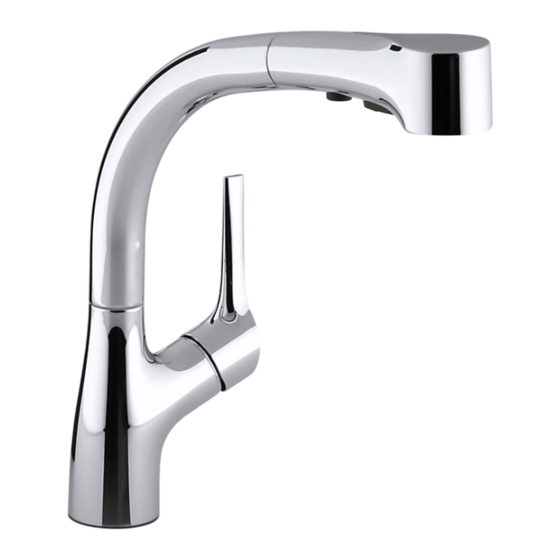

Pull Out Kitchen Faucet
1103431
1229188**
1106462**
1232536
1132368**
38676
1106461
38676
70012
1229484
1111585
880096
ELATE
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
1243690**
Please leave these instructions for the consumer. They contain important information.
56283
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. For new installations, assemble the faucet to sink before installing.
3. The highest working pressure for handspray & shower head is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handspray,
shower head and the shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for cold water, turn counter-clockwise for hot water.
ROUGH-IN DIMENSIONS
4
1230981-2A-C
13963T-B4
Pull Out Kitchen Faucet
82
1700
G1/2˝
ELATE
2.5º
228
Ø36~Ø42
616
1
