Pull-out kitchen faucet

Advertisement

Quick Links

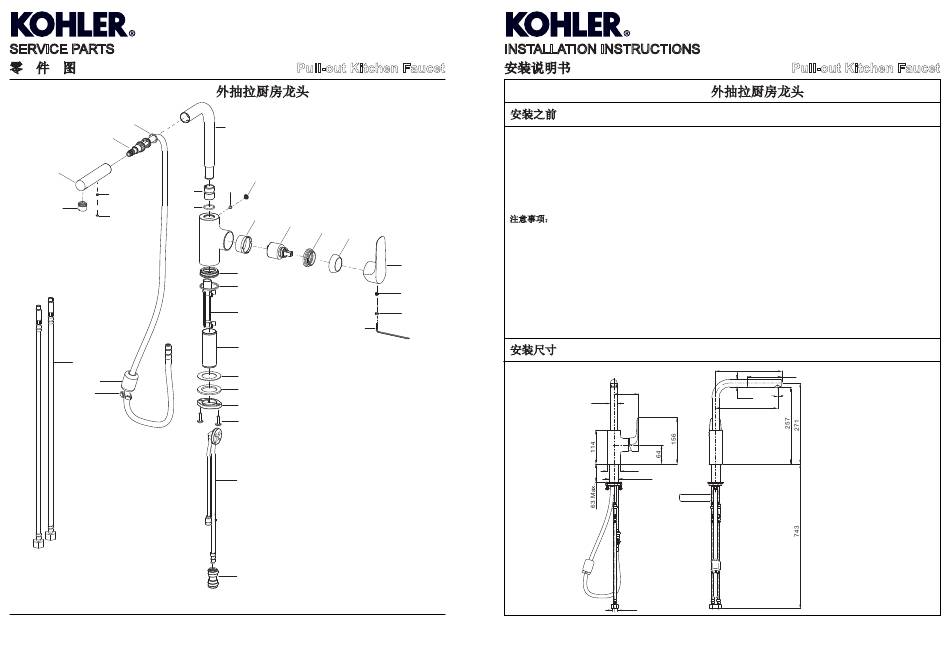

SERVICE PARTS
零 件 图
99175T-4E2 外抽拉厨房龙头
1073951
1217928
1217935**
871578
832751
1431954**
870992
1217942
880096
1004899
101131
**订购时请说明颜色编号
**Color code must be specified when ordering
1433168-2-A
利奥
ALEO
Pull-out Kitchen Faucet
1217925**
1213241
834683
1217934
1068078
1217944
1213242**
1217924
1223415
1217943
833730
1066106
22352
1229693
1267359
58946
1217930
1104495
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容,请
把这些资料交给用户阅读。
注意事项:
1.一定要先彻底冲洗供水管以清除管道中的杂质。
2.如果是安装新的洗涤盆,可将水龙头先装到洗涤
盆上。
1217945**
3.花洒最高工作压力:0.5MPa(5bar)。水压超过
0.5MPa(5bar)时必须安装减压阀。花洒最高工作温
度及环境温度:60ºC。请特别注意花洒同花洒连接
833438
的臂管须远离浴霸,否则可能损坏花洒及其密封件,
甚至对使用者造成伤害。
3008523
安装尺寸
4
1433168-2-A
99175T-4E2 外抽拉厨房龙头
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. For new installations, assemble the faucet to sink
before installing.
3. The highest working pressure for handspray &
shower head is 0.5MPa(5 bar). If it exceeds 0.5MPa(5
bar), a pressure reducer is needed. The highest water
and environment temperature is 60ºC. Please keep
handspray, shower head and the shower arm away
from heater, or it may become damaged and cause
injury to the user.
ROUGH-IN DIMENSIONS
235
88
Ø25
Ø25
221
Ø46
Ø35~Ø40
G1/2˝
利奥
ALEO
Pull-out Kitchen Faucet
123
99175T-4E2
1
