Kohler LOURE 97909T-4 Installation Instructions

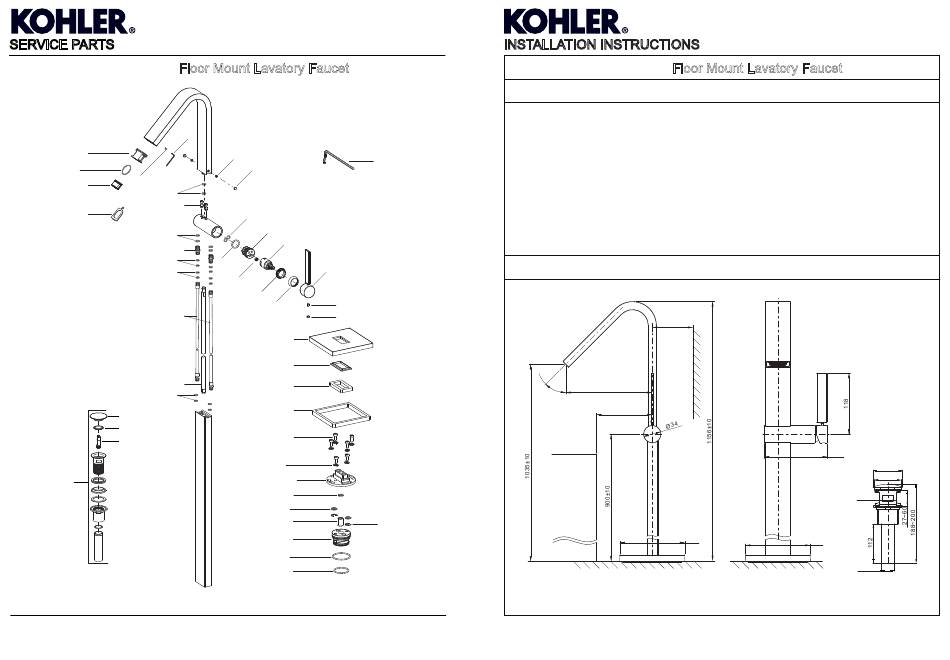

SERVICE PARTS
97909T-4 Floor Mount Lavatory Faucet
1115710
1245449
38676
1267498
1113689
77950
1245353
1115726
77950
1245342
32698
32698
1245325
1245343
32698
1102890**
1102891
1102892
1142103**
**Color code must be specified when ordering.
1262283-2A-C
LOURE
1017949
1177225
3008523
870654
1245339
1086390
32725
1245323**
1123942
3010715
3010970**
833438
3008523
1245373**
1245375
1245376
1245374
1082901
65218
1245349**
1267500
871624
1245377
1245350
1245352
871128
3008316
INSTALLATION INSTRUCTIONS
97909T-4
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
3. Observe local plumbing codes.
4. Please purchase the matched mounting base 97904T-NA before install the faucet.
5. Check for leaks before install the faucet, repairs as needed.
6. The hightest working pressure for faucet is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer
is needed. Or maybe damage the faucet.
ROUGH-IN DIMENSIONS
45º
167
Basin
The ground
4 1262283-2A-C
Floor Mount Lavatory Faucet
90 Min.
90 Min.
125
LOURE
122
Ø69
Ø60
Ø41.2
125
Ø31.75
1
