Summary of Contents for Graco Hydra-Cat 207-388 F

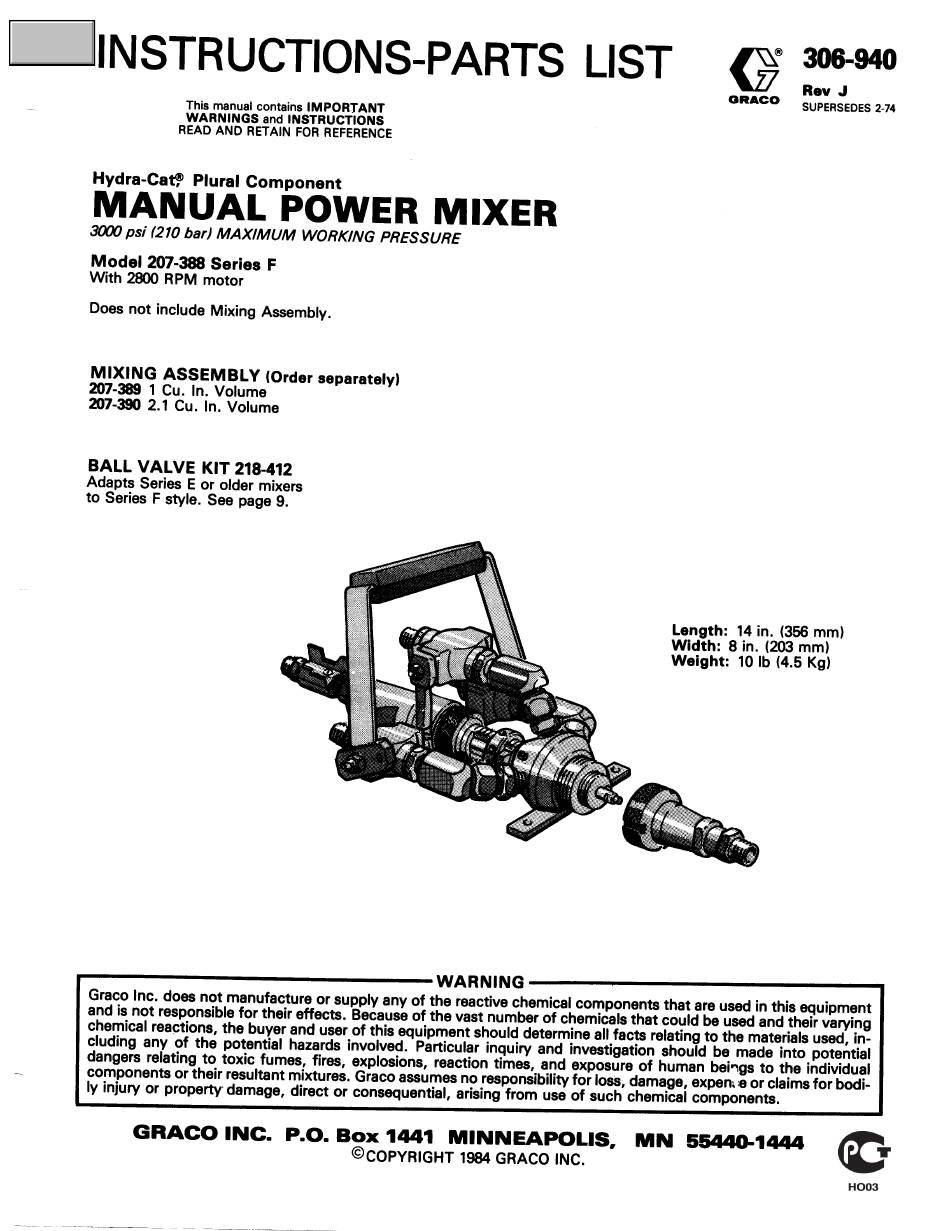

- Page 1 Parts...
- Page 2 Spray Gun or Dispensing Valve Safety Devices General Safety This equipment generates very high fluid pressure. Spray from Be sure all gun safety devices are operating properly before the gun, leaks or ruptured components can inject fluid each use. Do not remove or modify any part of the gun; this through your skin and into your body and cause extremely can cause a malfunction and result in serious bodily injury.
- Page 3 Static electricity is created by the high velocity flow of fluid High pressure fluid in the hoses can be very dangerous. If the through the pump and hose. If every part of the spray equip- hose develops a pinhole leak, split or rupture due to any kind ment is not properly grounded, sparking may occur, and the of wear, damage or misuse, the high pressure spray emitted system may become hazardous.
- Page 4 I N S T A L L A T I O N Use an air regulator to control the mixer motor speed. For assistance in setting up a plural component system, you should contact Grace Fluid Systems, 9451 West Install a bleed-type master air valve on the air line to Belmont, Chicago, Illinois...
- Page 5 Start the mixer motor before opening the material When you stop dispensing for a short time, close the valves. Then close the valves before stopping the mixer material valves and open the solvent flush valve. motor. Leave the motor running. Point the material outlet into a waste container, open the dispensing valve and flush When you stop dispensing for 10 minutes or longer, until the solvent is clean.
- Page 6 Check all possible causes and solutions before TROUBLESHOOTING GUIDE WARNING disassembling the mixer for repair. If problem is still not corrected, refer to the troubleshooting sections in the To reduce the risk of serious bodily injury, in- separate manuals supplied with each component in your system.
- Page 7 To Inspect or Replace Drive Spline or Mixing Shaft If mixer motor runs but material is not mixed properly: Use a spanner wrench to unscrew the connecting hous- ing retainer nut (23) CLOCKWISE off the air motor-it has left hand threads. Inspect the spline shaft (B) for wear or damage and replace if necessary.
- Page 8 Cleaning and Servicing Inlet or Check Valves Tap on the mixing chamber (202) with a piece of wood If either the inlet or check valve seems plugged or or a plastic hammer to break it loose, then pry it off. Knock out the mixing shaft, if possible, and place parts damaged: in a pail of compatible solvent.
- Page 9 Model 207-388 Power Mixer Series F Includes items l-43 213-040 BALL VALVE MATERIAL INLET (SEE DETAIL A) MATERIAL INLET 42 f REF PART DESCRIPTION REF PART DESCRIPTION NO. NO. NO. NO, “101823 BALL, sst; 5/16” dia.; check valve 167-765 NUT, plain knurled; l-7/16” thd sz 102-207 SETSCREW, sot hd cup pt;...
- Page 10 4000 RPM AIR MOTOR 102-584 BALL VALVE KIT 218-412 For materials which are more difficult to mix Adapts Series E and older power mixers to new style ball valve and actuating lever style. If your mixer is Series E or older, the material ball valves must be replac- ed together and a new lever installed as the old parts are not interchangeable.
-
Page 12: Technical Data
Factory BranchesAtlanta, Dallas, Detroit, Los Angeles, West Caldwell (N.J.1 Subsidiary and Affiliate Ccmpanier:Canada; England; Switzerland; France; Germany; Hong Kong; Japan GRACO INC. P. 0. Box 1441 MINNEAPOLIS, MN 5544011444 Revised 5-84 PRINTED IN U.S.A. 30&940 4-67...
