Power Supply - TP-Link EAP110 Quick Installation Manual

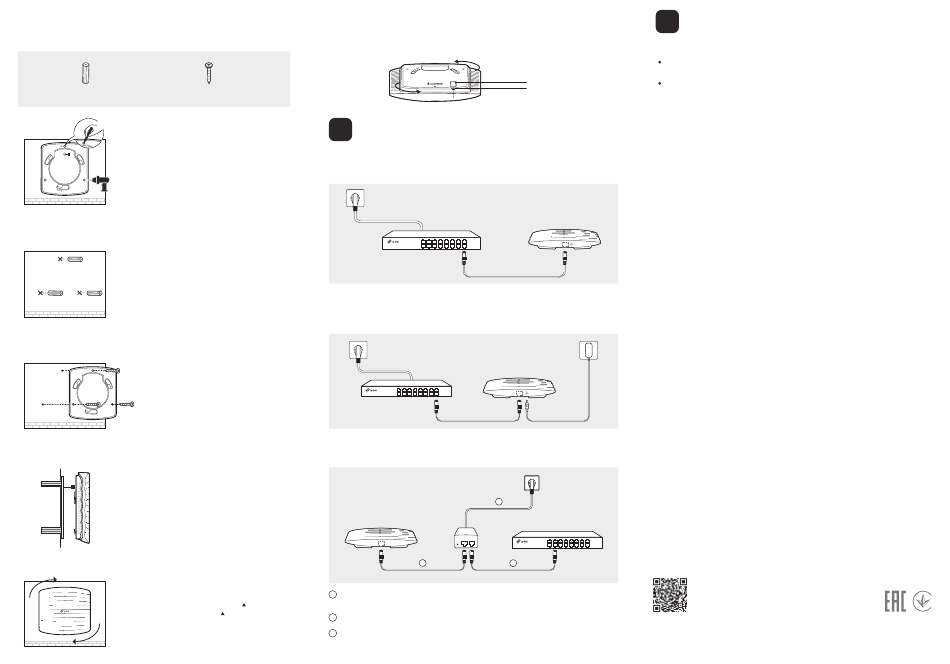

Option 2: Wall Mounting
Note: For security reasons, it is recommended not to install the EAP with the louver downward.
M3×28 Plastic Wall Anchors (Qty.3) M3×20 Self-tapping Screws (Qty.3)
X3
1
If your Ethernet cable feeds through the
wall, you can position the mounting
bracket to make the cable through the
fixing hole. Mark three positions for the
screw holes and then drill three 6mm
diameter holes at the marked positions.
2
Insert the plastic wall anchors into the
6mm diameter holes.
3
Secure the mounting bracket to the
wall by driving the self-tapping screws
into the anchors. Make sure that the
shoulders of the mounting bracket are
on the outside.
4
Connect the Ethernet cable to the
ETHERNET port on the EAP.
5
Attach the EAP to the mounting bracket
by aligning the arrow mark
with the arrow mark
bracket, then rotate the EAP until it locks
into place, as shown on the left.
Tip (for EAP225 only)
To remove the EAP from the mounting bracket, insert a paper clip in the Security Slot to
release the Locking Tab and rotate the EAP until it is detached from the mounting
bracket, as shown below.
3

Power Supply

Via PoE Switch
(for EAP115/EAP225)
Connect an Ethernet cable from the PoE switch to the ETHERNET port.
PoE Switch
Via Power Adapter
Plug one end of the provided power adapter into the POWER port of the EAP and the
other end to a standard electrical wall outlet.
Switch
Via PoE Adapter
(for EAP110/EAP225)
The EAP can be powered via the provided PoE adapter.
Connect the ETHERNET port to the POE port of the PoE adapter using an Ethernet
1
on the EAP cable. The cable length can be up to 100 meters.
on the mounting
Connect the Ethernet cable from the switch to the LAN port of the PoE adapter.
2
Plug the female connector of the provided power cord into the power adapter, and
3
the male connector to a power outlet.
Note: EAP225 does not support the Remote Reset feature.
Locking Tab
Security Slot
(for EAP 115 only)
Power Adapter
3
PoE Adapter
PoE LAN
1 2
(Up to 100m)
4
Software Configurations
The EAP supports two configuring options:
To configure and manage mass EAPs via centralized controller software, please refer
to Option 1.
To configure a single EAP via a web browser directly, please refer to Option 2.
Option 1: Via EAP Controller
Step 1: Installing EAP Controller
On the PC, download the EAP Controller installation file from
http://www.tp-link.com/en/download/EAP-Controller.html. Run the file and follow the
wizard to install the EAP Controller.
Step 2: Configuring EAP Controller
Launch the EAP Controller and follow the step-by-step instructions to complete the
Quick Setup. After the wizard is finished, a login screen will appear.
Step 3: Logging in to EAP Controller
Enter the admin name and password you created and click Sign In. Then you can
further configure the EAP Controller.
For detailed configurations, please visit http://www.tp-link.com/support to download
the User Guide of EAP Controller in the download center.
Option 2: Via Web Browser
Step 1: Connecting to the EAP Device
Power on the EAP and connect wirelessly by using the default SSID (format:
TP-Link_2.4GHz/5GHz_XXXXXX) printed on the product label.
Step 2: Logging in to the EAP Device
Launch a web browser and enter http://tplinkeap.net in the address bar. Use admin for
both Username and Password to log in.
Step 3: Configuring the EAP Device
Set up a new Username and Password for secure management purpose. Modify the
wireless parameters and reconnect your wireless devices to the new wireless network.
For detailed configurations, please visit http://www.tp-link.com/support to download
the User Guide of EAP in the download center.
For technical support, User Guide and other information, please
visit http://www.tp-link.com/support, or simply scan the QR code.
