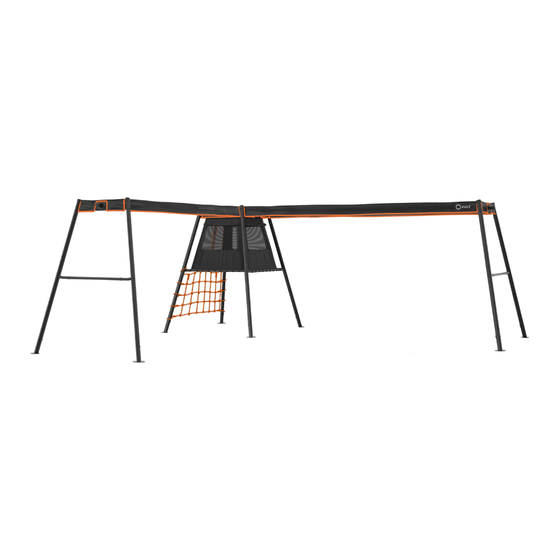

Vuly L Shape Adaptor Assembly Manual

Note: This is not a standalone instruction guide. You will require the Swing
Set Manual and Cubby House Manual to complete your Vuly Max.
ENSURE THAT AS YOU FOLLOW THESE INSTRUCTIONS,
YOU FIRMLY SECURE ALL PARTS WITH NUTS AND BOLTS.
Important: When locking together Frame Bolts, ensure
that you insert the long bolts alternately on either side.
Ensure that you are assembling the product upside down
(with the lugs on the swing rails facing upwards).
1
STEP
Replace the Cubby Rail included with your Cubby House with the
L-Shape Cubby Rail included with this L-Shape Adaptor, during
your Cubby House assembly.
Ensure that the open end in the middle of the L-Shape Cubby
Rail is facing the direction that you want to install swings.
STEP 2
Attach the Rail Reinforcement onto
the upper prongs of two H Joiners.
L SHAPE ADAPTOR - ASSEMBLY MANUAL
