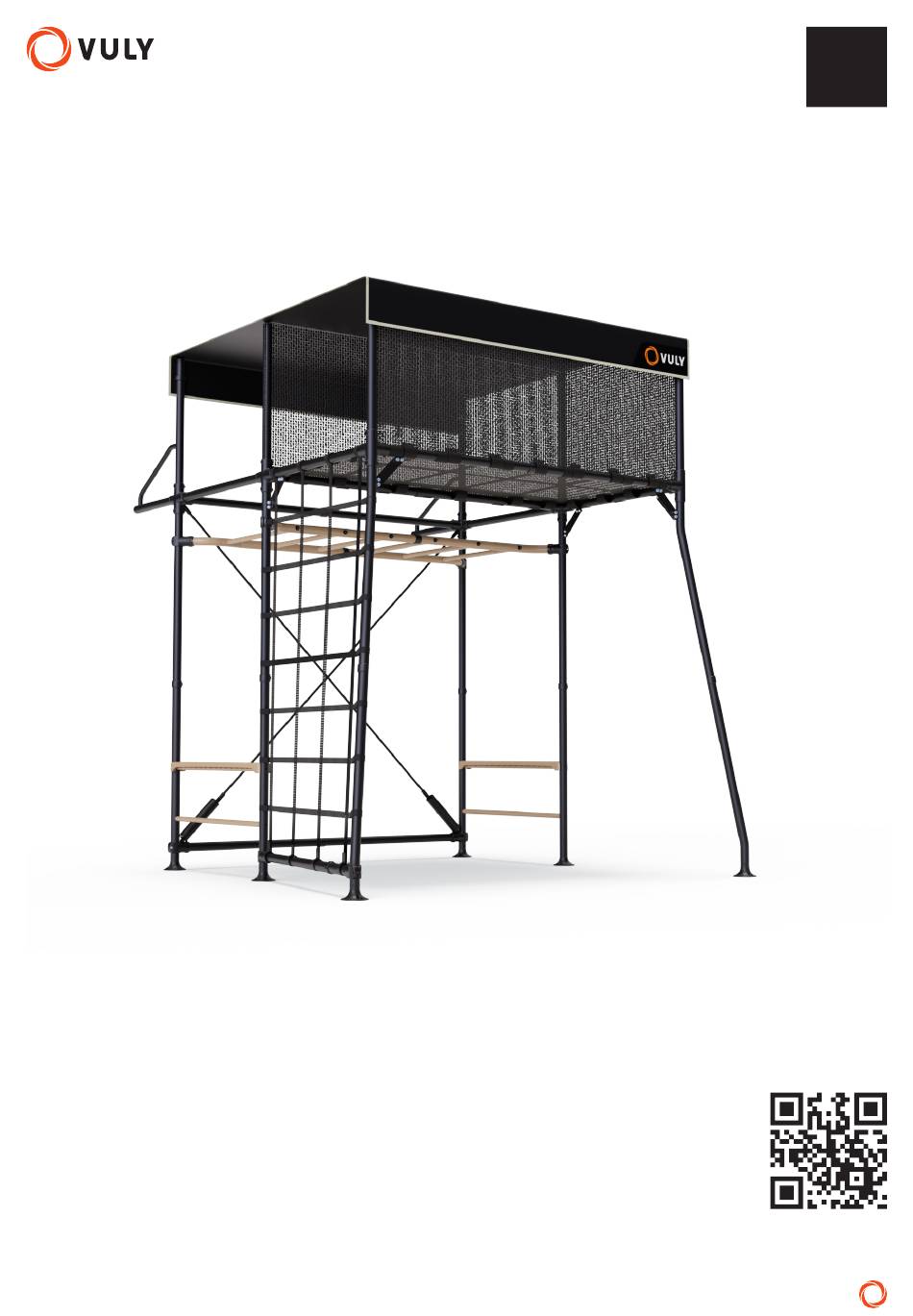

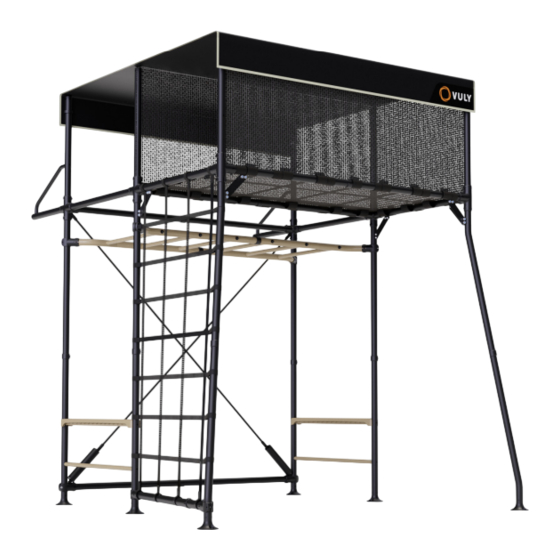

QUEST 2 PRO
S
Assembly Manual
ATTENTION!
SAFETY INFORMATION, INSTALLATION, CARE AND MAINTENANCE
INSTRUCTIONS. READ PRIOR TO ASSEMBLING AND USING THE PRODUCT.
Vuly cares about safety.
Adult supervision is required at all times whilst equipment is in use.
Scan this QR code
If you have any feedback regarding our instructions, feel free to email
or visit vulyplay.com/install for
instructions@vulyplay.com
so that we can continue to improve.
step-by-step video instructions
1-246212
