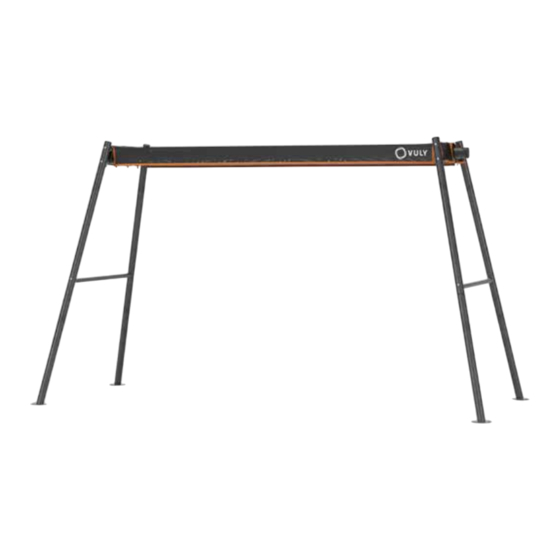

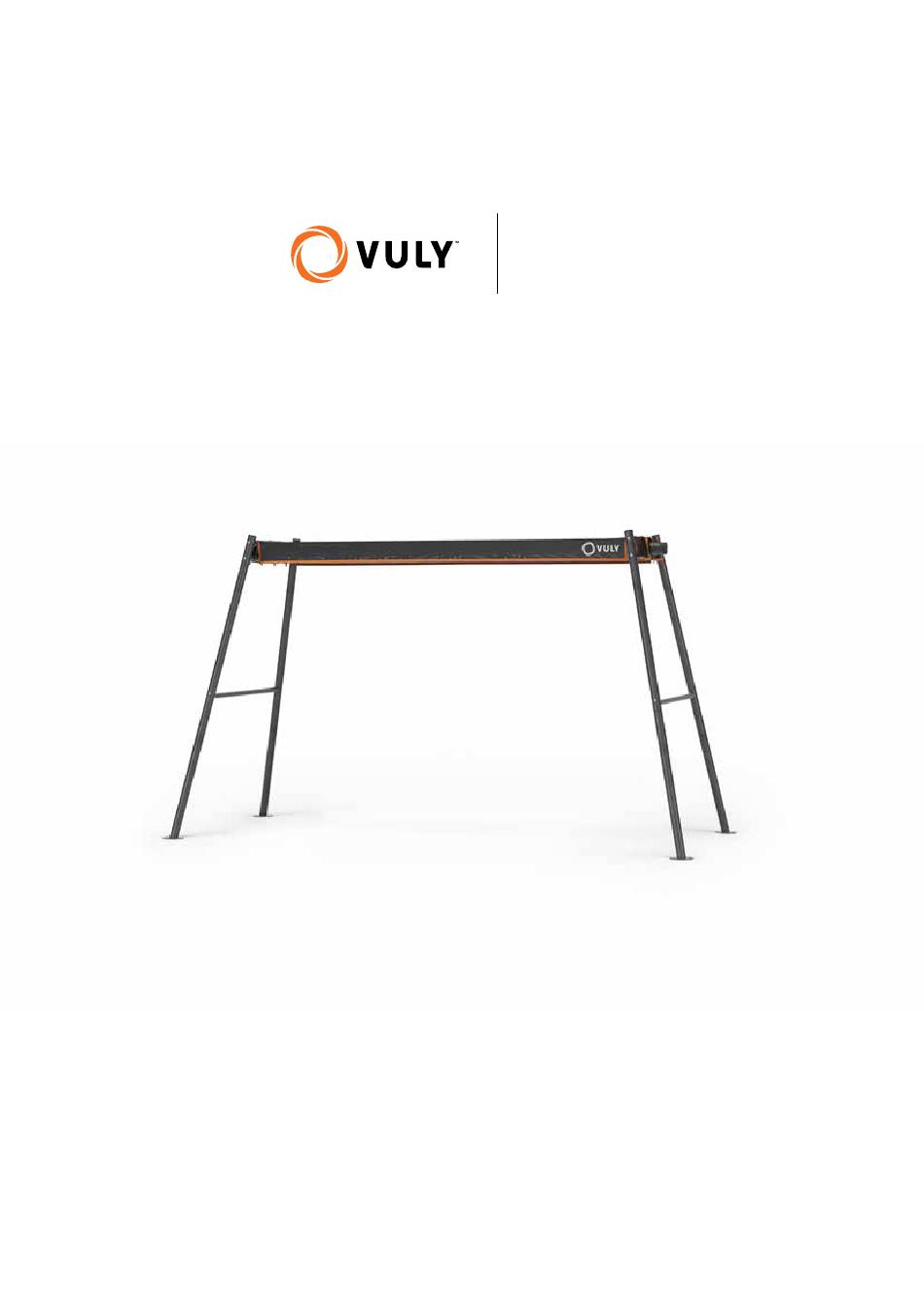

- Page 1 Mini Swing Set (frame) MANUAL Visit VulyPlay.com/Installation for video instructions...
- Page 2 • Maximum combined user weight per swing set section – 120 kg (265 lb). • Adult assembly required. Adult supervision required at all times. • Ensure that the Swing Set is secured with anchors or bolts before use. Vuly Play 95 Ingleston Rd, Brisbane QLD 4154 AU: 1300 667 514 US: 1-800-467-1421 www.vulyplay.com...
-
Page 3: Table Of Contents
Contents Read and follow all instructions in this manual before using your product, and do not use any Swings in any way that is not described in this manual. 1.0. Care and Maintenance 2.0. Safety Information 2.1. Select protective surfacing 2.2. -
Page 4: Care And Maintenance
1.0. Care and maintenance Improper maintenance or lack of care can lead to your product deteriorating earlier than expected and causing injury. Please follow these instructions to ensure that your product lasts for as long as possible. At the beginning of each play session: •... -
Page 5: Safety Information
2.0. Safety Information 2.2. Poured-In-Place Surfaces or Pre- Maximum Swing fall height: 2,226 mm (88 in.) Manufactured Rubber Tiles You may be interested in using surfacing other than loose- United States Consumer Product Safety Commission’s fill materials, like rubber tiles or poured-in-place surfaces. (USCPSC) Outdoor Home Playground Safety Handbook. -
Page 6: Operating Instructions
3.0. Operating Instructions • Warning: Instruct children not to climb when the Observing the following statements and warnings reduces the likelihood of serious or fatal injury: equipment is wet. • Warning: Check the openings between rollers and sliding surfaces of roller slides for foreign materials •... -
Page 7: Parts Checklist
4.1. Parts checklist – Swing Set frame ALL SIZES: 2X FRAME – BOX A 1X FRAME – BOX B 2x H Joiner 4x Shoulder Tube 4x Leg Tube 2x End Joiner 2x Mid Tube 2x Swing Rail 8x Anchor 1x Rail Joiner 1x Bolt Kit If you purchased a size with more than 2 swing slots, you will have Upsize Kit... -
Page 8: Assembly Instructions - Swing Set Frame
5.0. Assembly instructions – Swing Set frame Remove all parts from the packaging, and lay out the components on the ground. ENSURE THAT AS YOU FOLLOW THESE INSTRUCTIONS, YOU FIRMLY SECURE ALL PARTS WITH NUTS AND BOLTS. IMPORTANT: WHEN LOCKING TOGETHER FRAME BOLTS, ENSURE THAT YOU INSERT THE LONG BOLTS ALTERNATELY ON EITHER SIDE. - Page 9 STEP Insert a Swing Rail into each of the two End Joiner and H Joiner pairs. Lock them together with Frame Bolts. TO CREATE 2 SWING SLOTS: Insert one shared Swing Joiner into the ends of both Swing Rails. Lock them together with Frame Bolts.
- Page 10 STEP Insert a Leg Tube into the bottom of a Shoulder Tube. Repeat for the three remaining Shoulder Tube and Leg Tube pairs. STEP STEP STEP Insert the top of a Shoulder Insert a Mid Tube into the Attach the remaining Shoulder Tube and Leg Tube pair into inward-facing hole...
- Page 11 STEP Flip the completed swing set frame upright. SHADE COVER STEP Skip this section if you do not wish to attach your Shade Cover. STEP Lay out the Shade cover atop your partially completed frame. STEP Pull the two straps at both ends of the swing set around their respective H Joiners.
- Page 12 CONGRATULATIONS! You have assembled your swing set frame. See your Swing instructions to attach your chosen swings.
-
Page 13: Product Registration
Vuly. and completing the form with a proof of purchase. Customers who purchase directly from Vuly (through VulyPlay. com, at the Vuly Showroom or over the phone) automatically have their product registered. 7.0. Half-price replacement parts... -
Page 14: Inclusions
8.4. Warranty Claims 8.3.2. Damage through weather conditions If a customer believes that a Vuly product is faulty or defective, Damage to the product that results from weather events – they must discontinue use and submit a Warranty Claim. -
Page 15: Australian Consumer Law
9.0. Missing parts If a customer believes that a Vuly product does not include Vuly products are delivered to Vuly warehouses prepackaged; all necessary parts, they must immediately lodge a Missing we are unable to check the boxes prior to delivery to ensure Parts Claim at VulyPlay.com/Support. - Page 16 vulyplay.com...
