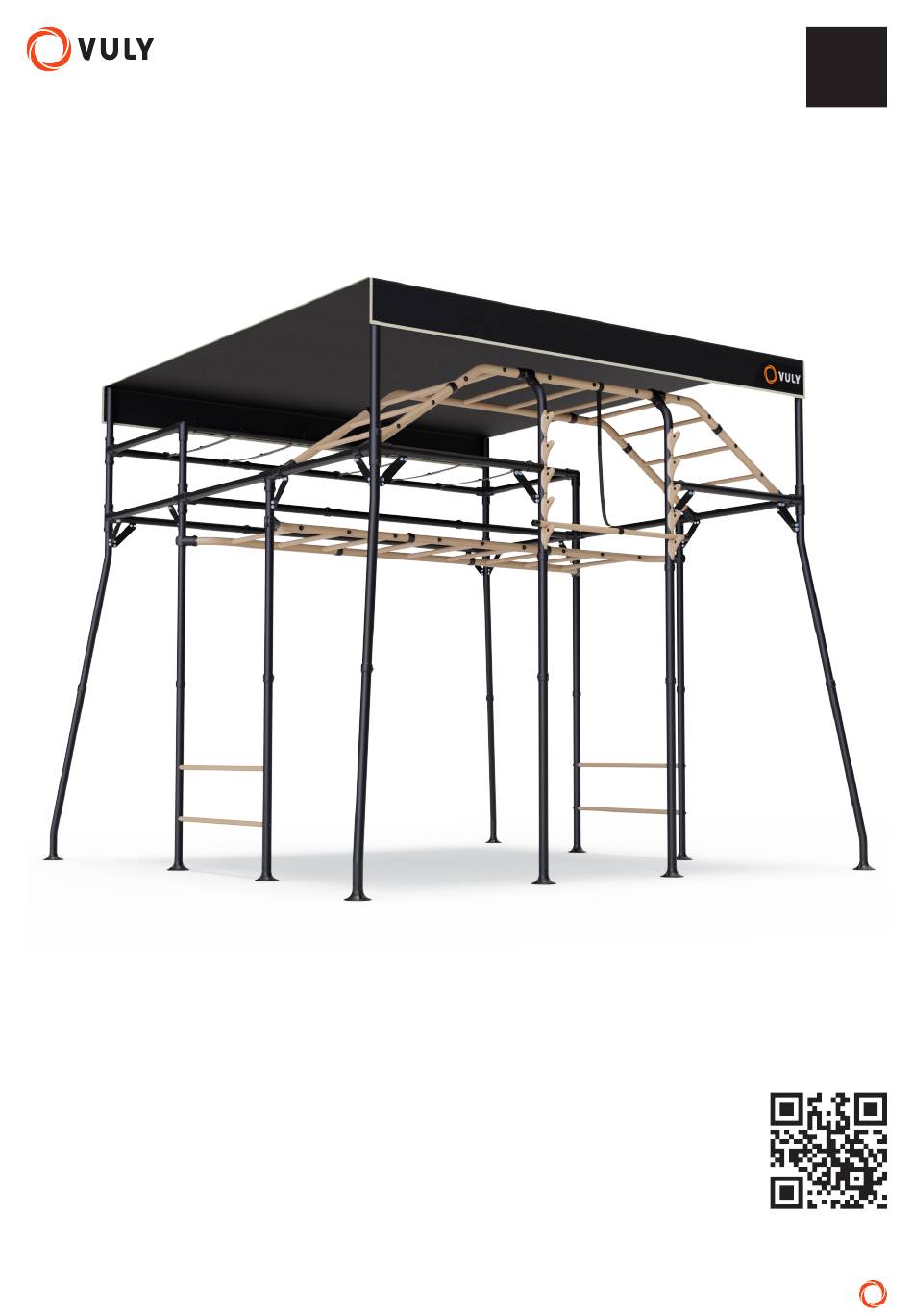

NINJA QUEST 2

Assembly Manual

ATTENTION!

SAFETY INFORMATION, INSTALLATION, CARE AND MAINTENANCE

INSTRUCTIONS. READ PRIOR TO ASSEMBLING AND USING THE PRODUCT.

Vuly cares about safety.

Adult supervision is required at all times whilst equipment is in use.

Scan this QR code

If you have any feedback regarding our instructions, feel free to email

or visit vulyplay.com/install for

instructions@vulyplay.com

so that we can continue to improve.

step-by-step video instructions

1-246331

Need help?

Do you have a question about the NINJA QUEST 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vuly NINJA QUEST 2

Page 1 NINJA QUEST 2 Assembly Manual ATTENTION! SAFETY INFORMATION, INSTALLATION, CARE AND MAINTENANCE INSTRUCTIONS. READ PRIOR TO ASSEMBLING AND USING THE PRODUCT. Vuly cares about safety. Adult supervision is required at all times whilst equipment is in use. Scan this QR code If you have any feedback regarding our instructions, feel free to email or visit vulyplay.com/install for...
Page 2 The following Conditions of Sale will apply to and bind the part of Vuly, its office bearers, directors, employees or purchasers of any Vuly Play ABN: 48 655 129 623 & EIN: 99- agents. 2968094 (“Vuly”) product.
Page 3 Contents Read and follow all instructions in this manual before using your system, and do not use it in any way that is not described in this manual. Responsibility rests with the owner and supervisors of the product to make sure that all users are aware of the practices specified in this manual.
Page 4 • Ensure that moving steel components remain well COMPONENTS WILL DETERIORATE OVER TIME. lubricated. Record your date of purchase: • Use only parts and accessories recommended by Vuly. 1.2. Rust and corrosion • Be aware of, and check, areas that are particularly prone to rusting: º...
Page 5 • Install the system on level ground and in a well- lit area, Vuly cares about safety. no less than 2 m (6 ft) from any structure or obstruction – such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
Page 6 3.0. Pre-assembly 3.1. Size Reference 3.0m 3.2. Tips & Tricks 3.2.1. Joiner Fitting To align the joiner holes with the holes in the frame tube, take the large 6mm Allen key and insert it into the top hole in the joiner tube then twist until the holes align.
Page 7 3.2.2. Uneven Ground Ensure that ground at the installation location is level and clear of obstructions. Installing on an uneven surface can cause misallignment and instability. 3.2.3. Cap Removal Ensure that protective caps on reinforcement tabs are removed before assembly. 3.2.4.
Page 8 3.3. Road Map PAGE 16 PAGE 23 PAGE 26 PAGE 31 PAGE 52 PAGE 72 PAGE 76...
Page 9 3.4. Parts and components BOX B M10*45 ROUND BARREL NUT PLASTIC WASHER TUBE TO TUBE PLASTIC FOOT ADJUSTABLE JOINER JOINER 1-246331...
Page 10 BOX C M10 NYLON NUT M10*16 REINFORCEMENT TUBE TO TUBE ROUND BARREL NUT PLATE JOINER...
Page 11 BOX A1 M10*45 M8*50 PLASTIC WASHER ANCHOR HEX BARREL NUT M8*30 ROUND BARREL NUT TUBE TO TUBE JOINER 1-246331...
Page 12 BOX N1...
Page 13 BOX N2 1-246331...
Page 14 BOX N3 ROUND M10*45 M8*50 BARREL NUT TUBE TO TUBE JOINER ANCHOR M8*30 PLASTIC WASHER BARREL NUT...
Page 15 BOX NL1 ADJUSTABLE JOINER 3 WAY JOINER T JOINER REINFORCEMENT PLATE 4 WAY JOINER TUBE TO TUBE JOINER ROUND BARREL NUT M10*16 M10 NYLON NUT 1-246331...
Page 16 BOX NL2 SALMON LADDER BAR...
Page 17 BOX NL3 TUBE TO TUBE T JOINER JOINER 5 WAY JOINER PLASTIC WASHER PLASTIC FOOT SHADE COVER ANCHOR HEX BARREL M8*50 M10*45 17MM NINJA ACCESSORY STRAP SPANNER ROUND BARREL M8*30 NINJA REINFORCEMENT M10*16 M10 NYLON NUT ALLEN KEY ALLEN KEY PLATE 1-246331...
Page 18 4.0. Assembly Instructions 4.1. MONKEY BAR ASSEMBLY ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED. Required Components Tubes Joiners Fasteners B1 ........x4 Adjustable Joiner ...x4 M8*50 ......x8 B2 ........x2 Tube to Tube ....x4 M10*45 ......x18 V3R .......x4 Plastic Washer ....x18...
Page 19 B1 x4 B2 x2 R1 x9 WARNING! Ensure that Round Barrel Nuts are used on Tube to Tube Joiners 1-246331...
Page 20 6mm Allen Key 5mm Allen Key NOTE: Use a 6mm Allen Key on the Bolt and 5mm Allen Key on the Barrel nut when tightening...
Page 21 WARNING! Ensure the orientation indicator slot of each rung is pointing horizontally 1-246331...
Page 22 NOTE: Insert Fasteners into Adjustable Joiner and screw until ﬁ nger tight NOTE: If not already installed, insert Fasteners into Adjustable Joiner and screw until finger tight...
Page 23 NOTE: Adjustable Joiner should rest on the rivet in the tube 1-246331...
Page 24 WARNING: Ensure that reinforcement tabs are facing outwards NOTE: Do not tighten clamping bolts for Adjustable Joiners as this stage.
Page 25 4.2. H-FRAME ASSEMBLY ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED. Required Components Poles Fasteners - V2 ........x4 M10*45 ......x8 - R2 ........x4 M10 Plastic Washer ..x8 1-246331...
Page 26 WARNING! Ensure that you use the Adjustable Joiners with a Cross Brace attachment point NOTE: Ensure the curved side of the Plastic Washer is against the tube...
Page 27 NOTE: Repeat Step 1 to Step 2 to create a second H-Frame 1-246331...
Page 28 4.3. 3M SPAN ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED. Required Components Poles Joiners Fasteners H1 ........x6 Tube to Tube ....x8 M8*50 ......x8 H2 ........x4 Round Barrel Nut ...x8 H1R ........x2 Tools 6mm Allen Key ....x1 5mm Allen Key ....x1...
Page 29 1-246331...
Page 30 NOTE: Repeat steps for three non-reinforced 3m Spans in total.
Page 31 NOTE: Ensure that tabs on H1R are pointing in the same direction 1-246331...
Page 33 4.4. FRAME ASSEMBLY ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED. Required Components Tubes Joiners Fasteners V1 ........x4 Tube to Tube ....x6 M8*50 ......x44 V1R ........x2 3 Way ......x2 Hex Barrel Nut ..... x38 A1 ........x2 4 Way ......x4 Round Barrel Nut ....x6...
Page 34 NOTE: Ensure that joiners are pointing the same direction and tabs are facing downwards...
Page 35 NOTE: Ensure that tabs on V1R tubes are facing downwards 1-246331...
Page 37 1-246331...
Page 39 NOTE: Ensure that joiners are pointing upwards 1-246331...
Page 41 45˚ 45˚ NOTE: Ensure that corner Tubes are angled out at 45 degrees WARNING! Ensure that reinforcement tabs are facing outwards as indicated above 1-246331...
Page 42 NOTE: Secure all inserted tubes with a Hex Barrel Nut and Bolt WARNING! Ensure that Adjustable Joiner Clamping Bolts are sufficiently tightened to prevent slipping...
Page 43 NOTE: All braces must be securely installed before proceeding to the next step. 1-246331...
Page 44 WARNING: Minimum of three people required to flip frame over.
Page 45 4 WAY JOINER x 2 3 WAY JOINER x 2 NOTE: Ensure highlighted part of joiners are pointing downwards 1-246331...
Page 46 NOTE: Ensure highlighted part of joiners are pointing downwards NOTE: If attaching accessory straps at this stage refer to page 70...
Page 47 WARNING: Minimum of three people required to lift frame 1-246331...
Page 48 WARNING! These step requires a minimum of three people. Lift with a straight back. H-FRAME WARNING! These step requires a minimum of three people. Lift with a straight back.
Page 49 WARNING! These step requires a minimum of three people. Lift with a straight back. NOTE: Secure lower legs with Tube to Tube Joiners 1-246331...
Page 50 NOTE: With all legs on one side attached, move to the opposite side of the Quest WARNING! These step requires a minimum of three people. Lift with a straight back.
Page 51 WARNING! These step requires a minimum of three people. Lift with a straight back. H-FRAME WARNING! These step requires a minimum of three people. Lift with a straight back. 1-246331...
Page 52 WARNING! These step requires a minimum of three people. Lift with a straight back. NOTE: Secure lower legs with Tube to Tube Joiners...
Page 53 1-246331...
Page 54 4.5. FRAME CONTINUED ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED. Required Components Tubes Joiners Fasteners L1 ........x1 4 Way ......x2 M8*50 .......x30 L2 ........x1 Adjustable Joiner ..x6 M10*45 ......
Page 55 WARNING! Ensure that tabs on L1 and H3R Tubes are facing each other 1-246331...
Page 56 R1x11 WARNING! Ensure that orientation indicator slot of each rung follows along each Tubes WARNING! Ensure that indicators on B4 tubes are facing inward...
Page 57 1-246331...
Page 59 WARNING! Ensure that adjustable joiners are not tightened 1-246331...
Page 60 WARNING! Ensure that tabs on V6 Tubes are facing downwards...
Page 61 WARNING: Minimum of four people required to fl ip frame over. 1-246331...
Page 62 WARNING: Slide highlighted assemblies into 4 Way Joiners on each side. Loosen Clamp Bolt if required.
Page 63 WARNING! Ensure that all joiners are tightened WARNING: Minimum of four people required to fl ip frame 1-246331...
Page 64 45˚ NOTE: Ensure that corner Tubes are angled out at 45 degrees...
Page 65 45˚ 45˚ 1-246331...
Page 66 WARNING: Minimum of four people required to tip the frame...
Page 67 1.3m WARNING! With a minimum of four people, lift and position the frame as above 1-246331...
Page 68 WARNING! With a minimum of four people, lift and align the frame as above WARNING! Ensure ladder is held at all times...
Page 69 WARNING! Ensure ladder is held at all times 1-246331...
Page 70 WARNING: Use reinforcement plate with ‘‘Up arrow’’...
Page 71 SALMON LADDER WARNING: Use the Triple Hook and Loop strap to secure the Salmon Ladder to the frame WARNING: Ensure loop on Accessory strap is pointing upwards when installing 1-246331...
Page 72 WARNING! Pass open carabiner through loop on the strap, and completely close carabiner to secure. NOTE: If attaching straps while the structure is still on the ground, continue from step “24” on page 45.
Page 73 NOTE: Ensure all fasteners are tightened and secure at this stage 1-246331...
Page 74 4.6. SHADE COVER ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED. Required Components Misc Tools Shade Cover ....x1 Ladder ......x1...
Page 75 NOTE: Align batch tag on Shade Cover with right side of Hideout entry. WARNING! Pull fi rmly and ensure that clip is clicked into position. 1-246331...
Page 77 1-246331...
Page 78 4.7. ANCHORING ENSURE THAT AS YOU ASSEMBLE THE PRODUCT, YOU FIRMLY TIGHTEN ALL NUTS AND BOLTS, UNLESS DIRECTED. Required Components Misc Tools Anchor Kit ......x1 Hammer ......x1 13mm Socket Driver ..x1...
Page 79 WARNING! Ensure that ground at the installation location is level and clear of obstructions. Installing on an uneven surface can cause misallignment and instability. 13mm WARNING! To secure, drive anchors into the ground with a 13mm driver or a hammer 1-246331...
Page 81 CONGRATULATIONS! You have assembled your Quest 2 playset! 1-246331...
Page 82 6.0. Half-price replacement 7.1.1. Second-hand purchases parts Vuly warranties apply only for the original purchaser, to a Vuly offers half-price replacement parts to all customers product purchased from Vuly Play or an Authorised Reseller. for the lifetime of their purchase through the Half-Price On-selling a Vuly product voids and all warranties.
Page 83 Warranty Claim will not be assessed. This warranty will be void if the product is used for any other Vuly may take up to 7 days to process Warranty Claims activity besides those for which it was intended, or used in upon a completed submission.
Page 84 Goods fail to be of acceptable quality and the failure does not amount to a major failure. 8.0. Missing parts If a customer believes that a Vuly product does not include all necessary parts, they must immediately lodge a Missing Parts Claim at vulyplay.com/support.
Page 85 1-246331...
Page 86 See vulyplay.com/terms for the most recent Vuly warranty policies, terms and conditions.
