SLW-8702-1.5 (S-2641-2)
Two Handle Widespread Lavatory Faucet
Installation Guide
Model Numbers
SLW-8702-1.5
Two Handle Widespread Lavatory Faucet
Modifications
-1.0
1.0 gpm (3.8 L/min) flow restrictor
CG
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Dimensions
A A
I I
Note: Dimensions subject to change without notice.
DS Creations
E E
B B
C C
I I
J J
K K
L L
Specification
Two Handle Widespread Lavatory Faucet featuring 8"-16"
mounting configuration shall include ceramic cartridges,
1/2" IPS inlet connections, metal drain assembly and
1.5 gpm (5.7 L/min) aerator. Faucet shall be made from metal
construction, plated in standard polished chrome finish.
D D
F F
G G
H H
Measurements
A
8", 203 mm
B
3-1/8", 79 mm
Deck Thickness Ref.
C
Min. 1", 25 mm
Max. 2", 51 mm
D
6-1/2", 165 mm
E
3-1/4", 83 mm
F
3-7/8", 98 mm
G
1-7/8", 48 mm
H
1/2-14 NPSM
I
4", 102 mm
(3x) Hole Size
J
Max. Ø 1-1/2", 38 mm
To Backsplash
K
Min. 2-7/8", 73 mm
L
3/16", 5 mm
Advertisement
Related Manuals for Symmons SLW-8702-1.5
Summary of Contents for Symmons SLW-8702-1.5

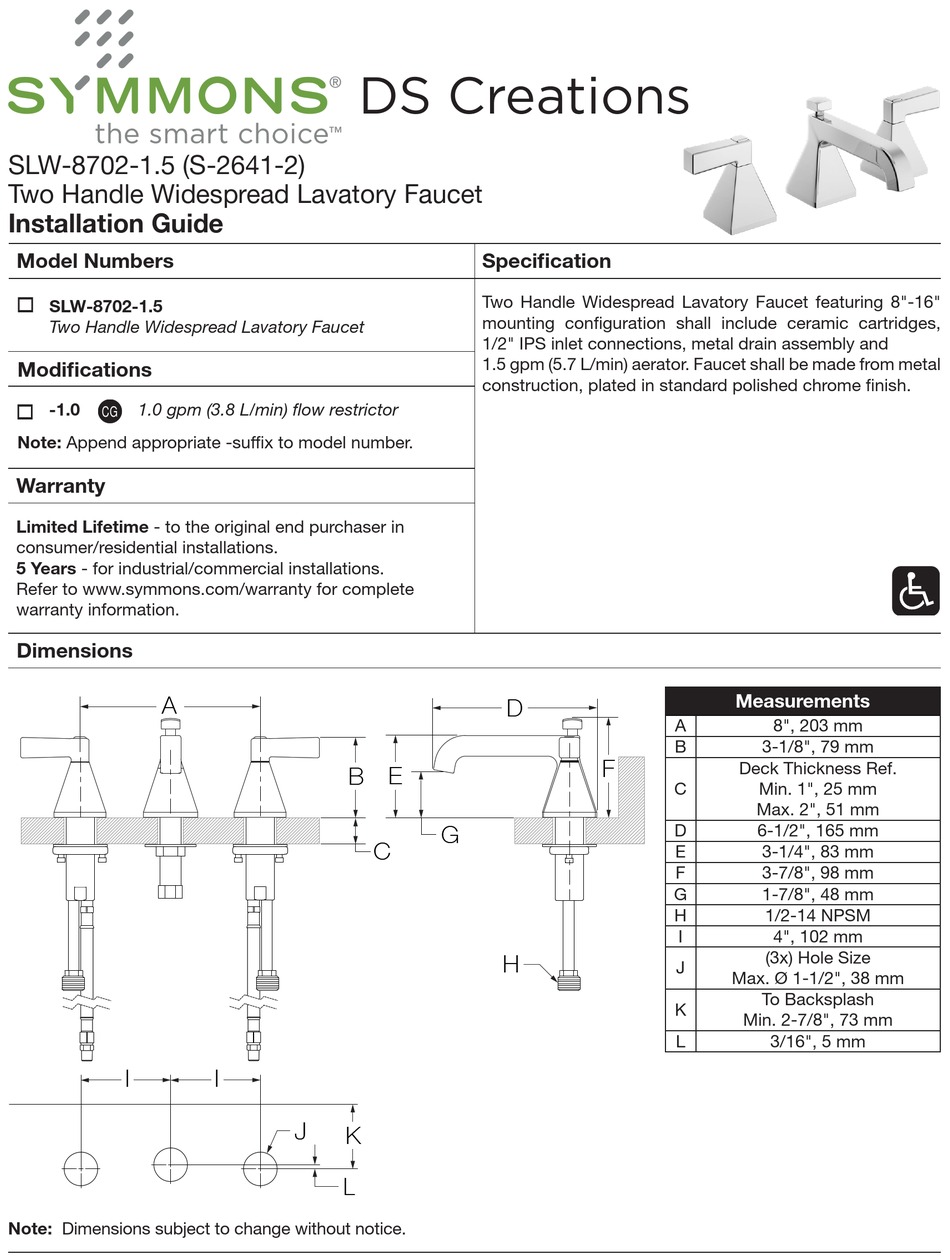

- Page 1 Note: Append appropriate -suffix to model number. Warranty Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Dimensions Measurements 8", 203 mm 3-1/8", 79 mm Deck Thickness Ref.
