In some cold climates it may be necessary to winterize the Saline C system. The procedure for this is as follows:
•
Disconnect power to the system
•
Close isolation valves to and from the vessel
•
Open the top of the vessel and remove the electrode stack
•
Remove the drain plug at the bottom of the vessel and drain all water
•
Once all water is drained, replace the drain plug, replace the electrode stack and close the vessel lid.
Make sure no water is in the vessel if there is a possibility of freezing.
N° Part Number
1 HCXSCELL6
2 HCXSPS6EU
3 HCXSFLOS6EU
4 TBX1022M
5 ECX12T
6 EC12MCK
7 BSX1CAP2
8 BSX1PLUG2
9 - 10 - 11 SB2KIT
12 BSXC201CK
13 ORX352V70
/ HCXCCCC
Page 11 of 11
13
11
1
10
7
4
9 8
5
USE ONLY GENUINE REPLACEMENT PARTS
Winterization

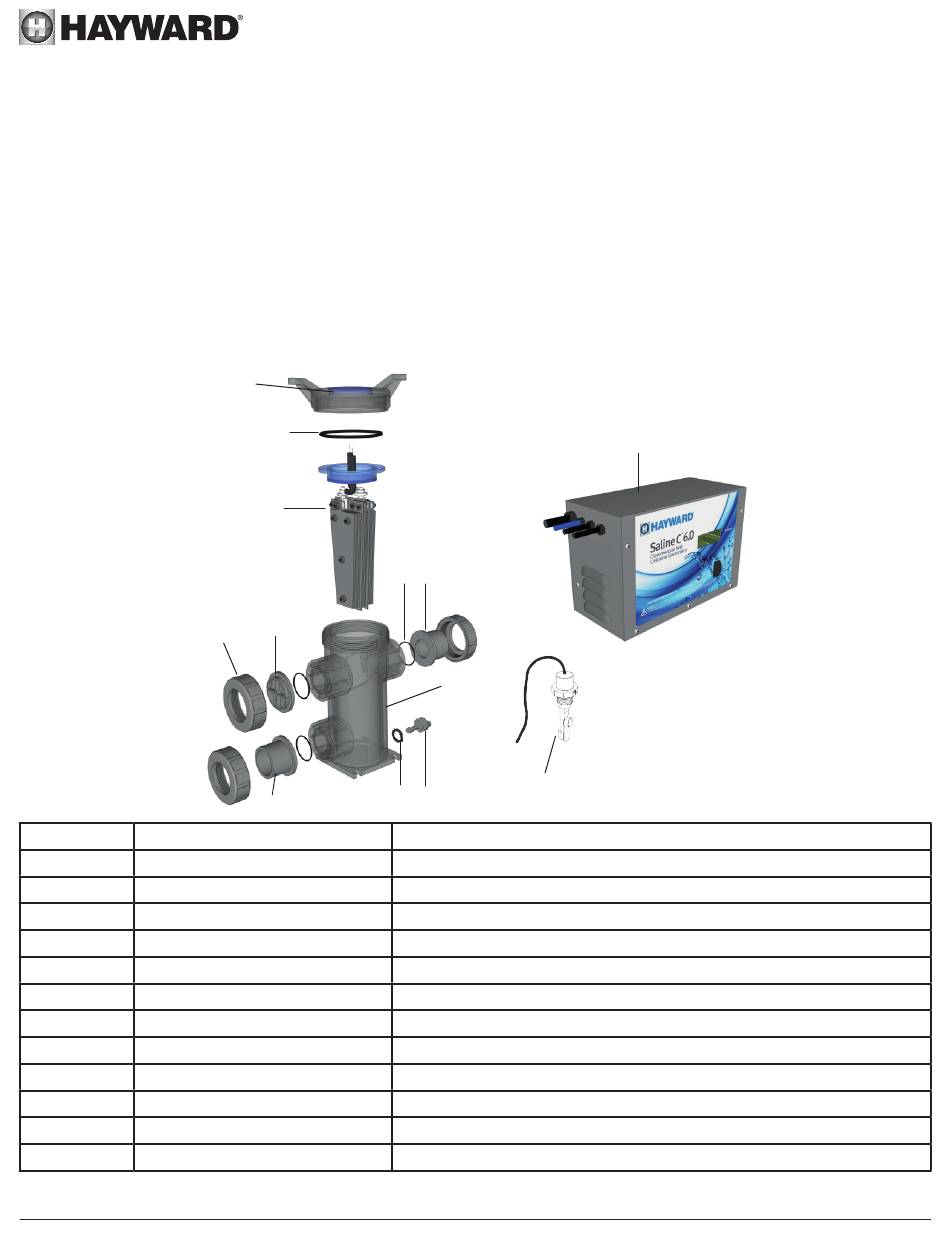

Parts Guide

6
12
3
Description
Replacement cell (Lid/cover included)
Power Supply Chlorine Generator
Flow Sensor
63 mm PVC Nut (1 each)
2" PVC Pipe Connector Threaded
63 mm Pipe Connector Socket
2" PVC Port Cap
Plug 1/2 - 18, 1" BS PVC
O-RING KIT (Drain O-ring, Inlet, Outlet & Plug Port O-ring, Cover O-ring)
2" Clear Polycarbonate Body
*Piston O-ring #352 Viton 70 Duro - Cover O-Ring*
Replace cell cables, connector & grey cap
Saline C
™
2
Rev. C
