Chapter 2
Connecting to a network device
Connect one end of a network cable to the LAN port on the system rear panel and
the other end to a hub or switch.
RJ45

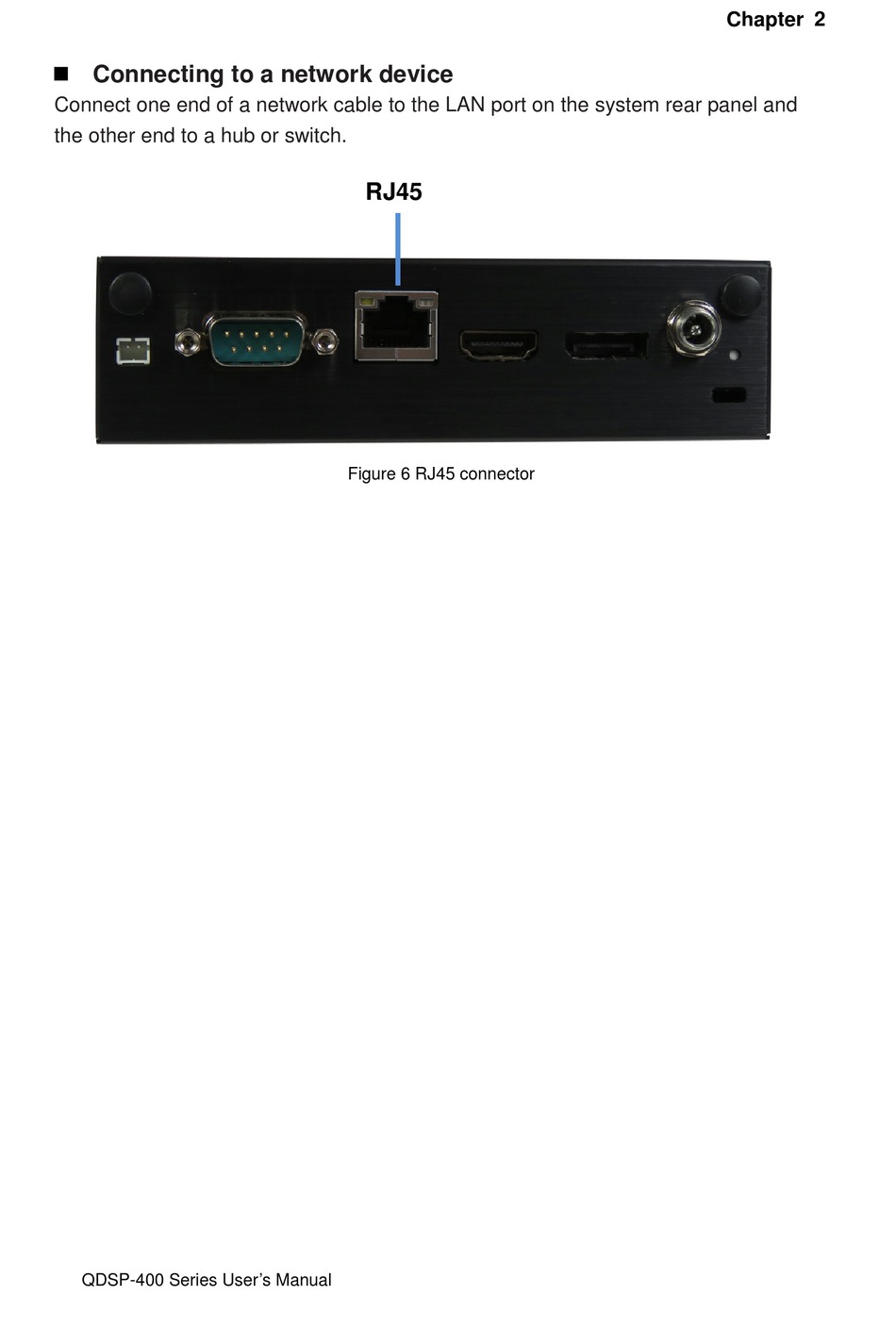

Figure 6 RJ45 connector

QDSP-400 Series User's Manual
