Page 14: Chapter 1 Introduction

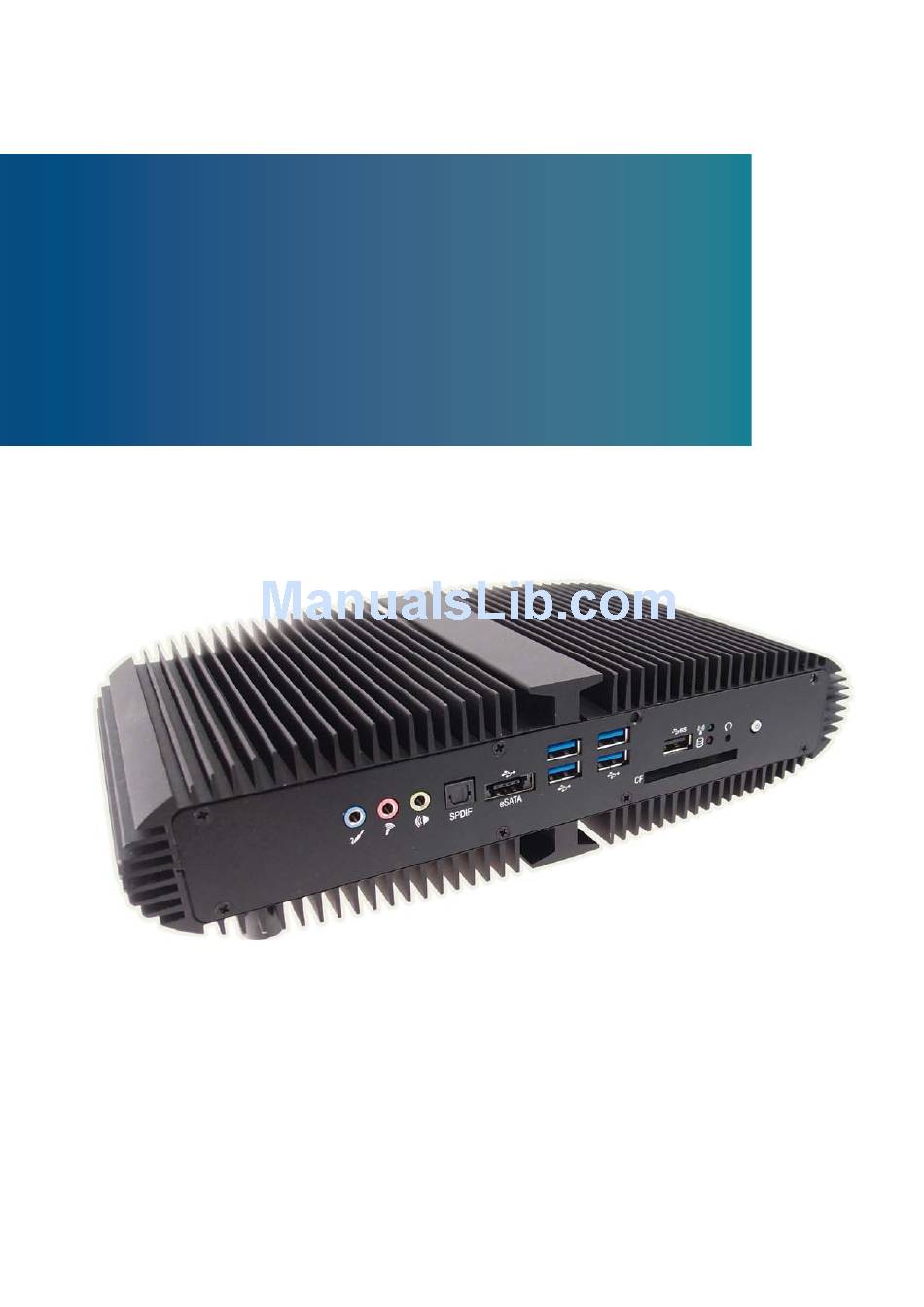

Chapter 1 Introduction Overview The KUBE-8090 is a fanless digital signage player ideal for space critical applications. This embedded hardware platform features 3rd Generation Intel® Core™ i5/i7 Processors, Intel® QM77 Express chipset, and DDR3 1066/1333/1600 SO-DIMM. It comes with a 2.5” SATA hard drive or SSD, Compact Flash slot, HDMI, DVI, 1x USB 2.0, 4x USB 3.0, eSATA, COM, and HD Audio. -
Page 15: Product Specifications
1x SIM card slot (for 3G appliance) support user accessible Windows Xp/XPe/Windows 7 OS Support Fanless and Internal Heat Pipes Cooling Input: 100-240 VAC Power Unit Output: 75 Watt, +19VDC, 3.95A Operating: 0°C to 40°C, 0%-90%, non-condensing Temperature / KUBE-8090 User’s Manual... -
Page 16: System Tour
Storage: -20°C to 80°C, 0%-90%, non-condensing Humidity Optional VESA-mount and Wall-Mount Mounting CE, FCC Class A Certifications Table 1 KUBE-8090 Specification System tour Refer to the figures below to identify the components of the system. Front Panel Figure 1 Front Panel Power Switch The power push button allows powering ON and OFF the system. - Page 17 Line-IN The Line-in jack is designed to take input from a higher-powered sound source. CAUTION This connector do not support hot-swapping. Users should not connect or disconnect their eSATA/USB devices from PC when the system is working. KUBE-8090 User’s Manual...
-
Page 18: Figure 2 Rear Panel
DC Jack The supplied power adapter converts AC power to DC for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. KUBE-8090 User’s Manual... - Page 19 DP is a display interface used to connect a video source to a display device such as a computer monitor or a television set. WiFi External Antenna Spared hole on the casing for connecting WiFi external antenna 3G External Antenna Spared hole on the casing for connecting 3G external antenna KUBE-8090 User’s Manual...
-
Page 20: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Dimension: 279.75 x 68.7 x 153.2 mm (W x H x D) Figure 3 Mechanical Dimensions KUBE-8090 User’s Manual... -
Page 21: Chapter 2 Getting Started
Figure 4 Connect the DP/DVI-I /HDMI cable NOTE When the system reboots without connecting the DVI, there might be no image on screen when you insert the DVI cable. Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen. KUBE-8090 User’s Manual... -
Page 22: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your KUBE-8090 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. 4xUSB 3.0 eSATA/USB2.0 USB 2.0 Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 23: Figure 7 Com Ports
Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ RI / +5V* NA / +5V* NA / +5V* NA / +5V* COM2 RS-232 / 422 / 485 Port DB-9 Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ KUBE-8090 User’s Manual... -
Page 24: Figure 8 Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the KUBE-8090 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power button on the front panel to turn on the system... -
Page 25: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. KUBE-8090 User’s Manual... -
Page 26: Main Menu
F1: General Help F2: Previous Values Total Size 1024 MB (DDR3) F3: Optimized Defaults Frequency 1333 MHz F4 Save & Exit System date [Wed 08/29/2012] ESC Exit System time [09:43:19] Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. KUBE-8090 User’s Manual... -
Page 27: Advanced Menu
Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled KUBE-8090 User’s Manual... -
Page 28: Table 4 Advanced Menu - Display Configuration
DVMT Pre-Allocated Options:32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M, 1024M DVMT Total Gfx Mem Options: 128M, 256M, MAX IGFX – Boot Type Options: VBIOS Default, CRT, DVI, HDMI, DP KUBE-8090 User’s Manual... -
Page 29: Table 5 Advanced Menu -Power Management Configuration
Options: Power Off, Power On, Last State Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled EUP Power Saving Mode Options: Disabled, Enabled Watchdog Timer Configuration [Disabled] WDT Function ■ Options: Disabled, Enabled KUBE-8090 User’s Manual... -
Page 30: Table 6 Advanced Menu -Cpu Advanced Configuration
Options: Disabled, Enabled Hyper Threading Options: Disabled, Enabled VT-d Options: Disabled, Enabled Active Processor Cores Options: All, 1, 2, 3 Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel ® Virtualization Tech Options: Disabled, Enabled KUBE-8090 User’s Manual... -
Page 31: Table 7 Advanced Menu -Trusted Computing
+- Change Opt. F1: General Help F2: Previous Values Current Status Information F3: Optimized Defaults SUPPORT TURNED OFF F4 Save & Exit ESC Exit Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. Security Device Support Options: Disabled, Enabled KUBE-8090 User’s Manual... -
Page 32: Table 8 Advanced Menu -Sata Configuration
Options: IDE, AHCI SATA Controller Speed Options: Gen 1, Gen 2, Gen 3 Port Options: Disabled, Enabled SATA Device Type Options: Hard Disk Driver, Solid State Driver Hot Plug Options: Disabled, Enabled External SATA Options: Disabled, Enabled KUBE-8090 User’s Manual... -
Page 33: Table 9 Advanced Menu - Intel Rapid Start Technology
VT and VT-d support must also be enabled prior to TXT. +- Change Opt. F1: General Help Secure Mode Extensions (SMX) [Enabled] F2: Previous Values Intel TXT (LT) Support [Disabled] F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. KUBE-8090 User’s Manual... -
Page 34: Table 11 Advanced Menu -Amt Configuration
MEBx Debug Message Output Options: Disabled, Enabled Un-Configure ME Options: Disabled, Enabled AMT Wait Timer Options: 0 Disable ME Options: Disabled, Enabled Options: Disabled, Enabled Activate Remote Assistance Process Options: Disabled, Enabled USB Configure Options: Disabled, Enabled KUBE-8090 User’s Manual... -
Page 35: Table 12 Advanced Menu -Usb Configuration
Legacy USB Support Options: Disabled, Enabled, Auto USB 3.0 Support Options: Disabled, Enabled XHCI hand-off Options: Disabled, Enabled EHCI hand-off Options: Disabled, Enabled XHCI Pre-Boot Driver Options: Disabled, Enabled XHCI Mode Options: ,Auto, Smart Auto, Disabled, Enabled KUBE-8090 User’s Manual... -
Page 36: Table 13 Advanced Menu - Super Io Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port1 Type Options: RS232, RS422, RS485 COM1 Pin9 Definition Options: RI, +5V KUBE-8090 User’s Manual... -
Page 37: Table 15 Advanced Menu -Super Io Configuration - Serial Port
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Device Mode Options: Standard Serial Port Mode, IrDA functions, active pulse is 1.6us, IrDA function, active pulse is 3/16 bit time. Serial Port 2 Type Options: RS232, RS422, RS485 COM2 Pin9 Definition Options: RI, +5V KUBE-8090 User’s Manual... -
Page 38: Table 16 Advanced Menu -Super Io Configuration - Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port Type Options: RS232, RS422, RS485 KUBE-8090 User’s Manual... -
Page 39: Table 17 Advanced Menu -H/W Monitor
S e c u r i t y S a v e & E x i t A d v a n c e d ISCT Configuration [Disabled] Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. ISCT Configuration Options: Disabled, Enabled KUBE-8090 User’s Manual... -
Page 40: Boot Menu
F1: General Help Boot Option Priorities F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off KUBE-8090 User’s Manual... -
Page 41: Security Menu
F2: Previous Values The password length must be in the following range: F3: Optimized Defaults Minimum Length F4 Save & Exit Maximum length ESC Exit Administrator Password User Password Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. KUBE-8090 User’s Manual... -
Page 42: Save & Exit Menu
↑↓ Select Item Save Options Enter: Select Save Changes +- Change Opt. Discard Changes F1: General Help Restore Defaults F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1227. Copyright (C) 2010, American Megatrends, Inc. KUBE-8090 User’s Manual... - Page 43 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KUBE-8090 User’s Manual...
-
Page 44: Chapter 4 Driver Installation
Chapter 4 Chapter 4 Driver Installation If your KUBE-8090 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
