Rear Panel
Ethernet
The eight-pin RJ45 LAN port supports a standard Ethernet cable for connection
to a local network.
DC Jack / 2-pin Phoenix Connector
The supplied power adapter converts AC power to DC for use with this DC jack
or Phoenix connector depending on ordered configuration. Power supplied
through this jack / connector supplies power to the PC. To prevent damage to
the PC, always use the supplied power adapter.
Kensington Lock Slot
The slot is used for attaching a lock-and-cable apparatus. Locks are generally
secured in place with a key or combination lock attached to a rubberized metal
cable.
HDMI
HDMI connector for display output.
DP
DP is a display interface used to connect a video source to a display device
such as a computer monitor or a television set.
COM
D-Sub 9 pin connector for RS-232/422/485 connection.
QDSP-400 Series User's Manual

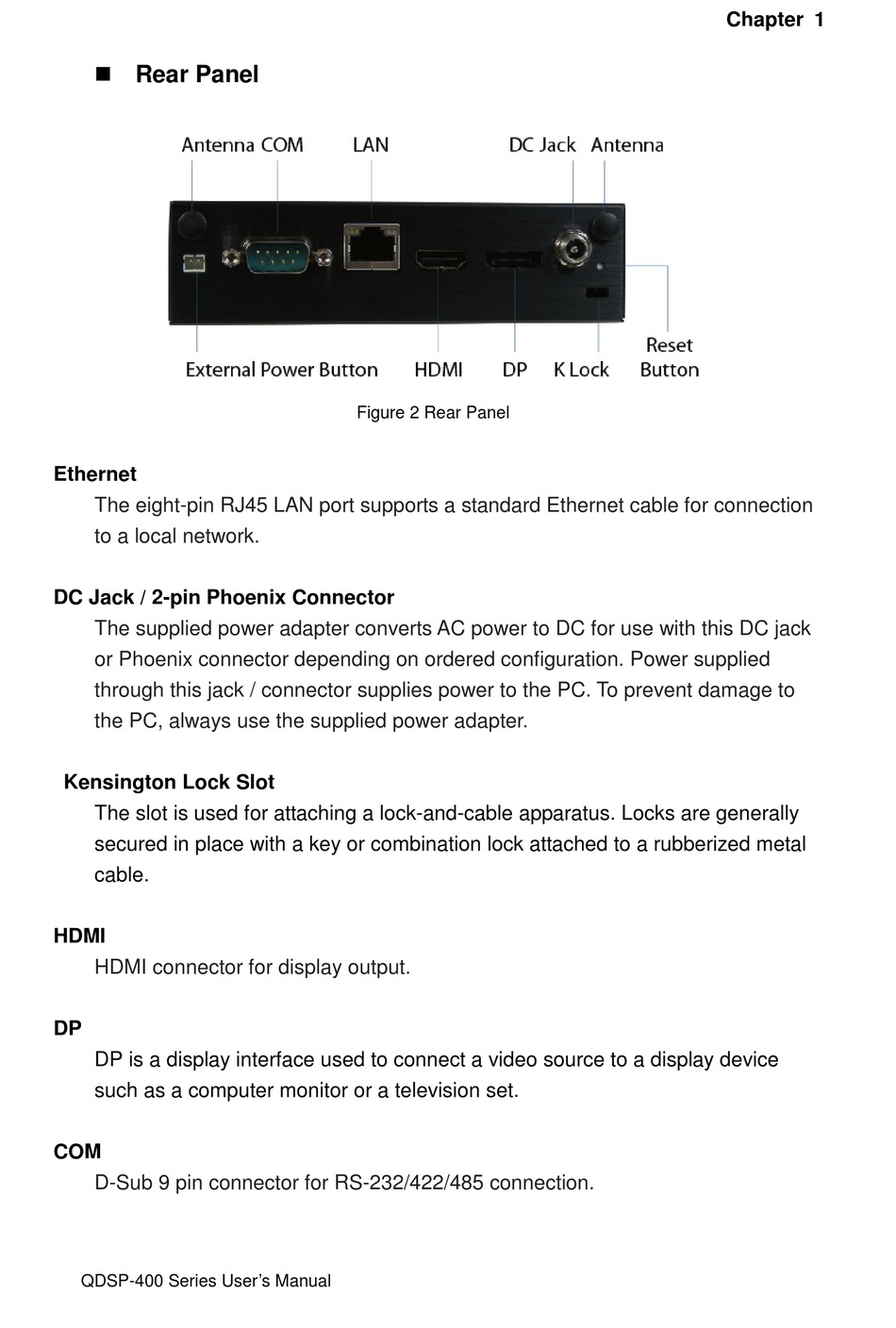

Figure 2 Rear Panel
Chapter 1
