Love Shelf
Assembly and Mounting Instructions

Parts Included:

(1) Shelf-LO

Hardware Included:

(A) Machine Screw – 5 pcs

Tools required for mounting (Not included):

Phillips Screwdriver, Level, Pencil, Stud Finder, Tape

Assembling Instructions:

1)
Position the three shelf sections horizontally
on the floor so that the front of each faces up
and so that the Sections spell the word
"LOVE."
2)
Align the three pre-drilled holes of Shelf "V"
with the threaded holes of Shelf- "LO" and
then secure the "LO" Shelf Section to the "V"
Shelf Section using three of the provided five
machine screws. Insert a screw into each
open hole of the "V" Shelf Section and tighten
each screw clockwise using a screwdriver.

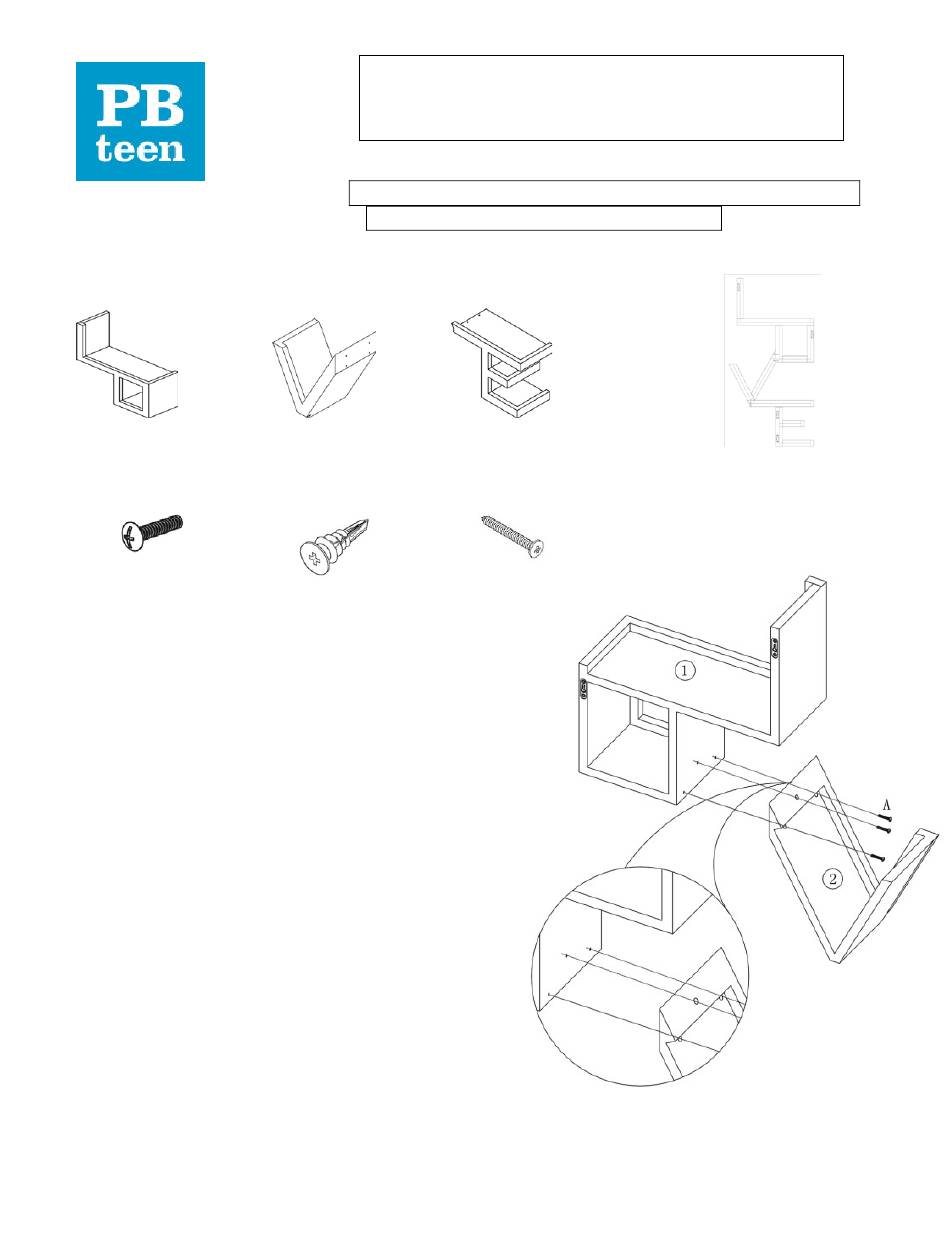

(See Figure 1)
3)
Apply Step (2) to secure the "E" Shelf Section
to the "LOV" assembled section. Align the
TWO holes of the "E" Section to the TWO
threaded holes of the "V" Section. Use the
remaining two machine screws (A) and a screwdriver to secure a screw into each open
hole. As before, rotate each screw clockwise until tight. (See Figure 2)
The hardware included is meant for drywall or wall stud mounting.
If your walls are concrete, brick or plaster, we recommend that
you consult your local hardware store to determine the proper
hardware for your wall type.
NOTE: Maximum total weight capacity for this product is 75 lbs.
Do not mount this item above a crib or bed.
(2)
Shelf-V
(B) Anchors - 4 pcs
(3) Shelf-E
(C)
Stud Mounting
Screws - 4 pcs
(D) Wall Hanging
paper template – 1pc
