Extron electronics RAC 104 User Manual
  1. Manuals
  2. Brands
  3. Extron electronics Manuals
  4. Controller
  5. RAC 104
  6. User manual

Extron electronics RAC 104 User Manual

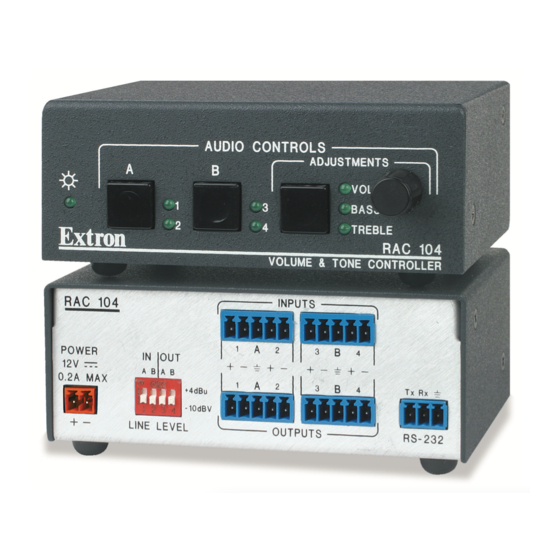

Remote volume and tone controller
Hide thumbs Also See for RAC 104:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
im Vertrieb von
Extron Electronics, USA
Extron Electronics, Europe
1230 South Lewis Street
Beeldschermweg 6C
Anaheim, CA 92805
3821 AH Amersfoort
USA
The Netherlands
714.491.1500
+31.33.453.4040
www.extron.com
Fax 714.491.1517
Fax +31.33.453.4050
www.camboard.de
© 2004 Extron Electronics. All rights reserved.
CAMBOARD Electronics
Extron Electronics, Asia
Extron Electronics, Japan
135 Joo Seng Road, #04-01
Daisan DMJ Building 6F
PM Industrial Building
3-9-1 Kudan Minami
Singapore 368363
Chiyoda-ku, Tokyo 102-0074 Japan
+65.6383.4400
+81.3.3511.7655
Fax +65.6383.4664
Fax +81.3.3511.7656
Tel. 07131 911201
Fax 07131 911203
User's Manual
Remote Volume and Tone Controller
ce-info@camboard.de
RAC 104
68-782-01 Rev. B
Printed in the USA
06 04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAC 104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics RAC 104

Summary of Contents for Extron electronics RAC 104

  • Page 1 Printed in the USA The Netherlands Singapore 368363 Chiyoda-ku, Tokyo 102-0074 Japan 714.491.1500 +31.33.453.4040 +65.6383.4400 +81.3.3511.7655 06 04 www.extron.com Fax 714.491.1517 Fax +31.33.453.4050 Fax +65.6383.4664 Fax +81.3.3511.7656 www.camboard.de Tel. 07131 911201 ce-info@camboard.de © 2004 Extron Electronics. All rights reserved. Fax 07131 911203...
  • Page 2 Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal particular use. In no event will Extron Electronics be liable for direct, indirect, or Precaucion calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/...
  • Page 3 Vertrieb von CAMBOARD Electronics Quick Start Guide — RAC 104 To install and set up the RAC 104 remote volume and tone controller, follow these steps and see the appropriate section of this manual for details: Step 1 Turn all of the equipment off and disconnect the power cords.

  • Page 4: Table Of Contents

    Step 4 Chapter 1 • Introduction ............1-1 If the RAC 104 is to be connected to a computer or host controller for About the RAC 104 ............... 1-2 remote control, connect the host’s RS-232 cable to the RAC 104’s Features ..................

  • Page 5: Chapter 1 • Introduction

    All trademarks mentioned in this manual are the properties of their respective owners. RAC 104 68-782-01 Rev. B Printed in the USA 06 04 Chapter One Introduction About the RAC 104 Features www.camboard.de Tel. 07131 911201 ce-info@camboard.de RAC 104 • Table of Contents Fax 07131 911203...

  • Page 6: About The Rac 104

    RS-232 connector. podium, or other furniture, or secured to a projector The four channels on the RAC 104 can be used as four discrete mount with optional brackets. mono channels or can be tied into pairs as stereo channels. All channels input and output balanced or unbalanced signals on 5-pole captive screw connectors.

  • Page 7: Chapter 2 • Installation And Operation

    Vertrieb von CAMBOARD Electronics Introduction, cont’d RAC 104 Chapter Two Installation and Operation Mounting the RAC 104 Rear Panel Features and Cabling Front Panel Controls www.camboard.de Tel. 07131 911201 ce-info@camboard.de RAC 104 • Introduction Fax 07131 911203...

  • Page 8: Mounting The Rac 104

    CAMBOARD Electronics Installation and Operation Mounting the RAC 104 The RAC 104 can be set on a table or mounted on a rack shelf, under a desk or tabletop, or on a projector mount. Tabletop use Four self-adhesive rubber feet are included with the RAC 104.

  • Page 9: Furniture Mounting

    Hold the RAC 104 with the attached brackets against the Secure the RAC 104 to a projector mount or other surface underside of the table or other furniture. Mark the by inserting the mounting bolt through the bracket’s location of the screw holes of the bracket on the mounting slotted hole, as shown below.

  • Page 10: Rear Panel Features And Cabling

    (high impedance) (high impedance) (600 ohms) supply and the RAC 104. Identify the power cord negative lead by the ridges on the side of the cord or a black heat shrink wrapping around it. Output connectors — Plug the audio output devices into these two 5-pole captive screw connectors.

  • Page 11: Front Panel Controls

    (See chapter 3 for instructions on setting volume and tone limits.) Power LED — Lights to indicate that the RAC 104 is on. The volume adjustment is speed sensitive. Turn the knob Channel selector buttons and LEDs — The RAC 104 has two...

  • Page 12: Resetting The Rac 104

    (see chapter 3 for more information). Resetting the RAC 104 To return the RAC 104 to its default settings, press and hold the adjustment selector button for 10 seconds. All the LEDs will light and then turn off. The default settings are:...

  • Page 13: Simple Instruction Set

    Extron Windows-based control program. that it is valid, it performs the command and sends a response The RS-232 connector on the RAC 104 is a 3-pole captive screw to the host device. If the controller is unable to perform the...
  • Page 14 Input B Output A Off Output B Off Off = -10 dBV (unbalanced, consumer level) On = +4 dBu (balanced, pro level) www.camboard.de Tel. 07131 911201 ce-info@camboard.de RAC 104 • Remote Control RAC 104 • Remote Control Fax 07131 911203...
  • Page 15 Vertrieb von CAMBOARD Electronics Remote Control, cont’d www.camboard.de Tel. 07131 911201 ce-info@camboard.de RAC 104 • Remote Control RAC 104 • Remote Control Fax 07131 911203...
  • Page 16 Vertrieb von CAMBOARD Electronics Remote Control, cont’d www.camboard.de Tel. 07131 911201 ce-info@camboard.de RAC 104 • Remote Control RAC 104 • Remote Control Fax 07131 911203...

  • Page 17: Windows-Based Program Control

    Features and Cabling in chapter 2 for more information. ME, and Windows 2000 and provides remote control of the volume, gain, and tone adjustment, and other RAC 104 features. Updates to this program can be downloaded from the Extron Web site (http://www.extron.com).

  • Page 18: Using The Help System

    • When the user ties a muted channel to a channel that is not Web site and click Open. The Firmware Loader loads the muted, the RAC 104 unmutes the muted channel update. automatically. The RAC 104’s front panel LEDs flash intermittently during the loading process.

  • Page 19: Appendix A • Specifications , Part Numbers

    Vertrieb von CAMBOARD Electronics Remote Control, cont’d RAC 104 A ppendix A Specifications, Part Numbers, and Accessories Specifications Included Parts Accessories www.camboard.de Tel. 07131 911201 ce-info@camboard.de RAC 104 • Remote Control 3-14 Fax 07131 911203...
  • Page 20 Vibration ........ISTA 1A in carton (International Safe Input gain adjustment ....–12 dB to +12 dB Transit Association) Listings .......... UL, CUL www.camboard.de Tel. 07131 911201 ce-info@camboard.de RAC 104 • Specifications, Part Numbers, and Accessories RAC 104 • Specifications, Part Numbers, and Accessories Fax 07131 911203...
  • Page 21 Warranty ........3 years parts and labor All nominal levels are at ±10%. Specifications are subject to change without notice. Included Parts These items are included in each order for an RAC 104: Included parts Replacement Part number RAC 104 60-561-01 12VDC, 1.0 A external power supply...
